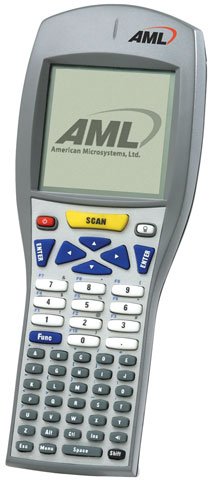

AML M7100-0401-00 Mobile Handheld Computer

AML M7100 - Terminal Kit with 802.11b, advanced long range laser scanner, 32MB/16MB memory, VT100/220/TN5250, wireless

Full specifications (PDF)

Designed for Maximum Flexibility
The AML M7100 is richly configured with advanced features to optimize operational efficiency and productivity -- ensuring the rapid, timely processing of mission critical data, even in the most demanding applications. Powered by the fast Intel StrongARM processor, the M7100 is equipped with 16MB of built-in RAM and 4MB Flash ROM for ample storage capacity. Its internal radio supports IEEE 802.11b wireless local area network (WLAN) connectivity for real-time, high-rate data transfer between wireless operators and host applications (optional wireless wide area network GSM/GPRS connectivity for route accounting, delivery, and other field service applications). Extended operation is ensured by the M7100's enhanced power management, which supports eight-hour work shifts without recharging.

Technical Information

  • Operating System: Linux Embedded
  • Processor: Intel StrongArm SA1110 133MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • EAP-PEAP
    • EAP-TLS
    • EAP-TTLS
    • PSK-TKIP
  • Scanner Type: Laser Advanced Long Range
  • Symbologies Supported:
    • Code 39
    • UPC
    • EAN
    • Interleaved 2 of 5
    • Codabar
    • Code 128
    • Code 93
    • Code 11
    • UPC/EAN Supplementals

General Information

Physical Characteristics

  • Display: Grayscale Backlight - LCD
  • Display Resolution: 160 x 160
  • Keyboard: 55 Key Alphanumeric Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.5" (89mm) x 8.875" (225mm) x 2.25" (57mm)
  • Weight: 18.5 oz

Environmental Conditions

  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -25°C (-13°F) to 50°C (122°F) Storage
  • Humidity: 5 to 90% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-4kVdc Contact Discharge
  • Drop Spec: 5' To Concrete


  • Additional Information:
    • IrDA
    • RS-232
    • VT100/220/TN5250
  • Package Contents:
    • M7100 Handheld Terminal Battery Documentation CD
    • M7100 Handheld TerminalBatteryDocumentation CD

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 17dBm
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz

Agency Approvals

  • Agency Approvals:
    • FCC Part 15 Class A
    • CDRH Class II
    • IEC Class 2
    • Mexico NOM/NYCE - NOM 019 SCFI


  • RAM Memory: 32MB
  • Flash Memory: 16MB


  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Brand AML
Model M7100
RAM Memory 32 MB
Display Resolution 160 x 160
Operating System Linux
Scanner Type Laser
Data Collection Type Wireless

The AML M7100-0401-00 is also known as American Microsystems M7100-0401-00 or M7100040100 .
