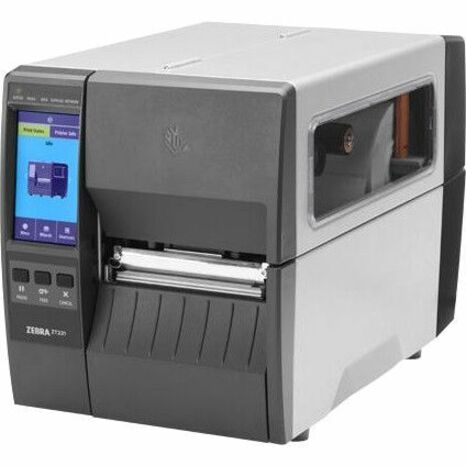

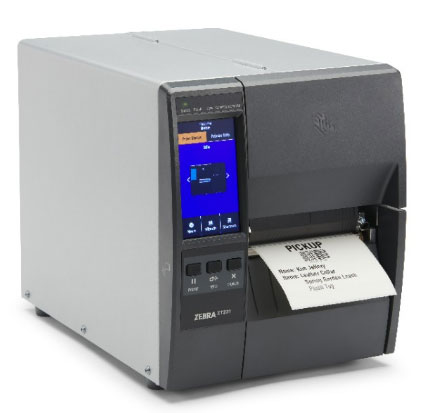

Zebra ZT23142-D01000FZ Barcode Label Printer

Zebra ZT231 - Industrial Printers, Zebra ZT231, Direct Thermal Printer, 4, 203 dpi, Direct Thermal, Tear, US Cord, USB, Serial, Ethernet, BTLE, USB Host, EZPL
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Ethernet, USB, USB Host, Serial, BTLE
Print Resolution
203 dpi
Printer Options
Tear Bar
Max Print Width
4 inch
Label Core Size
3 inch
  • Print methods: direct-thermal or thermal-transfer
  • Construction: metal frame and metal enclosures
  • Bi-fold media door with large clear window
  • Side-loading supplies path for simplified media and ribbon loading
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Three-color LEDs for quick printer status
  • 4.3" color resistive touch screen with intuitive menu for quick operation and settings
  • Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
  • ENERGY STAR® certified
  • Bluetooth Low Energy (BTLE) technology for enhanced location precision
Read More
$936.47
In Stock
Recommended TrueSupport Coverage (/mo.)
Quantity Unit Price Discount
2 $927.01 1% OFF
5 $908.28 3% OFF
Add to Quote

Frequently Bought Together

#1
Zebra ZT23142-D01000FZ Barcode Label Printer

Zebra ZT23142-D01000FZ Barcode Label Printer

(ZT23142-D01000FZ)
$936.47
Zebra ZT231 Barcode Label Printer Model Overview
The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Zebra's latest Industrial printer offers fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more. Plus, The ZT231 comes with optional capabilities like RFID, wireless connectivity and media handling features when you need them. Zebra's robust, ever growing Print DNA software suite allows for easy configuration, troubleshooting and management of your printer fleet  onsite or remotely via a web-based dashboard. With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. The ZT231's easy-to-use 4.3' full-color touchscreen allows your to easily adjust your settings and  make changes with the touch of a finger or gloved hand.
Zebra ZT23142-D01000FZ Barcode Label Printer Overview

Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up - without interruption? The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more - all in one space-saving footprint. Plus, add optional capabilities like RFID*, wireless connectivity and media handling features when you need them. But that's not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That's how Zebra defines value.

GET MORE VALUE WITH ZEBRA | Simple Operation with Smart Features

Reduce training time with the ZT231's easy-to-use 4.3" full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code.

Make It Easy for Your IT Team

Take advantage of Zebra's robust, ever growing Print DNA software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.

The Smart Choice Now and Later

The benefits of buying a ZT231 don't end at the point of purchase. Expand your printer's capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID* encoding.

BUILT TO PERFORM. ENGINEERED TO ENDURE. | Don't Compromise on Quality

With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you're backed by Zebra, the #1 leader in barcode printing.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
13.08 ft
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39C
  • Code 93
  • Code 128 (A/B/C)
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • EAN-8
  • UPC-E
  • EAN-13
  • UPC-A with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • Codabar
  • MSI
  • Planet Code
  • AZTEC
  • Codablock
  • PDF417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF-417
  • TLC 39
  • RSS-14
  • RSS Composite
Real Time Clock:
Yes
Application/Usage:
  • Manufacturing
  • Transportation & Logistic
  • Healthcare
  • Retail
Features:
Tear Up
Memory
Standard Memory:
256 MB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Screen Size:
4.3"
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Continuous Label
  • Label
  • Die-cut Label
  • Notch
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
7.99"
Maximum Label Width:
4.49"
Fonts & Emulation
Language Emulation:
  • ZBI 2.0
  • ZPL II
  • ZPL
  • EPL
  • EPL2
Power Description
Power Source:
AC Supply
Frequency:
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature:
32°F (0°C) - 105°F (40.6°C)
Operating Relative Humidity:
20% - 85%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
5% - 85%
Physical Characteristics
Height:
11"
Width:
9.5"
Depth:
17"
Weight (Approximate):
20 lb
Miscellaneous
Power Cable Localization:
US
Platform Supported:
PC
Certifications & Standards:
  • IEC 62368-1
  • EN55022 Class B
  • EN55024
  • EN55035
  • EN61000-3-2
  • EN61000-3-3
  • FCC Class B
  • ICES-003
  • FCC 15.209
  • 15.247(d)
  • IC RSS 247
  • EN 300 328
  • EN 301 893
  • EN 62311
  • cTUVus
  • CE Marking
  • UKCA
  • VCCI
  • RCM
  • S- Mark
  • CCC
  • CU EAC
  • BSMI
  • KCC
  • BIS
Energy Star:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZT23142-D01000FZ Barcode Label Printer is also known as ZEB-ZT23142D01000FZ or ZT23142D01000FZ.
