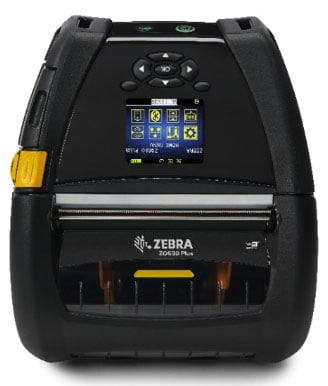

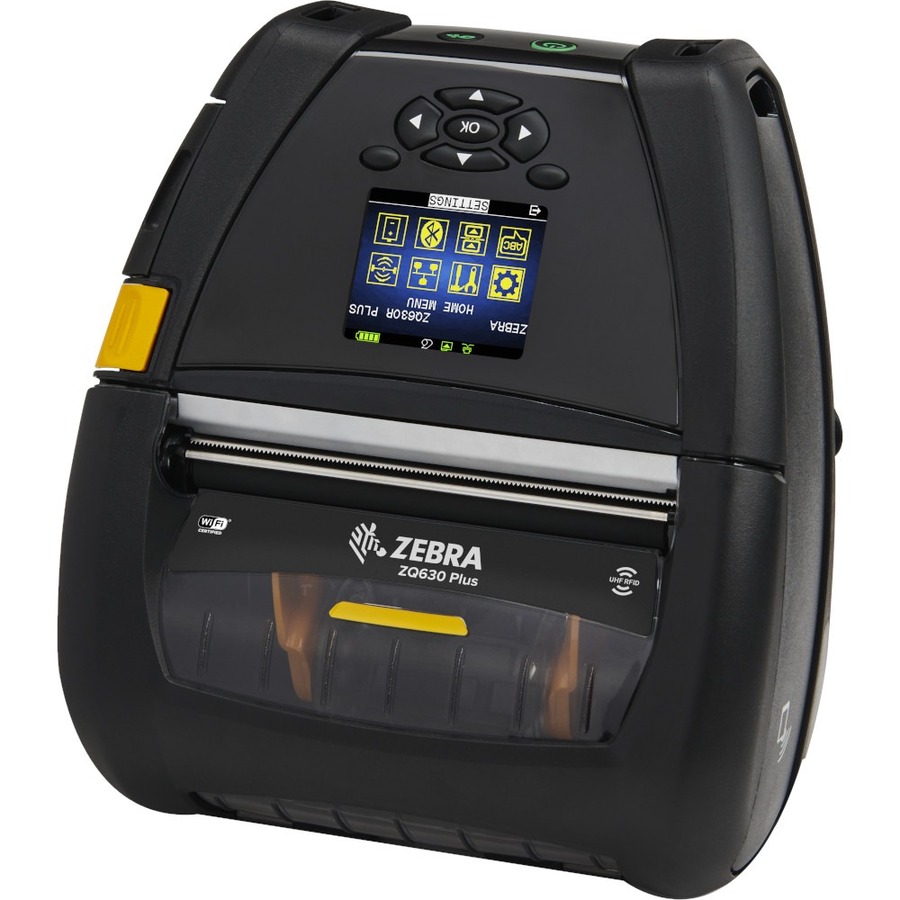

Zebra ZQ63-AUWB004-00 Barcode Label Printer

Zebra ZQ630 Plus - Mobile Printers, Zebra ZQ630 Plus, Direct Thermal Printer, English Fonts, Dual Wi-Fi / BT4.x, Linerless Platen, 1.375 Core, Group 0, Belt Clip
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Bluetooth, Wi-Fi
Print Resolution
203 dpi
Printer Options
Linerless Platen
Max Print Width
4 inch
Label Core Size
1.375 inch
  • Apple® iOS, Android™ and Windows® Mobile connectivity
  • Direct thermal printing of barcodes, text and graphics
  • CPCL, EPL™ and ZPL® programming languages
  • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
Read More

Need a different version? See all Zebra ZQ630 Plus Barcode Label Printers

$1,152.75
In Stock
Recommended TrueSupport Coverage (/mo.)
Quantity Unit Price Discount
2 $1,141.22 1% OFF
5 $1,118.17 3% OFF
Add to Quote
Add to My Shopping List Add to Compare
Zebra ZQ63-AUWB004-00 Barcode Label Printer
Zebra ZQ63-AUWB004-00 Barcode Label Printer Zebra ZQ63-AUWB004-00 Barcode Label Printer Zebra ZQ63-AUWB004-00 Barcode Label Printer Zebra ZQ63-AUWB004-00 Barcode Label Printer
Zebra ZQ63-AUWB004-00 Barcode Label Printer
Zebra ZQ63-AUWB004-00 Barcode Label Printer
Zebra ZQ63-AUWB004-00 Barcode Label Printer
Zebra ZQ63-AUWB004-00 Barcode Label Printer

Frequently Bought Together

Full specifications (PDF)
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4.53 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
32.01"
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar (NW-7)
  • Interleaved 2 of 5
  • UPC-A
  • UPC E with 2 and 5 add on
  • EAN-8
  • EAN-13
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • AZTEC
  • MSI PLESSEY
  • FIM
  • POSTNET
  • Data Matrix
  • TLC 39
  • 2 and 5 Digits Add-on
Application/Usage:
  • Desktop
  • Industrial
  • Mobile
Features:
  • Belt Clip
  • Shoulder Strap
  • Dust Resistant
  • Water Resistant
Mobile Device Printing:
Yes
Ingress Protection (IP) Rating:
IP54
Character Sets:
  • Universal Font Scaling Technology (UFST)
  • Agfa Monotype
Connectivity Technology:
Wireless
Optional Connectivity:
  • Serial (RS-232)
  • USB
  • Ethernet
Memory
Standard Memory:
256 MB
Network & Communication
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ac
Near Field Communication (NFC):
Yes
Display & Graphics
Display Screen:
Yes
Media Types & Handling
Media Type:
  • Gap
  • Black Mark
  • Receipt
  • Label
  • Die-cut Label
  • Tag
  • Linerless
  • Black Bar
Media Sensor:
  • Black Mark Sensor
  • Gap Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.60"
Maximum Label Width:
4.40"
Maximum Label Length:
32"
Fonts & Emulation
Language Emulation:
  • CPCL
  • EPL
  • ZPL
  • ZBI 2.0
  • XML
Software
Operating System Supported:
Link-OS
Power Description
Power Source:
Battery
Battery Information
Battery Capacity:
6800 mAh
Environmental Conditions
Operating Temperature:
-4°F (-20°C) - 122°F (50°C)
Operating Relative Humidity:
10% - 90%
Storage Temperature:
-13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Height:
3.3"
Width:
6.5"
Depth:
7.4"
Weight (Approximate):
2.43 lb
Miscellaneous
Platform Supported:
  • iOS
  • Android
  • PC
Certifications & Standards:

Emissions:

  • FCC Part 15
  • Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B


Susceptibility:

  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5


Safety:

  • CE
  • TUV
  • CSA
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZQ63-AUWB004-00 Barcode Label Printer is also known as ZEB-ZQ63AUWB00400 or ZQ63AUWB00400.
