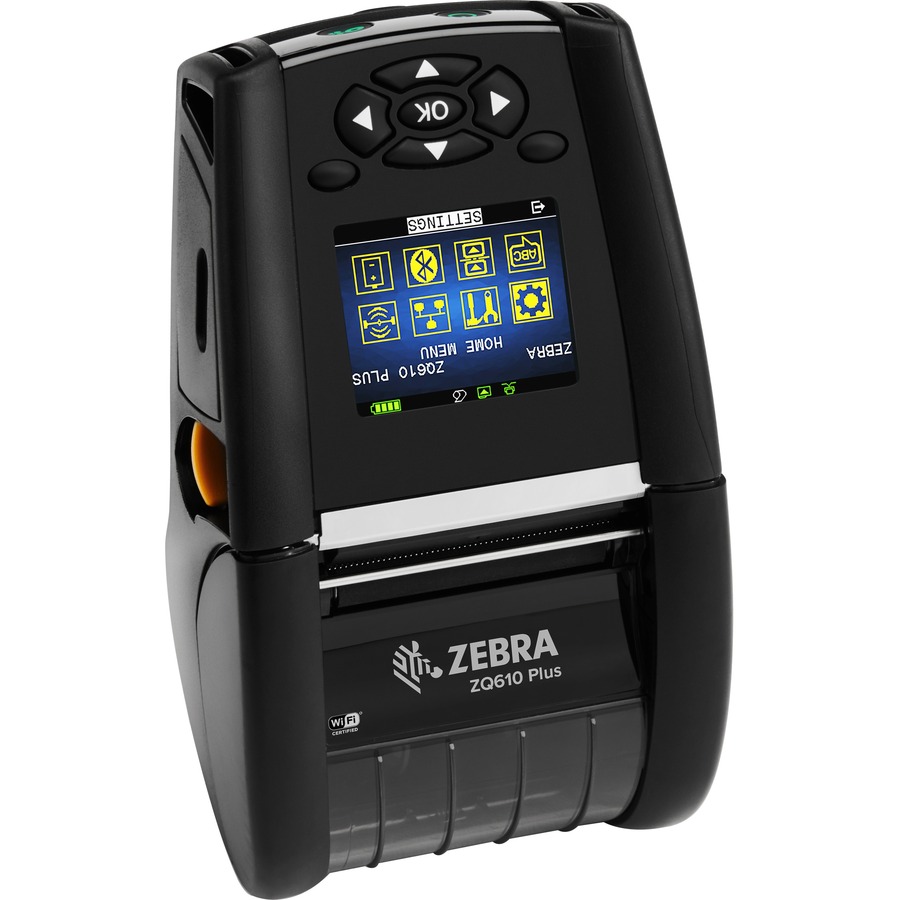

Zebra ZQ61-AUWB004-00 Barcode Label Printer

Zebra ZQ610 Plus - Mobile Printers, Zebra ZQ610 Plus, Direct Thermal Printer, 2/48mm, English/Latin Fonts, Dual Wi-Fi / BT4.x, Linerless Platen, 1.375 Core, Group 0, Belt Clip
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Bluetooth, Wi-Fi
Print Resolution
203 dpi
Printer Options
Linerless Platen
Max Print Width
2 inch
Label Core Size
1.375 inch
  • Apple® iOS, Android™ and Windows® Mobile connectivity
  • Direct thermal printing of barcodes, text and graphics
  • CPCL, EPL™ and ZPL® programming languages
  • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
Read More
$1,086.14
In Stock
Recommended TrueSupport Coverage (/mo.)
Quantity Unit Price Discount
2 $1,075.28 1% OFF
5 $1,053.56 3% OFF
Add to Quote

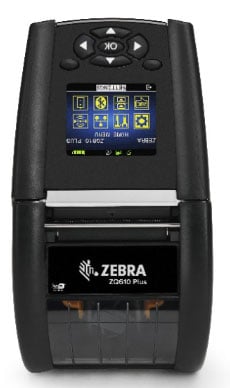

Zebra ZQ610 Plus Barcode Label Printer Model Overview
The ZQ610 Plus improves Zebra''s well-liked QLn platform by incorporating cutting-edge technology and creative design that raises productivity, usability, and management to new heights. A sizable color display eliminates all uncertainty regarding printer status. The longest shift is powered by higher battery capacity and advanced battery technology. Because of its rapid wake-up capability, the ZQ610 Plus never stops working. The ZQ610 Plus is simpler for your IT staff to integrate, manage, set up, and protect while giving your employees the quickest, most stable wireless connections inside of a building. The latest development in the industry-recognized gold standard for mobile label and receipt printing is the ZQ610/ZQ610 Plus. The printer features a 1.9" maximum print width, 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery, 1" media width, and 2.2" maximum media roll size.
Zebra ZQ61-AUWB004-00 Barcode Label Printer Overview
Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, setup and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.

Premium Features for Maximum Productivity

The Latest Wireless Connections

The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Instant Wake-Up Over Wi-Fi

This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

The ZQ600/ZQ600 Plus Series provides a large display, userfriendly interface and easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.

Business Tough-Built for All-Day Every Day Enterprise Use

While the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it longlasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

Unsurpassed Battery Power Management

Do More on a Single Charge

With the ZQ600/ZQ600 Plus Series' high-capacity 3250 mAH (ZQ610 and ZQ610 Plus / ZQ620 and ZQ620 Plus) and 6800 mAH (ZQ630 and ZQ630 Plus) battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4.53 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
32.01"
Maximum Print Width:
1.89"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar (NW-7)
  • Interleaved 2 of 5
  • UPC-A
  • UPC E with 2 and 5 add on
  • EAN-8
  • EAN-13
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • AZTEC
  • MSI PLESSEY
  • FIM
  • POSTNET
  • Data Matrix
  • TLC 39
  • 2 and 5 Digits Add-on
Application/Usage:
  • Desktop
  • Industrial
  • Mobile
Features:
  • Belt Clip
  • Shoulder Strap
  • Dust Resistant
  • Water Resistant
Mobile Device Printing:
Yes
Ingress Protection (IP) Rating:
IP54
Character Sets:
  • Universal Font Scaling Technology (UFST)
  • Agfa Monotype
Optional Connectivity:
  • Serial (RS-232)
  • USB
  • Ethernet
Memory
Standard Memory:
256 MB
Network & Communication
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ac
Near Field Communication (NFC):
Yes
Display & Graphics
Display Screen:
Yes
Media Types & Handling
Media Type:
  • Gap
  • Black Mark
  • Receipt
  • Label
  • Die-cut Label
  • Tag
  • Linered Media
  • Black Bar
Media Sensor:
  • Black Mark Sensor
  • Gap Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.20"
Maximum Label Width:
2.18"
Maximum Label Length:
32"
Fonts & Emulation
Language Emulation:
  • CPCL
  • EPL
  • ZPL
  • ZBI 2.0
Software
Operating System Supported:
Link-OS
Power Description
Power Source:
Battery
Battery Information
Battery Capacity:
3250 mAh
Environmental Conditions
Operating Temperature:
-4°F (-20°C) - 122°F (50°C)
Operating Relative Humidity:
10% - 90%
Storage Temperature:
-13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Height:
2.9"
Width:
3.6"
Depth:
6.7"
Weight (Approximate):
1.32 lb
Miscellaneous
Platform Supported:
  • iOS
  • Android
  • PC
Certifications & Standards:

Emissions:

  • FCC Part 15
  • Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B


Susceptibility:

  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5


Safety:

  • CE
  • TUV
  • CSA
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZQ61-AUWB004-00 Barcode Label Printer is also known as ZEB-ZQ61AUWB00400 or ZQ61AUWB00400.
