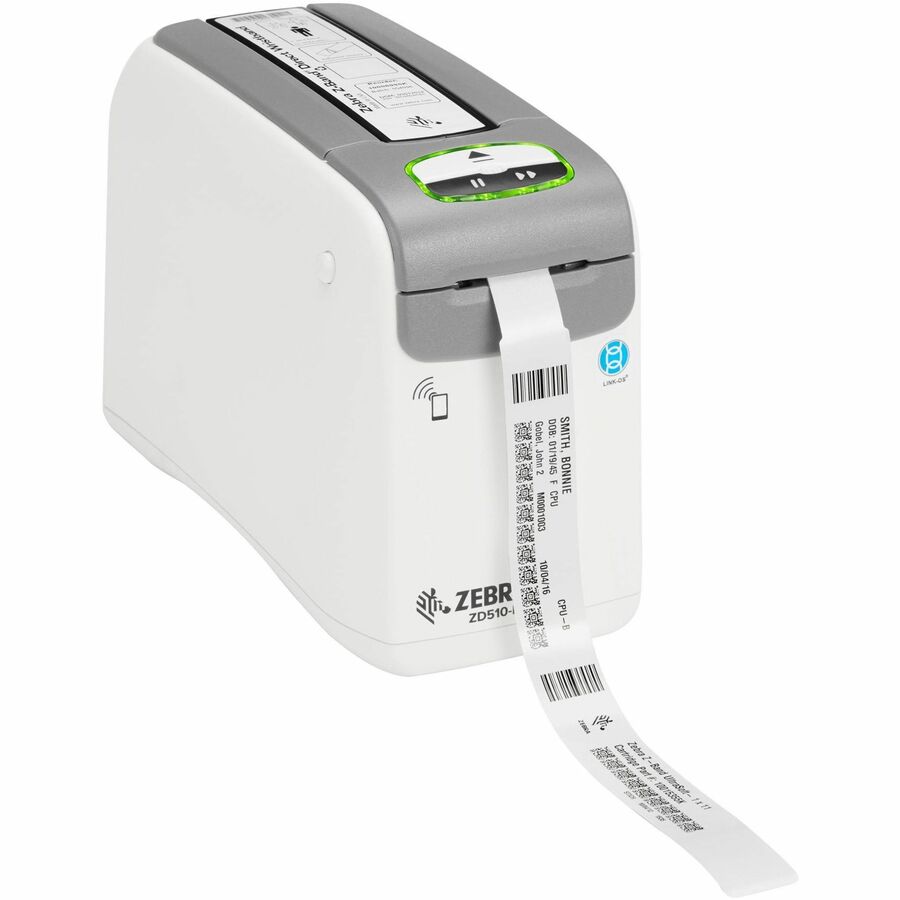

The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market—Zebra's Z-Band® wristbands.
Key Features:
- Just insert the Zebra Z-Band wristband cartridge and print.
- The smartchip in each cartridge allows automatic calibration.
- The ZD510-HC instantly identifies the wristband size and automatically configures darkness and speed settings for optimal print quality and wristband durability.
- The ZD510-HC accommodates Zebra’s entire line of white and color Z-Band wristbands. Z-Bands are available in a variety of sizes, from infant to adult, with both adhesive or clip closures. Z-Bands are resistant to hand sanitizers and are non-irritating.
- Barcodes on Z-Band wristbands are proven to withstand water, soap, foams, alcohol and other common solvents found in healthcare. Independent laboratory testing showed that Z-Bands were two to six times more durable than leading competitors after repeated exposure to common hand sanitizers.
Wristbands play a critical role in your healthcare facility. Staff and patients count on wristbands to provide the instant positive identification required to prevent medical errors. You need dependable and fast wristband printing, durable wristbands and consistently scannable barcodes — and with the ZD510-HC, you get it all. The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market — Zebra’s Z-Band® wristbands. Your IT department will find ZD510-HC printers easy to integrate, manage and secure, thanks to Zebra’s Link-OS® operating system and Zebra’s powerful Print DNA suite of applications, utilities and developer tools. Increase staff productivity and patient safety with the industry’s easiest to use and most dependable wristband printing solution — the ZD510-HC.
Fast-Loading Wristband Cartridge — Pop it in and Print
The ZD510-HC is the easiest wristband printer to use on the market. Just insert the wristband cartridge containing Zebra Z-Band wristbands and print. The smartchip in each cartridge allows automatic calibration.
Multiple Connectivity Options
The ZD510-HC comes standard with Ethernet, USB, USB Host, and Bluetooth Low Energy. The optional dual wireless radio offers 802.11ac and latest security protocols, plus Bluetooth 4.1 with concurrent wired and wireless communications. In addition, with the Print Touch tag (NFC), users can simply tap a compatible mobile device on the ZD510-HC to pair and print — as well as instantly access Zebra’s extensive knowledge base of how-to videos.
Compatible with Leading ADT Systems
The ZD510-HC is validated for use with leading Admission, Discharge and Transfer (ADT) systems, including Allscripts, CareFusion, Cerner, CPSI, Epic and McKesson. You can easily get up and running using their wristband formats.
Easy Migration — No Matter What Kind of Wristband Printing Solution You Have Today
If you use the Zebra HC100 wristband printer, your existing inventory of wristband cartridges will work with the ZD510-HC. Native ZPL support makes it easy to migrate from another Zebra desktop printer. And migration from practically any third party printer is seamless with Virtual Devices, a Zebra Print DNA tool that can use languages normally associated with other printer brands.
Consistently Exceptional Quality
A barcode that fails to scan jeopardizes patient safety and staff productivity. That’s why we design, produce and rigorously pre-test our own line of Z-Band direct thermal wristbands. You get optimum image durability and scanning performance — ensuring first-scan readability even for narrow barcodes.
Up to Six Times More Durable Than Other Wristbands
Barcodes on Z-Band wristbands are proven to withstand water, alcohol and other common solvents found in healthcare. Independent laboratory testing showed that Z-Bands were two to six times more durable than leading competitors after repeated exposure to common hand sanitizers. And that Z-Band barcodes will remain scannable for longer than the average patient stay
Wide Range of Wristband Colors and Sizes
The ZD510-HC accommodates Zebra’s entire line of white and color Z-Band wristbands. Z-Bands are available in a variety of sizes, with both adhesive or clip closures. Z-Bands are resistant to hand sanitizers and are non-irritating. You can ensure the comfort of patients with the most sensitive skin with Z-Band UltraSoft, one of the softest wristbands in the market. And Z-Bands have been determined to be MR-Safe and do not appear to present an additional hazard to patients undergoing MRI procedures.
Easy to Clean and Sanitize
The ZD510-HC printer’s disinfectant-ready UV-resistant housing is designed to handle regular sanitizing with harsh chemicals and UV light, helping to increase patient safety
Medical Grade Power Supply
The ZD510-HC’s power supply is IEC 60601-1 compliant for use in healthcare facilities.
Secure solution for HIPAA compliance
The ZD510-HC’s Direct Thermal printing technology simplifies HIPAA compliance — there’s no ribbon to secure, incinerate or shred. Advanced security and management features to help secure patient data.
Quiet Operation
The ZD510-HC’s quiet operation won’t disturb patients and other healthcare professionals.
Zebra Print DNA — Transforming Printers From the Inside
The ZD510-HC is powered by Link-OS, Zebra’s robust printer operating system, and Print DNA, a combination of productivity, management, development and visibility tools. The result is a superior printing experience through better performance, simplified remote manageability and easier integration. DNA option, you can manage one printer, a group of specific printers or all printers anywhere in the world. This browser-based solution lets you instantly discover every Link-OS printer on your network — there’s no need to manually track down, configure or troubleshoot printers.
Flexible and Simple Configuration and Management Tools
In addition to optional enterprise remote management tools, we offer a full suite of complimentary management and deployment utilities. Initial setup and configuration is simple with Zebra’s free printer setup utilities. Support for Bluetooth Low Energy allows administrators to wirelessly connect their mobile device, computer or laptop to the printer — no need for ‘direct-connect’ cables or network access.
Protect Sensitive Patient Data with PrintSecure
This complimentary Print DNA utility makes it easy to configure over 30 settings to fine-tune printer security to protect your data and your infrastructure by creating secure printer connections and blocking unauthorized printer access.
Seamless Integration with Your Device Management System
Get the simplicity of a single-pane-of-glass to manage all your Zebra mobile devices and printers — including the ZD510-HC. With Print DNA’s MDM Connectors, you can easily integrate networked ZD510- HC printers into your existing AirWatch or SOTI MobiControl device management system.
Maximize Uptime and Printer Visibility with Services
Ensure predictable performance and eliminate unbudgeted repair expenses with Zebra OneCare. You get unmatched technical support direct from Zebra, as well as comprehensive repair services, including accidental damage and defined repair turn-around times. And Zebra’s Visibility Services provide the real-time insight into printer operational information you need to increase printer availability and optimize utilization within your workflows.
Standard Features
• Quick and easy wristband cartridge loading • Automatic print speed setting-up to 4 ips depending on installed cartridge • Direct thermal printing of barcodes, text and graphics • Dual-wall frame, impact-resistant plastic • ZPL® or ZPL II® programming language • 512 MB Flash memory • 256 MB SDRAM memory • Element Energy Equalizer™ (E3™) for superior print quality • Connectivity: USB Host, Ethernet, Bluetooth Low Energy • Odometer for print-length tracking • Illuminated media low/media out indicator • Tool-less printhead and platen replacement • Unicode™-compliant for multi-language printing • Instant media calibration — no wasted media • Head-up sensor • XML-enabled printing — allows XML communications from information systems • ENERGY STAR® qualified • Link-OS • Real Time Clock
Markets and Applications
Healthcare • Patient identification Hospitality • Guest identification
Zebra ZD51013-D01E00GA Barcode Label Printer Overview
No matter what kind of wristband printing solution you have, it’s easy to upgrade to the ZD510-HC. It’s backward compatible with the HC100 and uses the same wristband cartridges. There’s native ZPL support for easy migration from Zebra desktop printers. Using another vendor’s printer? The ZD510-HC can use languages associated with other printer brands. And the ZD510-HC offers all the latest wired and wireless connectivity and is validated for use with leading ADT Systems.
Full specifications (PDF)
