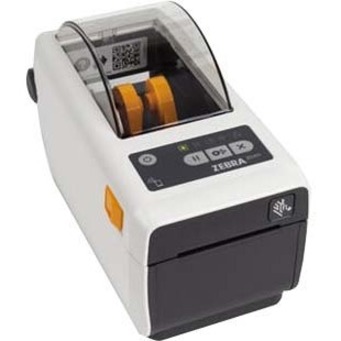

Zebra ZD4AH23-D01E00EZ Barcode Label Printer

Zebra ZD411d-HC - Desktop Printers, Zebra ZD411d-HC, Direct Thermal, Healthcare, 300 dpi, USB, USB Host, Ethernet, BTLE5, US Cord, Swiss Font, EZPL
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Ethernet, USB, USB Host, BTLE5
Print Resolution
300 dpi
Max Print Width
2 inch
Label Core Size
1 inch
  • Print methods: Direct Thermal
  • ZPL and EPL programming languages
  • 5 status icon, 3 button user interface
  • USB 2.0, USB Host
  • Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection
  • BLE is provided for use with Zebra printer setup mobile app only
  • Real Time Clock (RTC)
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR® certified
Read More

Need a different version? See all Zebra ZD411-HC Barcode Label Printers

$556.81
Recommended TrueSupport Coverage (/mo.)
Quantity Unit Price Discount
2 $551.24 1% OFF
5 $540.11 3% OFF
Add to Quote
Add to My Shopping List Add to Compare
Zebra ZD4AH23-D01E00EZ Barcode Label Printer
Zebra ZD4AH23-D01E00EZ Barcode Label Printer Zebra ZD4AH23-D01E00EZ Barcode Label Printer Zebra ZD4AH23-D01E00EZ Barcode Label Printer
Zebra ZD4AH23-D01E00EZ Barcode Label Printer
Zebra ZD4AH23-D01E00EZ Barcode Label Printer
Zebra ZD4AH23-D01E00EZ Barcode Label Printer

Frequently Bought Together

Full specifications (PDF)
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4.02 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
2.13"
Barcode Symbology Supported:
  • 1D
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • 2D
  • Codablock
  • PDF417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF
  • AZTEC
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Dual Wall Frame
  • Compact
Connectivity Technology:
Wired
Optional Connectivity:
  • Serial (RS-232)
  • Wireless LAN
Memory
Standard Memory:
256 MB
Interfaces/Ports
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
Near Field Communication (NFC):
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Tag Stock
  • Continuous Receipt
  • Continuous Paper
  • Wristband
  • Label
  • Receipt
Media Sensor:
  • Full Width Sensor
  • Moveable Reflective/Black Mark Sensor
  • Multi-position Transmissive/Gap Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
2.24"
Maximum Label Length:
39.02"
Fonts & Emulation
Language Emulation:
  • EZPL
  • ZPL
  • EPL
  • ZPL II
  • EPL II
  • XML
  • ZBI
Software
Operating System Supported:
Link - OS
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
40°F (4.4°C) - 105°F (40.6°C)
Operating Relative Humidity:
10% - 90%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
5% - 95%
Physical Characteristics
Height:
6"
Width:
4.5"
Depth:
8.6"
Weight (Approximate):
2.20 lb
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • ZD411 Direct Thermal Printer
  • AC Power Supply
  • Power Cords
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Cables Included:
  • USB
  • AC
Power Adapter Included:
Yes
Platform Supported:
  • PC
  • Android
  • iOS
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45101512
