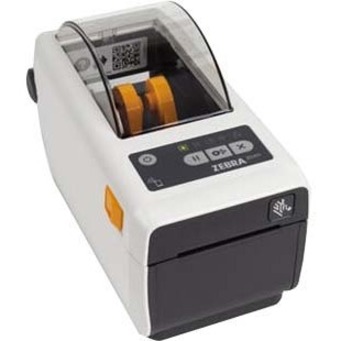

Zebra ZD4AH22-D01W01EZ Barcode Label Printer

Zebra ZD411d-HC - Desktop Printers, Zebra ZD411d-HC, Direct Thermal, Healthcare, 203 dpi, USB, USB Host, Modular Connectivity Slot, Wi-Fi, BT4, USA/Canada, US Cord, Swiss Font, EZPL
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Bluetooth, USB, USB Host, Wi-Fi, Modular Connectivity Slot
Print Resolution
203 dpi
Max Print Width
2 inch
Label Core Size
1 inch
  • Print methods: Direct Thermal
  • ZPL and EPL programming languages
  • 5 status icon, 3 button user interface
  • USB 2.0, USB Host
  • Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection
  • BLE is provided for use with Zebra printer setup mobile app only
  • Real Time Clock (RTC)
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR® certified
Read More

Need a different version? See all Zebra ZD411-HC Barcode Label Printers

$519.34
In Stock
Recommended TrueSupport Coverage (/mo.)
Quantity Unit Price Discount
2 $514.15 1% OFF
5 $503.76 3% OFF
Add to Quote
Add to My Shopping List Add to Compare
Zebra ZD4AH22-D01W01EZ Barcode Label Printer
Zebra ZD4AH22-D01W01EZ Barcode Label Printer Zebra ZD4AH22-D01W01EZ Barcode Label Printer Zebra ZD4AH22-D01W01EZ Barcode Label Printer
Zebra ZD4AH22-D01W01EZ Barcode Label Printer
Zebra ZD4AH22-D01W01EZ Barcode Label Printer
Zebra ZD4AH22-D01W01EZ Barcode Label Printer

Frequently Bought Together

Full specifications (PDF)
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.98 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • 1D
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • 2D
  • Codablock
  • PDF417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • Micro PDF
  • AZTEC
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Dual Wall Frame
  • Compact
Connectivity Technology:
Wireless
Optional Connectivity:
  • Serial (RS-232)
  • Ethernet
Memory
Standard Memory:
256 MB
Interfaces/Ports
USB Host:
Yes
USB:
Yes
Network & Communication
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ac
Near Field Communication (NFC):
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Tag Stock
  • Continuous Receipt
  • Continuous Paper
  • Wristband
  • Label
  • Receipt
Media Sensor:
  • Full Width Sensor
  • Moveable Reflective/Black Mark Sensor
  • Multi-position Transmissive/Gap Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
2.24"
Maximum Label Length:
39.02"
Fonts & Emulation
Language Emulation:
  • EZPL
  • ZPL
  • EPL
  • ZPL II
  • EPL II
  • XML
  • ZBI
Software
Operating System Supported:
Link - OS
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
40°F (4.4°C) - 105°F (40.6°C)
Operating Relative Humidity:
10% - 90%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
5% - 95%
Physical Characteristics
Height:
6"
Width:
4.5"
Depth:
8.6"
Weight (Approximate):
2.20 lb
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • ZD411-HC 2-Inch Desktop Printer
  • AC Power Supply
  • Power Cords
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Cables Included:
  • USB
  • AC
Power Adapter Included:
Yes
Platform Supported:
  • PC
  • Android
  • iOS
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra ZD4AH22-D01W01EZ Barcode Label Printer is also known as ZEB-ZD4AH22D01W01EZ or ZD4AH22D01W01EZ.
