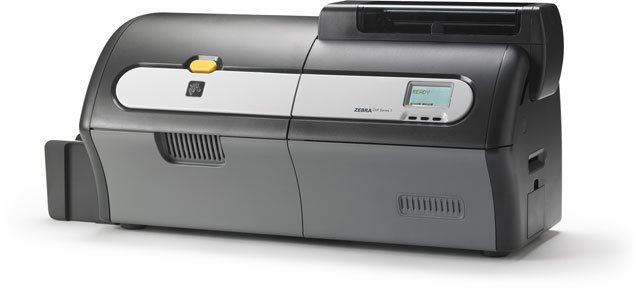

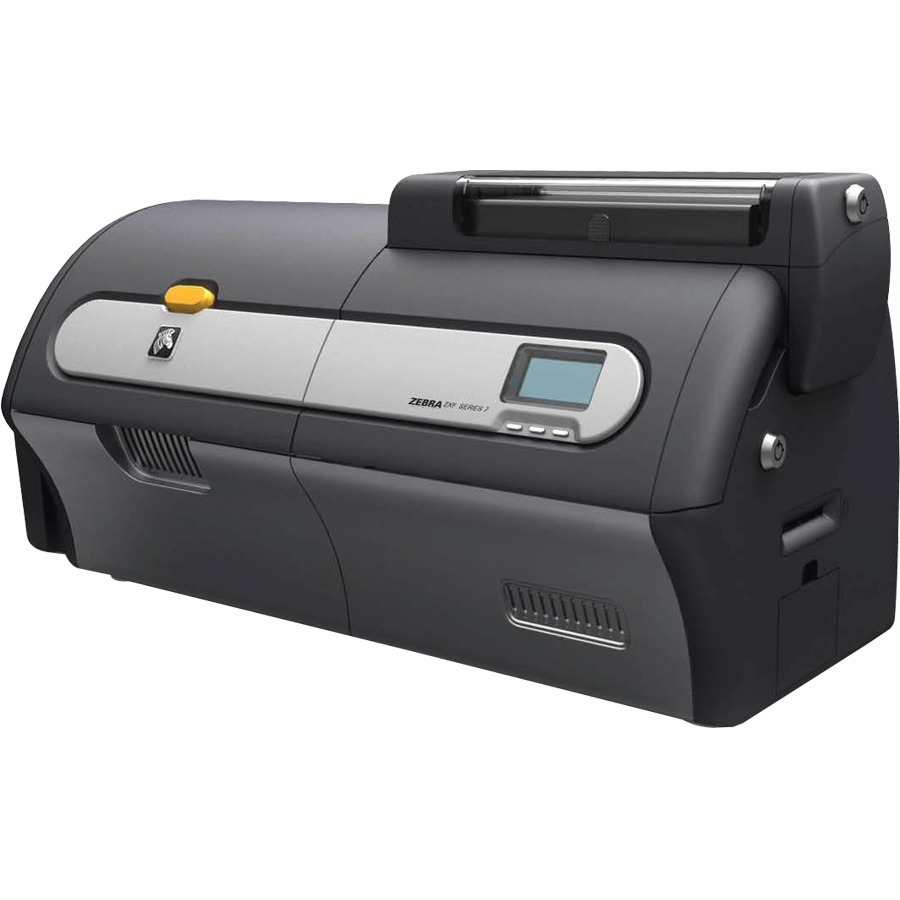

Zebra Z74-0M0W0000US00 ID Card Printer

Part Number: Z74-0M0W0000US00
Model: ZXP Series 7
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Card Print
Print Color Capability
Color
Printing Capability
Double Sided
Maximum Color Print Speed
18 Second

Product Description:

  ID Card Printers, Zebra ZXP Series 7 Dual-sided Printer With Dual-Sided Laminator, US Cord, USB, 10/100 Ethernet & 802.11 Wireless, ISO HiCo/LoCo Mag S/W selectable
Explore all Zebra ZXP Series 7 ID Card Printers
Add to Quote
Zebra Z74-0M0W0000US00 ID Card Printer
Zebra Z74-0M0W0000US00 ID Card Printer
Zebra Z74-0M0W0000US00 ID Card Printer
Zebra Z74-0M0W0000US00 ID Card Printer Zebra Z74-0M0W0000US00 ID Card Printer

Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

Zebra ZXP Series 7 ID Card Printer Model Overview

The Zebra ZXP Series 7 Card Printer is engineered for high-volume card printing, offering remarkable speed, quality, and reliability for a variety of applications. Its innovative features alleviate common frustrations in card production, allowing for quick and efficient printing of photo-like cards. With adaptable options for encoding and lamination, you can ensure security and durability for all your printed materials. Easy-to-use with a clear LCD panel and color-coded guides, the ZXP Series 7 is perfect for businesses needing professionalism and performance in card printing.

Key Features
  • Performance: Near photographic print quality with edge-to-edge printing.
  • Productivity: Fast speeds and simultaneous operations for encoding, printing, and laminating.
  • Adaptability: Options for single or dual-sided printing and various encoding methods.
  • Cost Efficiency: High-capacity media reduces the cost per card with intelligent media technology.


Specifications
  • Print Resolution: 300 dpi / 11.8 dots per mm
  • Connectivity: USB 2.0 and Ethernet 10/100
  • Card Capacity:
    • 200-card feeder (30 mil)
    • 100-card output hopper (30 mil)
    • 15-card reject hopper (30 mil)
  • Print Technologies:
    • Dye sublimation and monochrome thermal-transfer
    • Simultaneous printing and lamination capabilities
  • Speed:
    • Up to 300 cards/hour for full-color single-sided printing
    • Up to 555 cards/hour for dual-sided printing
  • Card Size: CR-80, ISO 7810 format
  • Operating Temperature: 59°F to 95°F (15°C to 35°C)
  • Weight:
    • Printer only: 26.9 lbs (12.2 kg)
    • Printer with laminator: 39.5 lbs (17.9 kg)
Zebra Z74-0M0W0000US00 ID Card Printer Overview
FAST AND RELIABLE CARD PRINTING WITH PHOTO-LIKE IMAGES

Utilizing the latest in card-printing technology, the ZXP Series 7™ card printer provides high-quality card printing. The printer delivers fast yet reliable performance while offering users exceptional value by lowering the printer's total cost of ownership. Time after time, it prints sharp vivid cards with precise color control.

The ZXP Series 7 printer has an innovative design. It automatically adjusts to the thickness of the card, and ribbon loading is easy. With color-coded guides and a clear LCD control panel, it's simple for anyone to use.

Choose from numerous encoding, connectivity and ribbon options, and if extra security or durability is needed for cards, wasteless singleor dual-sided lamination is also available.

Locking mechanisms protect the printer and media, and software provides further security by tracking and restricting activities as required.

Zebra supplies make it easier than ever to manage your printer

Genuine Zebra® supplies meet stringent quality standards, and recommended for optimal printing quality and proper printer performance. The ZXP Series 7 printer is designed to work only with Zebra True Colours® ix Series™ ribbons and Zebra True Secure™ i Series laminates.
Full specifications (PDF)
Technical Information
Recommended Use:
Card Print
Print Color Capability:
Color
Printing Capability:
Double Sided
Maximum Color Print Speed:
18 Second
Maximum Print Resolution (dpi):
300
Application/Usage:
Desktop
Features:
Kensington Lock Slot
Connectivity Technology:
Wired & Wireless
Interfaces/Ports
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • PVC Card
  • PVC Composite
  • PET Card
  • PETG Card
  • Teslin Composite Card
  • Smart Card
  • Adhesive Backed Card
  • ABS Card
  • PETF Card
Media Size:
  • ID-1 Card
  • CR-80 Card
Media Load Type:
Auto Feed
Power Description
Power Source:
AC Supply
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature:
59°F (15°C) - 95°F (35°C)
Operating Relative Humidity:
20% - 80%
Storage Temperature:
23°F (-5°C) - 158°F (70°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Height:
12"
Width:
38"
Depth:
10.9"
Weight (Approximate):
39.50 lb
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43212103
