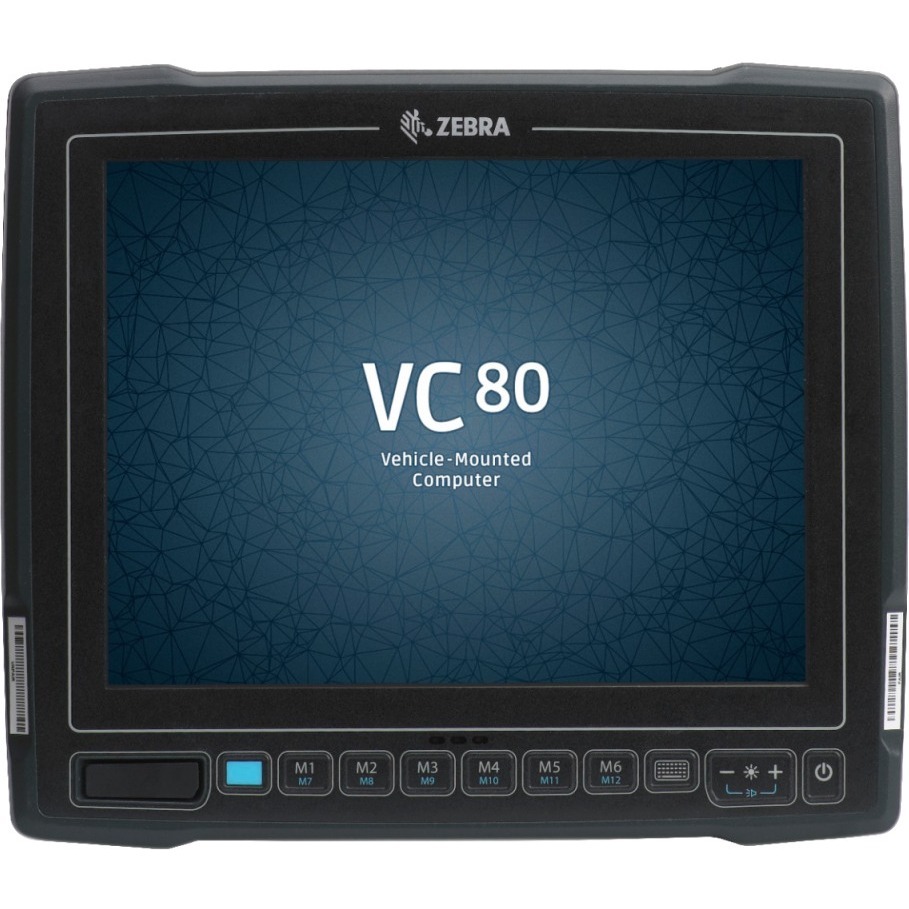

Zebra VC8010FSBB31CBAAXX Data Terminal

Zebra VC8010FSBC31CBAAXX Data Terminal A newer version of this item is available.
It is replaced by the Zebra VC8010FSBC31CBAAXX Data Terminal.
Zebra - VC801, 10 inch (1024 x 768), Freezer (-30 - +50 C, Condensing Environments), Standard Display, Intel E3845 Quad Core, 1.91 GHz, 2 MB Cache, 4 GB RAM, 64 GB SSD, Windows 10 IoT Enterprise, English, TekTerm, Basic IO plus Ethernet, internal antennas

Need a different version? See all Zebra Parts Accessories

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra VC8010FSBB31CBAAXX Data Terminal
Zebra VC8010FSBB31CBAAXX Data Terminal
Zebra VC8010FSBB31CBAAXX Data Terminal
Zebra Parts Accessory Model Overview
Products and parts from Zebra.
Zebra VC8010FSBB31CBAAXX Data Terminal Overview
COMPLETE TASKS FASTER AND MORE ACCURATELY

The VC80 fits in virtually any warehouse/material handling vehicle and features Windows 10 IoT Enterprise, Embedded standards 7 or Windows 7 Professional operating system. Programmable keys that simplify the most complex operations and the field replaceable touchscreen or optional keyboard which can be used even with the thickest gloves.

Technical Information
Connectivity Technology:
Wireless
Processor & Chipset
Processor Manufacturer:
Intel
Processor Model:
E3845
Processor Core:
Quad-core (4 Core)
Processor Type:
Atom
Processor Speed:
1.91 GHz
Memory
Standard Memory:
4 GB
Storage
Solid State Drive Capacity:
64 GB
Display & Graphics
Screen Size:
10.4"
Graphics Modes:
XGA
Display Screen Type:
LED
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n/ac
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Power Description
Power Source:
Power Supply
Software
Operating System:
Windows 10 IoT Enterprise
Physical Characteristics
Width:
9.3"
Depth:
3.5"
Length:
10.4"
Weight (Approximate):
8.60 lb
Miscellaneous
Certifications & Standards:
Sealing:
  • IP66
Shock/Vibration:
  • IEC 60721-3-5M3
  • MIL-STD 810G
  • Method 514.6
  • MIL-STD 810G
  • Method 516.6
Solar Radiation:
  • MIL STD 810-G
  • Method 505.5
  • Procedure I
Electrical Safety:
  • UL/cUL/IEC/EN 60950-1 Indoor use
  • UL/cUL/IEC/EN 60950-22 Outdoor
EMI/RFI:
  • FCC Part 15, Class B
  • ICES 003 Class B
  • EN55022
  • EN 301 489-1
  • EN 301 489-17
WLAN/Bluetooth:
  • FCC Part 15.247
  • FCC Part 15.407
  • EN 300 328
  • EN 301 893
  • AS/NZS 4268
Flammability:
  • IEC UL94-V0
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211505
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Zebra VC8010FSBB31CBAAXX Data Terminal is also known as ZEB-VC8010FSBB31CBAA or VC8010FSBB31CBAAXX.
