Zebra VC8010FSBC31CBAAXX Data Terminal

The Zebra VC8010FSBC31CBAAXX Data Terminal has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra - 10" (1024 X 768), FREEZER (-30 - +50 C, CONDENSING ENVIRONMENTS), STANDARD DISPLAY, INTEL E3845 QUAD CORE, 1.91 GHZ, 2 MB CACHE, 4 GB RAM, 128 GB SSD, WINDOWS 10 IOT ENTERPRISE, ENGLISH, TEKTERM, BASIC IO PLUS ETHERNET, INTERNAL ANTENNAS
Discontinued Need Assistance?
Add to Quote
Zebra Parts Accessory Model Overview
Products and parts from Zebra.

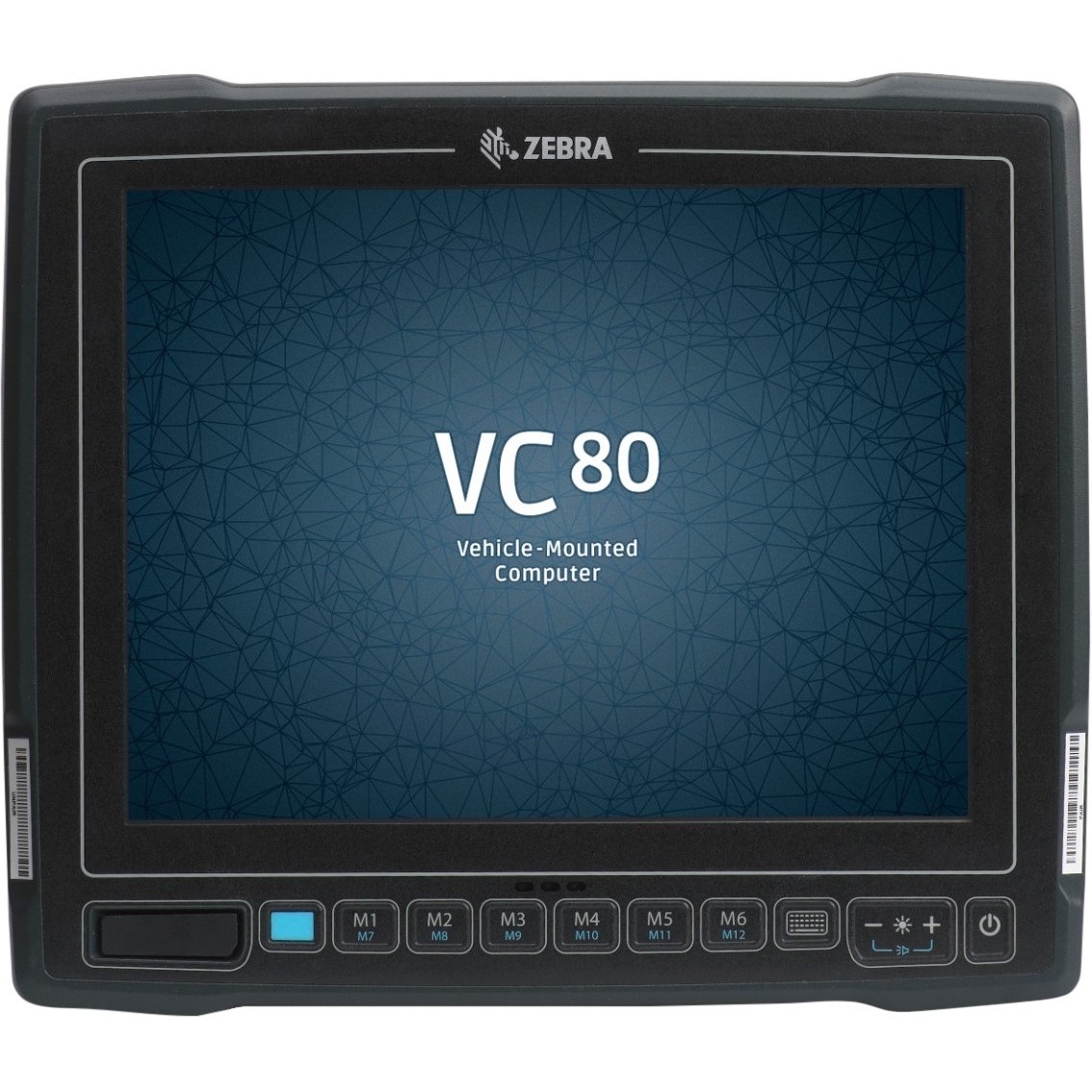

Zebra VC8010FSBC31CBAAXX Data Terminal Overview
GET THE FULL WINDOWS SUPPORT YOU NEED TO PUT YOUR DESKTOP APP LICATIONS AT THE FINGERTIPS OF YOUR VEHICLE OPERATORS

With the VC80, you can give operators in material handling vehicles mobile access to the desktop applications they need to complete tasks faster and more accurately. You get full Windows support in a super rugged design built for your toughest indoor and outdoor environments - from warehouses and distribution centers to airports, seaports, railway yards and more - plus the fastest wireless connections available to keep workers connected to your data and productive.

And with its compact design and flexible mounting options, it's easy to install in forklifts, clamp trucks, yard mules, cranes and more. The VC80 - real desktop power to handle your mobile application needs.

Compact Design and Flexible Mounting Options.

Real desktop power to handle your mobile application needs.

FREEZER-READY FOR THE COLDEST SUPPLY CHAIN

You get true frost and condensation free operation with touchscreen, board and battery heaters, plus smart temperature sensors that automatically control heater and heating speed.

MAXIMUM RUGGED DESIGN

The VC80 is ready for your toughest environments, with dustand-water tight IP66 sealing, sealed connectors, and extreme temperature, shock and vibration testing.

EASY TO SEE INDOORS AND OUTSIDE

Choose either 1,000NITs for a super bright screen that is easy to see outdoors or 400NITs for indoor operation.

PROGRAMMABLE KEYS TO SIMPLIFY THE MOST COMPLEX OPERATIONS

With six direct and six soft programmable keys, multi-step processes can be executed with one keypress, boosting throughput and productivity.

DESIGNED FOR VOICE IN YOUR LOUDEST ENVIRONMENTS

The very loud front facing speaker and instantly accessible volume control make it easy to hear scanner feedback and app notifications.

FITS IN VIRTUALLY ANY WAREHOUSE/MATERIAL HANDLING VEHICLE

Multiple mounting options, including standard RAM mounts combine with a compact size for an easy fit and easy mounting, even in the smallest vehicles. And a 10-second quick release mount makes it easy to move the VC80 to another vehicle during vehicle maintenance or device repair.

FLEXIBLE DATA ENTRY - TOUCH OR OPTIONAL KEYBOARD

The touchscreen's soft keyboard and haptic vibration feedback make it easy to use touch input, even with the thickest gloves. Or you can choose to mount an optional keyboard on the bottom or side of the VC80.

POWER TO SUPPORT TODAY'S GRAPHICSINTENSIVE APPLICATIONS

Get the power you need to deliver blazing speed for your applications with your choice of a dual core 1.33GHz with 2GB RAM or a quad core 1.91GHz processor with 4GB RAM.

SUPERIOR FLEXIBILITY - ADD BAR CODE SCANNING, VOICE AND MORE

Different workers need different capabilities. That's why the VC80 offers all the ports you need to add bar code scanners, mobile printers, a push-to-talk microphone and more.

ROCK-SOLID FAST WI-FI CONNECTIVITY

WIth support for the latest Wi-Fi standards - 802.11a/b/g/n/ ac - plus a choice of internal or external antennas, the VC80 can deliver desktop wired-line style performance on the most complex applications.

REPAIRABLE, RIGHT ON THE SPOT

Since the touchscreen - the most frequently damaged component - is field replaceable, trips to the service depot are eliminated, increasing device availability and your return on investment.
Technical Information
Connectivity Technology:
Wireless
Processor & Chipset
Processor Manufacturer:
Intel
Processor Model:
E3845
Processor Core:
Quad-core (4 Core)
Processor Type:
Atom
Processor Speed:
1.91 GHz
Memory
Standard Memory:
4 GB
Storage
Solid State Drive Capacity:
128 GB
Display & Graphics
Screen Size:
10.4"
Graphics Modes:
XGA
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
HD Graphics
Display Screen Type:
LCD
Touchscreen:
Yes
Touchscreen Type:
Resistive
Multi-touch Screen:
Yes
Display Color:
Color
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
Internal
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n/ac
Interfaces/Ports
Network (RJ-45):
Yes
Keyboard/Keypad
Number of Keys:
6
Keyboard Form Factor:
Integrated
Power Description
Power Source:
Battery
Software
Operating System:
Windows 10 IoT Enterprise
Physical Characteristics
Width:
9.3"
Depth:
3.5"
Length:
10.4"
Weight (Approximate):
8.60 lb
Miscellaneous
Package Contents:
  • VC80 Vehicle Mount Mobile Computer
  • Corded scanners
  • Cordless scanners
  • Antennas
  • Push-to-talk speaker/ microphone
  • Keyboards
  • Keyboard mounts
  • Adaptation kits (power cables) for drop in replacements of legacy vehicle mount computer installations
  • Quick release mount
  • RAM mounts
  • Scanner holder
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211505
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Zebra VC8010FSBC31CBAAXX Data Terminal is also known as ZEB-VC8010FSBC31CBAA or VC8010FSBC31CBAAXX.
