You've just added this product to the cart:

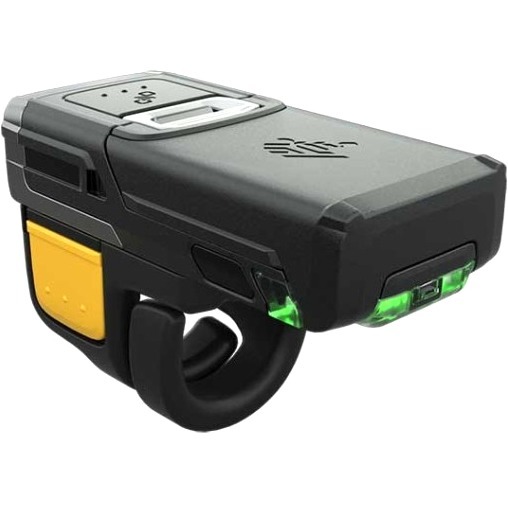

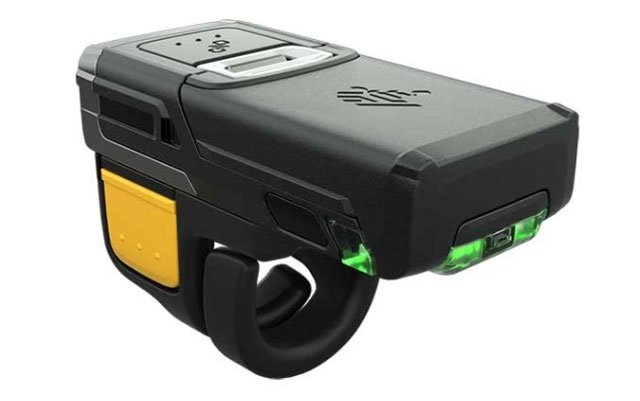

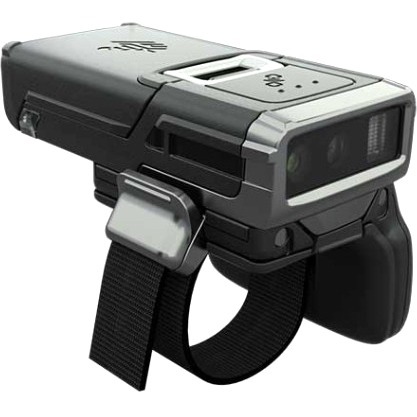

Zebra RS51B0-TBSNWR Barcode Scanner

Zebra RS5100 Ring Scanner - Single Finger Bluetooth Ring Scanner, Zebra RS5100, SE4770, Single Trigger, Top Trigger, Standard Battery, Worldwide
  • Increase productivity and performance by excluding the cable
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Bluetooth technology - Allows compatibility with most of your smart devices
Read More
$820.05
In Stock:
Ships Same Day
Why don't we show the price?

Full specifications (PDF)

Single Finger Bluetooth Ring Scanner
Zebra's RS5100 Bluetooth Ring Scanner is the 'go-everywhere' single-finger featherweight and rugged ring scanner. The RS5100 is a comfortable, featherlight-yet-rugged industrial design for use at home or anywhere in your facility. Multiple LEDs on the back of the RS5100 can blink to indicate whether workers should turn left or right, or continue straight ahead. Pair the RS5100 with virtually any Zebra enterprise-class mobile device to unlock the full feature set. With Class 1 Bluetooth support, you can roam up to 300 feet/91.44 m from the host device, ideal when paired to vehicle mount computers or a dongle in a laptop or other device. With NFC, workers can simple tap the RS5100 on NFC-enabled Zebra devices, such as the WT6000 Wearable Computer and the TC52 Handheld Mobile Computer.
Zebra RS51B0-TBSNWR Overview
The 'go-everywhere' single-finger featherweight and rugged ring scanner

Ring scanners can provide your workforce with the hands-free scanning they need to maximize productivity. But today's workers have high expectations for wearable devices. They expect a modern design with a minimal footprint for maximum comfort, ease-of-use that's so intuitive that virtually no training is required, plus point-and-shoot scanning simplicity on every barcode. Your business requires a flexible design that's just as at home in customer-facing areas as the warehouse, a rugged design to ensure a long lifecycle with a low Total Cost of Ownership (TCO), scanning options that match the needs of your environment, plus backroom accessories that reduce management time and cost. Now, you can have it all with the RS5100. A comfortable, featherlight-yet-rugged industrial design at home anywhere in your facility. Zebra's advanced scan engines for unmatched scanning performance. And features that drive ease-of-use and manageability to a new level.

Superior ergonomics, ease-of-use and application flexibility

Tiny size and extreme comfort

The small, light, low-profile RS5100 is purposefully understated at just over two ounces and two cubic inches - practically weightless for all day comfort.

Flexible hands-free scanning with many wearing styles

With Bluetooth, there's no cable for workers to manage - and handheld host devices can even remain in a holster. Workers can choose their preferred wearing style - on the right or left hand on either a finger or the back of hand, or on a lanyard.

LEDs lead the way to the most efficient path

Multiple LEDs on the back of the RS5100 can blink to indicate whether workers should turn left or right, or continue straight ahead.

Prevent the spread of germs with personal trigger assemblies

Since the trigger assembly is the only part of the RS5100 that touches skin, we created a modular two-piece design that separates the trigger assembly from the scanner body, providing the option to give each worker their own trigger.

Unmatched versatility and flexibility

Use on practically any Bluetooth-enabled device

Pair the RS5100 with virtually any Zebra enterprise-class mobile device to unlock the full feature set. With Class 1 Bluetooth support, you can roam up to 300 feet/91.44 m from the host device, ideal when paired to vehicle mount computers or a dongle in a laptop or other device.

Just tap for instant pairing

With NFC, workers can simply tap the RS5100 on NFC-enabled Zebra devices, such as the WT6000 wearable computer and the TC52 handheld mobile computer. No need to scan a pairing barcode or open Bluetooth settings to identify and select the device.

An advanced removable and replaceable battery - and more

The RS5100 is the only ring scanner in its class that can support back-to-back shifts without recharging - just swap the batteries to keep it out of the charger and on the fingers of your workers. Choose from two PowerPrecision+ batteries. The standard battery lasts more than a full shift, providing 12 hours of power and 14,400 scans on a single charge. The extended battery powers longer shifts, enables operation in cold environments and provides a longer battery lifecycle. And with PowerPrecision Console, a no-cost Mobility DNA tool, you can spot and discard aging batteries that can no longer hold a full charge, ensuring that your RS5100 ring scanners always have a healthy battery - and workers won't run out of power during a shift.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
OCR:
  • OCR-A
  • OCR-B
Scan Engine Model:
SE4770
Light Source:
Laser
Scan Pattern:
Semi Omni-directional
Scanner Range:
Standard Range
Field of View (Horizontal):
48°
Field of View (Vertical):
30°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Maximum Ambient Light:
107639 lux
Drop Specification:
Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
20 mil
Maximum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
5 mil
Maximum Element Resolution (PDF417):
6.7 mil
Network & Communication
Bluetooth:
Yes
Power Description
Power Source:
Battery
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Wearable
Rugged:
Yes
Color:
  • Black
  • Yellow
Width:
1.1"
Depth:
0.8"
Length:
2.4"
Weight (Approximate):
2.47 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Warehouse
  • Manufacturing
  • Hospitality
  • Distribution
  • Retail
  • Transportation
  • Logistics
Environmentally Friendly:
Yes
Environmental Certification:
  • REACH
  • RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories for Model: Zebra RS5100 Scanner
Zebra (BTRY-RS51-4MA-01)
PowerPrecision Lithium Ion Standard battery, 480 mAh, Single Battery for the Zebra RS5100 Ring Scanner
In Stock
$70.00
Why don't we show the price?

Zebra (SAC-RS51-40SCHG-01)
40-Slot Spare Battery Charger for the Zebra RS5100 Ring Scanner. Allows Charging of 40 Spare Batteries. Requires PWR-BGA12V108W0WW, DC Line Cord Cable-DC-382A1-01, and 3 Wire Grounded Country Specific AC Line Cord Sold Seperately.
In Stock
$2,495.00
Why don't we show the price?

Zebra (CRD-RS51-4SCHG-01)
4-Slot Ring Scanner Charger for the Zebra RS5100 Ring Scanner, Allows Charging OF 4- RS5100 Ring Scanners. Requires PWR-BGA12V50W0WW, DC Cable Cable-DC-388A1-01 AND 3-Wire Grounded Country Specific AC Line Cord, Sold Seperately.
In Stock
$345.00
Why don't we show the price?

Zebra (BTRY-RS51-4MA-10)
PowerPrecision Lithium Ion Standard battery, 480 mAh, 10-pack Battery for the Zebra RS5100 Ring Scanner
In Stock
$680.00
Why don't we show the price?

Zebra (SG-RS51-BHMT-01)
RS5100 Back of Hand Mount, includes hand strap
In Stock
$150.00
Why don't we show the price?
