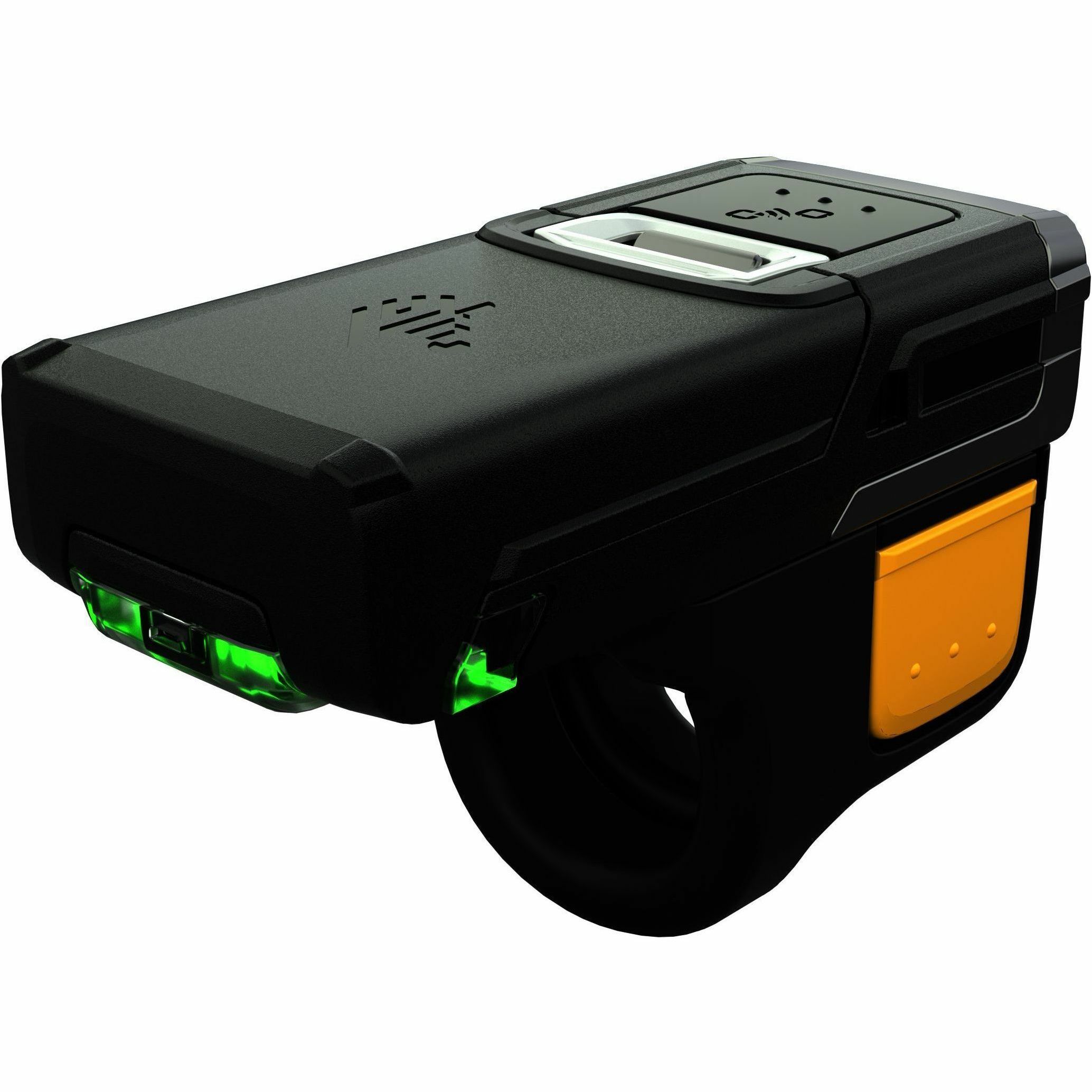

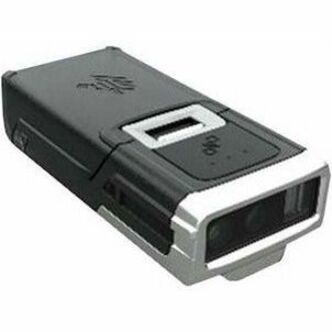

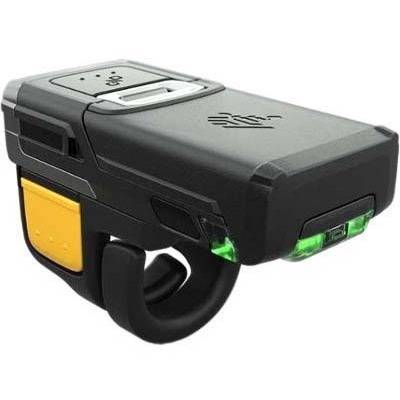

Zebra RS51B0-LNNMWR Scan Engine

Zebra RS51C0-LNNMWR Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra RS51C0-LNNMWR Barcode Scanner.
Zebra RS5100 - Scan Engine, Zebra, RS5100 Platform Only: SE4710, No Trigger, No Battery, Worldwide
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
  • Bluetooth technology - Allows compatibility with most of your smart devices
Read More

Need a different version? See all Zebra RS5100 Accessories

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra RS51B0-LNNMWR Scan Engine
Zebra RS51B0-LNNMWR Scan Engine Zebra RS51B0-LNNMWR Scan Engine Zebra RS51B0-LNNMWR Scan Engine Zebra RS51B0-LNNMWR Scan Engine
Zebra RS51B0-LNNMWR Scan Engine
Zebra RS51B0-LNNMWR Scan Engine
Zebra RS51B0-LNNMWR Scan Engine
Zebra RS51B0-LNNMWR Scan Engine
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 2D
  • 1D
Barcode Symbology Supported:

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes

OCR:

  • OCR-A
  • OCR-B


Scan Engine Model:
SE4710
Light Source:
LED
Image Sensor Type:
Imager
Depth of Field:

Multiple 6 ft./1.8 m drops to concrete over the operating temperature range

Scanning Distance:
30"
Field of View (Horizontal):
42°
Field of View (Vertical):
28°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Maximum Ambient Light:
107639 lux
Minimum Element Resolution (Code 39):
4 mil
Maximum Element Resolution (Code 39):
20 mil
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
5 mil
Image Sensor Resolution:
1280 x 960
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Rugged:
Yes
Product Color:
  • Black
  • Silver
Width:
1.1"
Depth:
0.8"
Length:
2.4"
Weight (Approximate):
2.47 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Warehouse
  • Picking
  • Sorting
  • Packing
  • Transportation
  • Logistics
  • Inventory
  • Price Checking
  • Retail
  • Field Sales/Service
  • Route Accounting
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Zebra RS51B0-LNNMWR Scan Engine is also known as ZEB-RS51B0LNNMWR or RS51B0LNNMWR.
