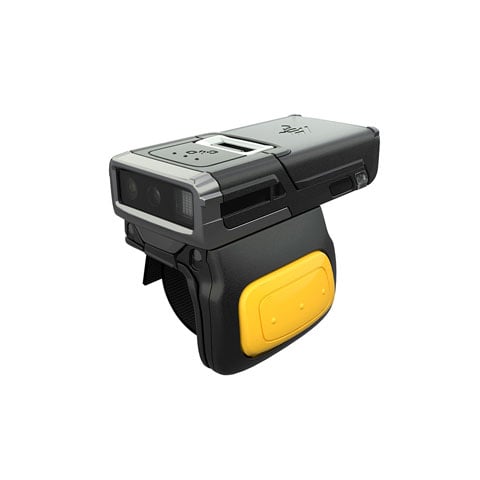

Zebra RS51B0-LBDUWR Barcode Scanner

Zebra RS51C0-LBDUWR Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra RS51C0-LBDUWR Barcode Scanner.
Zebra RS5100 - Ring Barcode Scanners, Zebra RS5100, 2D Imager, Cordless, General Purpose, SCANNER ONLY, Wearable, SE4710, Standard Battery (480mAh), Double Sided, USB-C, No Top Trigger, Black, Worldwide
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Increase productivity and performance by excluding the cable
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Quantity Unit Price Discount
2 $844.58 1% OFF
5 $827.52 3% OFF
Add to Quote

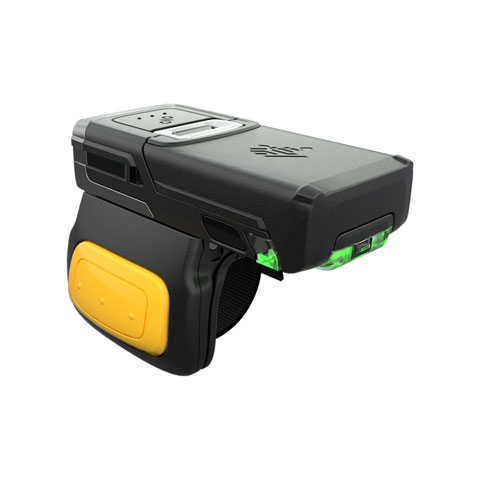

Zebra RS5100 Barcode Scanner Model Overview
Zebra's RS5100 Bluetooth Ring Scanner is the 'go-everywhere' single-finger featherweight and rugged ring scanner. The RS5100 is a comfortable, featherlight-yet-rugged industrial design for use at home or anywhere in your facility. Multiple LEDs on the back of the RS5100 can blink to indicate whether workers should turn left or right, or continue straight ahead. Pair the RS5100 with virtually any Zebra enterprise-class mobile device to unlock the full feature set. With Class 1 Bluetooth support, you can roam up to 300 feet/91.44 m from the host device, ideal when paired to vehicle mount computers or a dongle in a laptop or other device. With NFC, workers can simple tap the RS5100 on NFC-enabled Zebra devices, such as the WT6000 Wearable Computer and the TC52 Handheld Mobile Computer.
Zebra RS51B0-LBDUWR Barcode Scanner Overview

The 'go-everywhere' single-finger featherweight and rugged ring scanner

Ring scanners can provide your workforce with the hands-free scanning they need to maximize productivity. But today's workers have high expectations for wearable devices. They expect a modern design with a minimal footprint for maximum comfort, ease-of-use that's so intuitive that virtually no training is required, plus point-and-shoot scanning simplicity on every barcode. Your business requires a flexible design that's just as at home in customer-facing areas as the warehouse, a rugged design to ensure a long lifecycle with a low Total Cost of Ownership (TCO), scanning options that match the needs of your environment, plus backroom accessories that reduce management time and cost. Now, you can have it all with the RS5100. A comfortable, featherlight-yet-rugged industrial design at home anywhere in your facility. Zebra's advanced scan engines for unmatched scanning performance. And features that drive ease-of-use and manageability to a new level.

Superior ergonomics, ease-of-use and application flexibility

Tiny size and extreme comfort

The small, light, low-profile RS5100 is purposefully understated at just over two ounces and two cubic inches - practically weightless for all day comfort.

Flexible hands-free scanning with many wearing styles

With Bluetooth, there's no cable for workers to manage - and handheld host devices can even remain in a holster. Workers can choose their preferred wearing style - on the right or left hand on either a finger or the back of hand, or on a lanyard.

LEDs lead the way to the most efficient path

Multiple LEDs on the back of the RS5100 can blink to indicate whether workers should turn left or right, or continue straight ahead.

Prevent the spread of germs with personal trigger assemblies

Since the trigger assembly is the only part of the RS5100 that touches skin, we created a modular two-piece design that separates the trigger assembly from the scanner body, providing the option to give each worker their own trigger.

Unmatched versatility and flexibility

Use on practically any Bluetooth-enabled device

Pair the RS5100 with virtually any Zebra enterprise-class mobile device to unlock the full feature set. With Class 1 Bluetooth support, you can roam up to 300 feet/91.44 m from the host device, ideal when paired to vehicle mount computers or a dongle in a laptop or other device.

Just tap for instant pairing

With NFC, workers can simply tap the RS5100 on NFC-enabled Zebra devices, such as the WT6000 wearable computer and the TC52 handheld mobile computer. No need to scan a pairing barcode or open Bluetooth settings to identify and select the device.


Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
OCR:
  • OCR-A
  • OCR-B


Scan Engine Model:
SE4710
Light Source:
LED
Image Sensor Type:
Imager
Depth of Field:

Multiple 6 ft./1.8 m drops to concrete over the operating temperature range

Scanning Distance:
30"
Features:
Vibration
Field of View (Horizontal):
42°
Field of View (Vertical):
28°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Maximum Ambient Light:
107639 lux
Minimum Element Resolution (Code 39):
4 mil
Maximum Element Resolution (Code 39):
20 mil
Maximum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
5 mil
Image Sensor Resolution:
1280 x 960
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Wearable
Rugged:
Yes
Width:
1.1"
Depth:
0.8"
Length:
2.4"
Weight (Approximate):
2.47 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Warehouse
  • Picking
  • Sorting
  • Packing
  • Transportation
  • Logistics
  • Inventory
  • Retail
  • Price Checking
  • Field Sales/Service
  • Route Accounting
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Zebra RS51B0-LBDUWR Barcode Scanner is also known as ZEB-RS51B0LBDUWR or RS51B0LBDUWR.
