The RFD40 UHF RFID Standard Sled by Zebra is your ultimate solution for enhancing operational efficiency in fast-paced environments. Designed to significantly reduce cycle counting time, this sled boasts an exceptional reading capability of over 1,300 tags per second, enabling swift inventory management and precise asset tracking. Compatible with the latest eConnex™-enabled Zebra mobile computers, it offers future-proof connectivity for seamless integration into your existing systems. The durable build withstands rigorous use, making it an indispensable tool for industries such as retail, healthcare, and logistics.

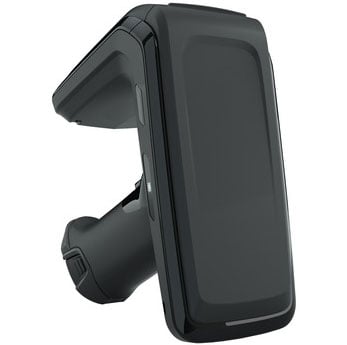

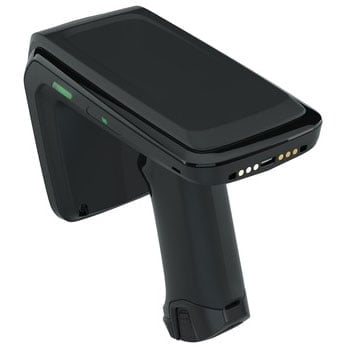

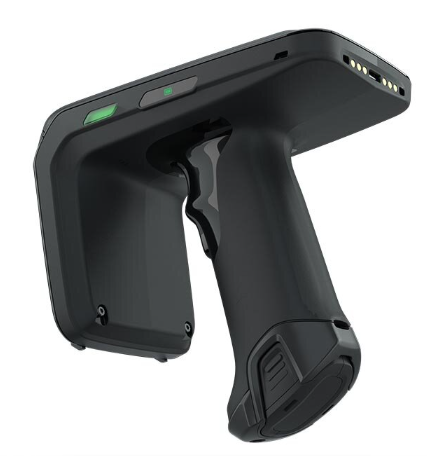

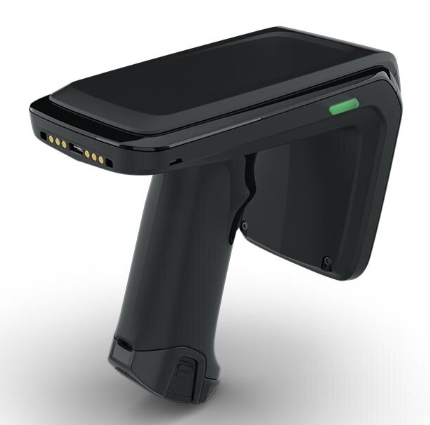

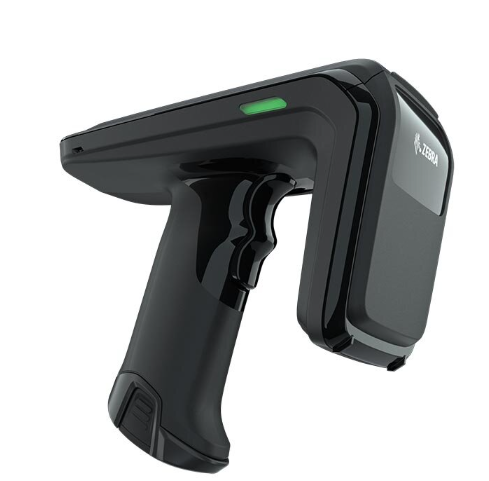

RFD40 UHF RFID STANDARD SLED
FASTER. SMARTER. FUTURE-PROOF.
Your business is being challenged to work faster and more efficiently than ever before. Gain the edge you need with the RFD40 UHF RFID Standard Sled. Decrease cycle counting time with more tag reads per second. Take inventory faster or locate critical assets and patients with ease with the ultra-accurate item-finder mode and a tri-function trigger. Adapt to new and emerging technologies with this state-of-the-art sled that connects to the latest eConnex™-enabled Zebra mobile computers. This capable RAIN RFID powerhouse is ready to tackle all your RFID and data capture needs long into the future. Achieve the flexibility and connectivity you need to become more efficient and adapt quickly to new and emerging technologies with the RFD40 UHF RFID Standard Sled from Zebra.
EMPOWER YOUR WORKERS
Next Generation Connectivity
With the new eConnex™ technology that allows for snap-and-go pairing, you can future-proof your workplace with a sled that supports the latest Zebra mobile computers including WWAN-enabled variants. What's more, the sled has the ability to instantly connect to supported Zebra eConnex™-enabled devices including the TC21/26, EC50/55 and future models.
Flexible and Future-Proof Charging
The charging solutions for the RFD40 Sled provide users a flexible way to power up the sled and mobile computer in a variety of ways. Featuring 2 sets of charging pins, each cradle cup can charge the RFD40 Sled by itself, the mobile computer by itself, or the combination of RFD40 Sled and mobile computer when attached together. Cradle cups are available for each combination of RFD40 Sled and mobile computer, including TC21/26 and EC50/55.
A USB-C port on the bottom of the RFD40 sled, as well as a pinned connector, allows for the connection of the RFD40 Sled to a Windows-based PC or other host via a USB-C cable or cable cup which enable the RFD40 Sled to be used as a tethered RFID reader.
World Class Development and Enablement Tools
Quickly transition to the latest generation of products without the need for a major application rewrite. The Software Development Kits (SDKs) for the RFD40 Sled are based off of the current Zebra RFID handheld SDKs. Only a recompile of the current application with the new SDK is required for you to get up and running on the new RFD40 Sled.
The RFD40 Sled can now connect to 123RFID Desktop via USB cable or cable cup so you can configure your sleds live and offline. Use 123RFID Desktop for proofs-of-concepts, demos, and to perform firmware upgrades.
No Host? No Problem!
If a real-time connection to backend systems is not available, batch mode enables the collection of up to 40,000 RFID tags. Just sync to upload the data from the RFD40 Sled to the host device at any time.
Unparalleled Efficiency
The RFD40 Sled outperforms the competition with 1,300+ tag reads per second (up to 30% faster than the next leading competitor), a 20+ foot read range and ultra-accurate item-finder mode. With a 7000mAh battery and quick release function that's accessible without removing the mobile computer, it can keep going hour after hour. The tri-function trigger lets associates quickly access RFID reading, barcode scanning and a programmable third function of your choice, such as the enter key or push-to-talk.
Adaptive Solutions
The RFD40 Sled is fully enabled to support Zebra's current mobile computers as well as new mobile computers as they come out. The easy-to-change, tool-free sled adaptors allow associates to swap out the adaptor quickly while maintaining compatibility without the need to send devices t
The Zebra RFD40 UHF RFID Standard Sled delivers high-speed tag reads per second to decrease cycle counting time and improve inventory accuracy. It features an ultra-accurate item-finder mode with a tri-function trigger, standard range circular polarized antenna, and connects seamlessly to eConnex-enabled Zebra mobile computers. The device includes a 7000mAh battery, IP54 sealing for dust and water protection, and supports demanding warehouse and logistics environments.
Yes, the RFD40 is built for rugged warehouse conditions with a 5-foot drop to concrete specification and 500 cycle 0.5 meter tumble specification to withstand real-world impacts. Its IP54 sealing provides protection against dust and water, making it suitable for demanding logistics and inventory management operations. We offer the RFD40 as a reliable solution for facilities that require dependable RFID performance in challenging environments.
The RFD40 RFID Reader connects to eConnex-enabled Zebra mobile computers, allowing you to integrate RFID capabilities into your existing Zebra device ecosystem. This connection enables seamless data capture and real-time inventory visibility across your operations. Contact us today to confirm compatibility with your specific Zebra mobile computer model.
The Zebra RFD40 features a USB-C port for reliable wired connectivity and integrates with eConnex-enabled Zebra mobile computers for wireless operation. This dual connectivity approach gives you flexibility in how you deploy the reader across your warehouse or logistics operation. Visit barcodesinc.com to explore integration options for your specific workflow.
The RFD40 excels at cycle counting, inventory management, asset tracking, and patient/critical asset location in healthcare and logistics environments. Its high read rate per second and item-finder mode make it ideal for operations requiring fast, accurate tag identification across large areas. We offer the RFD40 for organizations looking to streamline inventory processes and reduce cycle counting time significantly.
No, the Zebra RFD40 (model RFD4030-G00B700-US) is a UHF RFID-only reader without an integrated imager, making it purpose-built for RFID tag capture rather than barcode scanning. If you need combined RFID and barcode capabilities, contact us today to discuss alternative Zebra solutions that meet your multi-modal capture requirements.
Full specifications (PDF)
