Zebra R2D-0U0A000N-GA Portable Barcode Printer

The Zebra R2D-0U0A000N-GA Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra RW 220 - 8MB/16MB, US/Canada English, Standard media, LCD, belt clip. This is the TAA compliant version of printer (Part# R2D-0U0A000N-00) for government purchasers. Please call for more information. Power supply (Part# AT17696-1) not included. See accessories.

Printer Type

Mobile

Printing Technology

Direct Thermal

Print Resolution

203 dpi

A smart and inexpensive solution to print temporary documents
203 maximum print resolution (dpi) for better reliance and added usability
Produce high-quality documents with this monochrome printer to increase your productivity
Ideal for point-of-sale transactions for quick receipt printing
Ideal to be used in field service, and in any application that has a need to print on the go
2.37" maximum label width for your convenience and feasible usability
Supports receipt media type for maximum feasibility and better accommodation of your requirements
Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage

Need a different version? See all Zebra RW 220 Portable Barcode Printers

Discontinued Need Assistance?

Add to Quote

Zebra R2D-0U0A000N-GA Portable Barcode Printer

Overview

Full specifications (PDF)

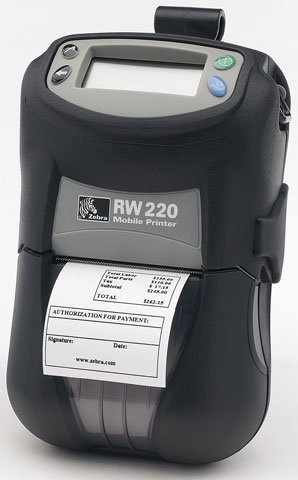

Zebra RW 220 Portable Barcode Printer Model Overview

Designed for the Road Warrior, the RW 220 mobile receipt printer is ideal for printing delivery receipts and invoices on the go. The modular design allows users to choose among wireless options, card readers, and integral accessories such as a vehicle mount for simplified route printing. Easy-access vehicle mounting cradles and charging options as well as user-intuitive interfaces and angled displays enhance the convenience and simplicity of mobile printing. Uniquely designed for harsh outdoor environments, RW 220 mobile printers endure extreme temperatures and weather conditions. Bounce it in the truck, carry it in the rain, drop it on the pavement, and expect the same performance day in and day out.

Zebra R2D-0U0A000N-GA Portable Barcode Printer Overview

The Zebra RW 220 is a 2-inch mobile printers ideal for receipts on the go. Its modular design allows users to choose among secure wireless options and card readers. The compact printer also offers convenient vehicle mounting and charging options, as well as user-intuitive interfaces and angled display for easy use while on the go! Additionally, the RW 220 has a high speed processor and large memory for quick and efficient processing of complex receipts, graphics and fonts using sophisticated wireless options.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

2.20"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
UPC-A
UPC-E
EAN-8
EAN-13
EAN-14
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Plessey
FIM
POSTNET
Interleaved 2 of 5
MSI
Codabar
PDF-417
Data Matrix
Maxi Code
RSS
GS1 DataBar
QR Code
Aztec Code

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Receipt
Tag
Gap
Continuous Receipt

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

6.30 mil

Maximum Roll Diameter:

2.25"

Maximum Label Width:

2.37"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
XML
ZPL
EPL

Power Description

Power Source:

Battery

Input Voltage:

7.4 V DC

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

6.9"

Width:

Depth:

2.9"

Weight (Approximate):

1.45 lb

Miscellaneous

Package Contents:

RW 220 Receipt Printer Government Compliant
Battery
Belt Clip

Platform Supported:

Certifications & Standards:

IP54
FCC Part 15 Class B
Canadian ICES-003
VCCI
NOM/NYCE
CE compliance (Class B)
C-Tick
CSA
TAA

Country of Origin:

United States

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 45101512
