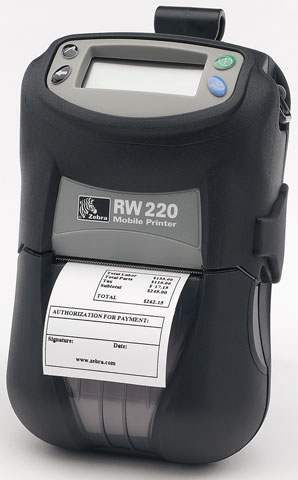

Zebra R2D-0U0A000N-00 Portable Barcode Printer


4.0

(1 reviews)

Zebra RW 220 - Direct thermal Mobile Receipt Printer (2 inch Printhead, LCD, 16MB DRAM, 8MB Flash, Standard Media and Group N). Power supply (Part# AT17696-1) not included. See accessories.
Durability for Reliable Printing

Designed for the Road Warrior, the RW 220 mobile receipt printer is ideal for printing delivery receipts and invoices on the go. The modular design allows users to choose among wireless options, card readers, and integral accessories such as a vehicle mount for simplified route printing. Easy-access vehicle mounting cradles and charging options as well as user-intuitive interfaces and angled displays enhance the convenience and simplicity of mobile printing. Uniquely designed for harsh outdoor environments, RW 220 mobile printers endure extreme temperatures and weather conditions. Bounce it in the truck, carry it in the rain, drop it on the pavement, and expect the same performance day in and day out.

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.20"
  • Recommended Use: Receipt Print
  • Features:
    • LCD Display
    • Belt Clip
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • UCC/EAN 128
    • Code 128
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • EAN-14
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • FIM
    • POSTNET
    • Interleaved 2 of 5
    • MSI
    • Codabar
    • PDF-417
    • Data Matrix
    • Maxi Code
    • RSS
    • GS1 DataBar
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: RW
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: RW 220
  • Product Name: RW 220 Thermal Receipt Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 3"
  • Depth: 2.9"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • RW 220 Thermal Receipt Printer
    • Battery
    • RW 220 Thermal Receipt Printer
    • Battery
  • Additional Information:
    • Media sensors: Bar
    • Six foot drop protection
    • Auto detect firmware load
    • Smart battery management
    • Standard media (with IP54 rating)
    • Advanced 32 bit architecture for high-speed processing
    • Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
    • Regional Grouping Codes: (US/Canada/Australia/New Zealand/Mexico/Nicaragua)
    • Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold

Media Types & Handling

  • Maximum Label Width: 2.37"
  • Media Type:
    • Receipt
    • Tag
    • Gap
    • Continuous Form
    • Continuous Receipt
    • Synthetic Media
    • UV Coated Media
  • Media Thickness: 6.30 mil
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 2.25"

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • ZPL
    • XML
    • EPL

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)



Customer Review Summary


4.0

(based on 1 reviews)

Ratings Distribution

  • 5 Stars



    (0)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

Back to top


4.0

Printer with an RTC

By Dragon

from Norcross, GA

8/25/2014

Verified Buyer

Comments about Zebra RW 220 R2D-0U0A000N-00:

This is the only RS-232 serial printer that I could find that still has an internal real time clock. Even though there is no support on Windows 7 and later, there is a simple command set that allows custom controls to be created to support the printer setup and configuration.
