Full specifications (PDF)
Recommended Use:
Label Print
Maximum Mono Print Speed:
3 in/s
Maximum Print Width:
4.10"
Application/Usage:
Mobile
Features:
- Hand Strap
- Shoulder Strap

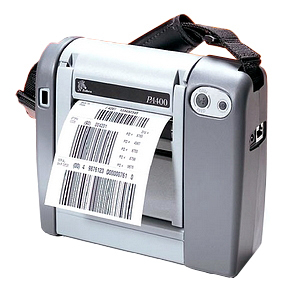

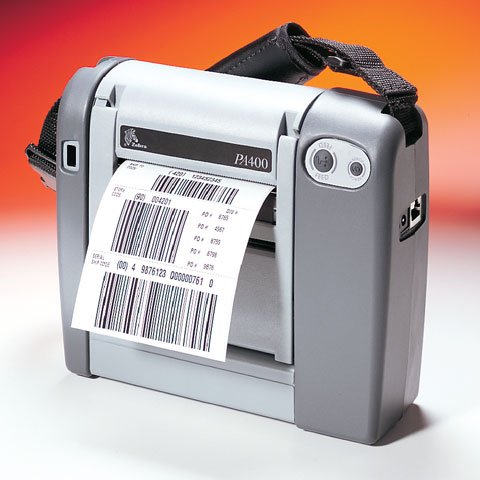

Zebra PA403 Portable Barcode Printer Model Overview
The PA403 mobile label printer provides consistent print quality, long battery life and user-friendly innovations such as easy snap-in media loading. Internal shock mounting, spring-loaded doors and rugged housing protect these printers from drops (up to four feet), bumps and bruises that come with printing on-the-go. The PA403 is perfect for moderate volume printing needs in indoor/outdoor, industrial manufacturing applications such as: shelf labeling, bin labeling, product identification and route accounting. All units ship with one user's manual.
Zebra PA403-010-21100 Portable Barcode Printer Overview
Lightweight thermal printer to keep your business moving. The PA403 mobile label printer provides consistent print quality, long battery life and user-friendly innovations such as easy snap-in media loading. Internal shock mounting, spring-loaded doors and rugged housing protect this printer from the drops (up to four feet), bumps and bruises that come with printing on-the-go. The PA403 is perfect for moderated volume printing needs in indoor/outdoor, industrial manufacturing applications such as: shelf labeling, bin labeling, product identification and route accounting. With the PA403 users can harness the power of Zebra BASIC interpreter's (ZBI) built-in American National Standards Institute (ANSI) BASIC interpreter, allowing users to easily create BASIC programs that solve difficult printing problems and ease integration issues.
Technical Information
Memory
Standard Memory:
2 MB
Flash Memory:
2 MB
Media Types & Handling
Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
Maximum Roll Diameter:
2.10"
Maximum Label Width:
4.25"
Maximum Label Length:
10"
Label Core Size:
1"
Fonts & Emulation
Language Emulation:
ZPL II
Physical Characteristics
Form Factor:
Portable
Height:
7.9"
Width:
9.2"
Depth:
2.9"
Miscellaneous
Package Contents:
- PA403 Mobile Label Printer
- 1400mAh Batter
- 120V Charger
- RJ-45 to DB9 Cable
Certifications & Standards:
- FCC Class A
- CE Class A
- CE Class B
- UL
- CB
- C-Tick
- CISPR 22 Class B
- CSA 22.2 No. 950-95
- IEC 950 EN 60950 EN 50082-1:1997
- Canadian Doc Class A
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43212108
Questions? Get help from a
Printer Expert!
Printer Expert!
The Zebra PA403-010-21100 Portable Barcode Printer is also known as
ZEB-PA40301021100
