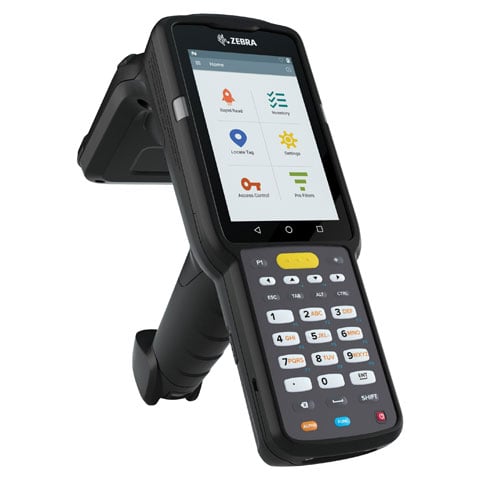

Zebra MC339U-GF2EG4FT RFID Reader
Full specifications (PDF)
Zebra MC3390xR RFID Reader Model Overview

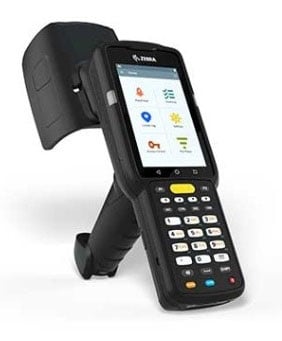

The MC3390xR Integrated Long-Range Handheld UHF RFID Reader from Zebra Technologies represents the pinnacle of efficiency in inventory management and order fulfillment. Designed with an advanced Android platform, it boasts a lightweight, ergonomic body that enhances user experience. The device features an unparalleled read range of over 60 ft, making inventory capturing faster and more accurate. Additionally, its durable design and long-lasting 7000mAh battery ensure reliability in semi-industrial environments while facilitating seamless data entry through a customizable touchscreen and keypad.
Key Features
- Integrated long-range RFID reader with a read range exceeding 60 ft.
- Powerful Android platform with an ultra-fast 2.2 GHz octa-core processor.
- Lightweight ergonomic design for comfortable one-handed operation.
- IP54-rated durability resistant to dust and splashes.
- 7000mAh battery delivers extended use with fewer recharges.
- Seamless NFC integration for quick pairing with other Zebra devices.
Specifications
- Dimensions: 6.45 in. L x 3.78 in. W x 10.67 in. D
- Weight: 26.2 oz./743 g (SE4770), 27.1 oz./769 g (SE4850)
- Display: 4-inch (800 x 480) WVGA color display with Corning Gorilla Glass
- Memory: 4 GB RAM / 32 GB Flash
- Operating System: Android 11, upgradeable to Android 14
- Battery: 7000mAh rechargeable Li-Ion; full charge in < 5 hours
- Drop Specification: 5 ft./1.5 m drops to concrete
- Humidity: 5% to 95% (non-condensing)
- RFID Engine: Zebra Proprietary Radio Technology, >900 tags/sec
- Bluetooth: Class 2, Bluetooth v5.0
Recommended Accessories
Category
- Batteries (6)
- Cables, Connectors, and Adapters (3)
- Carrying and Protective Accessories (12)
- Docks and Cradles (8)
- Mounting Hardware and Stands (3)
- Power Device (19)
- Scan Handles (2)
- Screen Protector (1)
- Spare Parts (1)
- Stylus (1)
Recommended Accessories for Model: Zebra MC339U-GF2EG4FT RFID Reader
Top Batteries Purchased With Zebra MC339U-GF2EG4FT
-
Zebra BTRY-MC33-52MA-10 BatteryBatteries, Zebra, Battery-Pack, Lithium Ion, PP+ MC3300 High Capacity Battery Qty-10In Stock$1,239.50 -
Zebra BTRY-MC33-52MA-01 BatteryBatteries, Zebra, Battery-Pack, Lithium Ion, PP+ MC3300 High Capacity Battery Qty-1In Stock$145.66 -
Zebra BTRY-MC33-27MA-01 BatteryBatteries, Zebra, Battery-Pack, Lithium Ion, PP+ MC3300 Standard Capacity Battery Qty-1Item on backorder — chat for lead time$90.71
Top Cables, Connectors, and Adapters Purchased With Zebra MC339U-GF2EG4FT
-
Zebra 25-124330-01R Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Zebra, This Is A Micro-USB Active-Sync Cable That Allows For Active-Sync Connectivity Between The Mobile Computer In A Single-Slot Or Two-Slot Cradle And A Host Device, This Cable Is Typically Used With A Single-Slot USB/Charging Cradle And The Length Is Approximately 48".In Stock$17.76 -
Zebra ADP-MC33-CRDCUP-01 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Zebra, MC33 Charge Only Adapter, Allows To Charge A MC33 Device On Any MC32 Cradle Cup, The Adapter Can Be Installed On Any Single Or Multi-Slot MC32 Cradle (Doesn't Provide USB Or Ethernet Communication)Item on backorder — chat for lead time$40.70 -
Zebra CBL-MC33-USBCHG-01 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Zebra, MC33 USB And Charge Cable, Provides Fast-Charge When A MC33+ Battery And A Wall Adapter Is Used, It Also Allows USB Communication To The Device When Connected To A Pc, Requires, Wall Adapter PWR-WUA5V12W0UsIn Stock$130.87
Top Carrying and Protective Accessories Purchased With Zebra MC339U-GF2EG4FT
-
Zebra 58-40000-007R Carrying and Protective AccessoriesCarrying and Protective Accessories, Zebra, Universal Shoulder Strap.In Stock$18.94 -
Zebra SG-MC3021212-01R Carrying and Protective AccessoriesCarrying and Protective Accessories, Zebra, MC30/MC31/MC32 Fabric Holster For Gun ConfigurationsIn Stock$89.58 -
Zebra 11-08062-02R Carrying and Protective AccessoriesCarrying and Protective Accessories, Zebra, Universal Rugged Belt For Hip Holster.In Stock$49.03
Top Docks and Cradles Purchased With Zebra MC339U-GF2EG4FT
-
Zebra CRD-MC33-4SC4BC-01 Docks and CradlesDocks and Cradles, Zebra, 4-Slot Charge Only Cradle With 4-Slot Spare Battery Charger, Charges Up To 4 Devices And Up To 4 Spare Batteries On The Same Cradle, Cradles Require, Power Supply PWR-BGA12V108W0WW, DC Cord CBL-DC381A1-01 And Country Specific 3 Wire AC Line Cord.In Stock$947.19 -
Zebra CRD-MC33-5SETH-01 Docks and CradlesDocks and Cradles, Zebra, MC33 5Slot Ethernet ShareCradle, Requires, Level Vi Power Supply PWR-BGA12V108W0WW, DC Cord CBL-DC-381A1-01 And Country Specific 3 Wire AC Line Cord.Item on backorder — chat for lead time$1,139.71 -
Zebra CRD-MC33-4SE4BC-01 Docks and CradlesDocks and Cradles, Zebra, MC33 4Slot Ethernet ShareCradle With 4Slot BTRY Charger, Requires, Level Vi Power Supply PWR-BGA12V108W0WW, DC Cord CBL-DC-381A1-01 And Country Specific 3 Wire AC Line Cord.Item on backorder — chat for lead time$1,425.89
Top Mounting Hardware and Stands Purchased With Zebra MC339U-GF2EG4FT
-
Zebra BRKT-SCRD-SMRK-01 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, A Rack/Wall Mounting Bracket, For One Five-Slot ShareCradle, Up To Four Single-Slot ShareCradles, Or Up To Four 4-Slot Battery Chargers, It Can Be Mounted On Standard 19 Network Rack Or On A Wall, Includes Cable Routing-Slots, Removable Power Supply Tray And Screws Required For Installation.In Stock$216.82 -
Zebra SG-MC33-RBTG-02 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, MC3300R Rubber Boot For RFID GunItem on backorder — chat for lead time$13.22 -
Zebra SG-MC33-RBTG-03 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, MC3300R Short Rubber Boot For RFID GunItem on backorder — chat for lead time$13.22
Top Power Device Purchased With Zebra MC339U-GF2EG4FT
-
Zebra 23844-00-00R Power DevicePower Device, Zebra, AC Line Cord, Grounded, 7.5 Feet Or 2.3 Meters, 3-Prong, Associated Countries, Canada, Mexico, United States.In Stock$12.36 -
Zebra 50-16000-220R Power DevicePower Systems & Supplies, Motorola, AC Line Cord, 1.8M, grounded, three wire CEE 7/7plug. Associated Countries: Europe, Abu Dhabi, Bolivia, Dubai, Egypt, Iran, Korea, Russia, VietnamIn Stock$23.16 -
Motorola 50-16000-669R Power DevicePower Systems & Supplies, Motorola, AC Line Cord, 1.9 M grounded, three wire, BS 546 Plug. Associated Country: IndiaItem on backorder — chat for lead time$22.28
Top Scan Handles Purchased With Zebra MC339U-GF2EG4FT
-
Zebra 3PTY-TIS-MC33TGHD Scan HandleScan Handles, Zebra, MC33-R/S Snap On Trigger HandleItem on backorder — chat for lead time$481.71 -
Zebra 3PTY-TIS-MC33TGHD Scan HandleScan Handles, Zebra, MC33-R/S Snap On Trigger HandleItem on backorder — chat for lead time$475.22
Top Screen Protector Purchased With Zebra MC339U-GF2EG4FT
-
Zebra MISC-MC33-SCRN-01 Carrying and Protective AccessoriesCarrying and Protective Accessories, Zebra, MC33 Tempered Glass Screen Protector--Pack Of 5 UnitsIn Stock$82.65
Top Spare Parts Purchased With Zebra MC339U-GF2EG4FT
-
Zebra MNT-MC33-FLCHKT-01 Spare PartsMC33 UN-POWERED FORKLIFT MOUNT KIT. INCLUDES FORKLIFT MOUNT HOLDER, RAM DOUBLE SOCKET ARM AND RAM FORKLIFT CLAMP.Item on backorder — chat for lead time$960.42
Top Stylus Purchased With Zebra MC339U-GF2EG4FT
-
Zebra SG-TC7X-STYLUS-03 StylusStylus, Zebra, Set Of Three Styluses (Sg-TC7X-STYLUS1-03) And Three Coiled Tethers (KT-TC7X-Tethr1-03).In Stock$72.03
Frequently Asked Questions
What is the maximum RFID read range of the Zebra MC3390xR?
The Zebra MC3390xR delivers an impressive nominal read range of 60+ feet (18.2+ meters), which is 200% farther than the next leading competitor. This best-in-class long-range performance is enabled by the integrated linear polarized antenna and Zebra's proprietary high-performance ASIC radio technology, making it ideal for efficient inventory counts across large warehouse spaces.
Can the MC339U-GF2EG4FT scan both RFID tags and barcodes?
Yes, the MC3390xR integrates both RFID and barcode scanning capabilities in a single device. It includes the SE4750MR 2D imager for barcode scanning, eliminating the need for workers to carry separate devices for RFID tag capture and barcode reading. This unified data capture approach improves efficiency in inventory management and order fulfillment operations.
What are the durability specifications for the MC3390xR in warehouse environments?
The MC3390xR is built for semi-industrial environments with a 5 ft. (1.5 m) drop specification and IP54 sealing to handle splashing liquid and dust. The device features Corning Gorilla Glass on both the touch panel and imager window for maximum scratch-resistance and shatter-proofing, ensuring reliable operation despite inevitable drops and spills in warehouse settings.
How fast can the MC3390xR read RFID tags?
The MC3390xR achieves a fastest read rate of 900+ tags per second, delivering over 25% faster read speed and 40% greater accuracy compared to other devices in its class. This high-performance throughput, combined with Zebra's superior sensitivity technology, enables more frequent and accurate inventory-count operations for better on-the-floor and distribution inventory management.
What wireless connectivity options does the MC339U-GF2EG4FT support?
The MC3390xR features comprehensive Wi-Fi connectivity with IEEE 802.11 a/b/g/n/ac standards, supporting data rates up to 866.7 Mbps on 5GHz and 300 Mbps on 2.4GHz. It also includes integrated NFC reading capability and supports both IPv4 and IPv6 protocols with 2x2 MU-MIMO technology for reliable enterprise-grade wireless performance.
What industries and applications is the MC3390xR designed for?
The MC3390xR is optimized for supply chain, warehousing, and manufacturing environments. Key applications include cross-docking, inventory cycle counting, automatic replenishment, receiving and shrink control, omni-channel order fulfillment, work-in-progress tracking, and parts and finished goods inventory management. Its long-range RFID and barcode capabilities make it ideal for item tracking and locationing across distribution networks.
