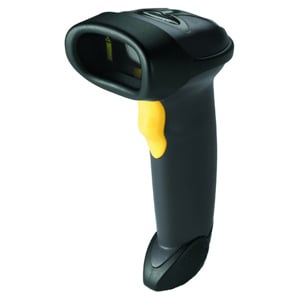

Zebra LS2208 – Barcode Scanner – Scanner with Cable and Stand

Part Number: LS2208-SR20007R-UR
Model: LS2208
3-year Premium Plus ($78.99)
3-year Premium ($24.29)
No Support
$155.03
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D
Barcode Symbology Supported
UPC/EANUPC/EAN SupplementalsUCC/EAN 128Code 39Code 39 Full ASCIICode 39 TriOpticCode 128Code 128 Full ASCIICodabarInterleaved 2 of 5Discrete 2 of 5Code 93MSICode 11IATARSS VariantsChinese 2 of 5
Light Source
Laser

Product Description:

  Barcode Scanner, Zebra LS2208, Black with Stand USB Kit: LS2208-SR20007R Scanner, CBA-U01-S07ZAR USB Cable, 20-61019-02R Stand

Zebra LS2208 Barcode Scanner Model Overview

The Zebra LS1203-HD handheld scanner offers exceptional value for daily scanning needs, specifically designed for electronics manufacturers to efficiently read small, high-density 1-D barcodes on PCB assemblies. Its user-friendly ergonomics and robust construction ensure comfort during extensive use while minimizing maintenance costs and downtime. With quick and accurate data capture capabilities right out of the box, employees can start using it with virtually no training. This scanner, recognized for its reliability, enhances productivity on the factory floor and supports integration with existing POS systems.
Key features:
  • Durable Construction: Single board construction designed to withstand 5 ft. drops.
  • Multiple Interfaces: Features RS232, USB, and keyboard wedge for flexibility.
  • Ergonomic Design: Lightweight and balanced for reduced user fatigue.
  • Intuitive Plug-and-Play: Quick setup and minimal training required.
  • High-Quality Scanning: Reads 1-D barcodes accurately in both triggered and Auto-Scan modes.

Specifications:
  • Dimensions: 2.4 in. H x 7.1 in. L x 2.4 in. W (6.2 cm H x 18 cm L x 6 cm W)
  • Weight: Approximately 4.3 oz. (122 g)
  • Operating Temp: 32° to 122°F (0° to 50°C)
  • Storage Temp: -40° to 158°F (-40° to 70°C)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Scan Rate: 100 scans per second
  • Decode Capability: Supports various 1-D barcode formats such as UPC/EAN and Code 39
  • Power Source: Host power or external power supply
  • Warranty: 3 years against defects in workmanship and materials
Zebra LS2208-SR20007R-UR Barcode Scanner Overview

OUR BEST SELLING HANDHELD LASER SCANNER

With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all - enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 - the well-proven scanner powering the checkout lines all around the world.

Durable construction
With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.

Capture high-density bar codes for greater application flexibility
With just one scanner, you can capture the high density bar codes common on small items.

Deploy in every corner of the world
With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.

Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.

Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.

All day comfort your workers can count on
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.

Flexible handheld or hands-free operation
The optional IntellistandTM enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.

Multiple interfaces
No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.

Truly plug-and-play
The universal cable connects to any computing environment, practically eliminating setup and training time.

Advanced Data Formatting (ADF)
Format data properly before it is sent to your host computer, eliminating the costly modification of host software.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS Variants
  • Chinese 2 of 5
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
100 scan/s
Scan Pattern:
Single Line
Scanner Range:
Standard Range
Scanning Distance:
17"
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
60°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
30°
Maximum Ambient Light:
86111 lux
Drop Specification:
Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast:
20%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
40 mil
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Power Source:
USB
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Color Family:
Black
Product Color:
Black
Height:
6"
Width:
2.5"
Depth:
3.3"
Weight (Approximate):
5.15 oz
Miscellaneous
Package Contents:
  • Symbol LS2208 Bar Code Reader
  • USB Cable
  • Gooseneck Stand
Ingress Protection (IP) Rating:
IP30
Application/Usage:
  • Retail
  • Education
Platform Supported:
PC
Certifications & Standards:
  • Environmental: RoHS 2002/95/EEC

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • Taiwan EMC
  • Japan VCCI/MITI/Dentori

Laser Safety::

  • CDRH Class II
  • IEC Class 2
Country of Origin:
Mexico
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0683728137366, 0818231834963, 0853585465005, 5711045247927, 8437016535172
UPC: 683728137366, 818231834963, 843715114248, 853585465005
EAN: 0683728137366, 0818231834963, 0853585465005, 5711045247927, 8437016535172
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (55)
  • Computer Accessories (2)
  • Miscellaneous (1)
  • Mobile Computer Accessories (2)
  • Mounting Hardware and Stands (6)
  • Power Device (7)
  • Scanner Accessories (13)
  • Spare Parts (2)

Recommended Accessories for Model: Zebra LS2208-SR20007R-UR Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Zebra LS2208-SR20007R-UR

See All Cables, Connectors, and Adapters for Zebra LS2208-SR20007R-UR Barcode Scanner >

Top Computer Accessories Purchased With Zebra LS2208-SR20007R-UR

  • Symbol 25-54570-40 Accessory
    Symbol 25-54570-40 Accessory
    PS/2 keyboard wedge cable, 6ft (straight)
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase
  • Symbol 25-62417-23 Accessory
    Symbol 25-62417-23 Accessory
    PS/2 keyboard wedge cable, 20ft (coiled). Requires power supply
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase

Top Miscellaneous Purchased With Zebra LS2208-SR20007R-UR

Top Mobile Computer Accessories Purchased With Zebra LS2208-SR20007R-UR

Top Mounting Hardware and Stands Purchased With Zebra LS2208-SR20007R-UR

See All Mounting Hardware and Stands for Zebra LS2208-SR20007R-UR Barcode Scanner >

Top Power Device Purchased With Zebra LS2208-SR20007R-UR

See All Power Device for Zebra LS2208-SR20007R-UR Barcode Scanner >

Top Scanner Accessories Purchased With Zebra LS2208-SR20007R-UR

  • Symbol CBA-U14-C09ZAR Accessory
    Symbol CBA-U14-C09ZAR Accessory
    Cable; 9 feet, USB, Power Plus, Coiled (PowerPlus USB is non-standard, please call for more information.)
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase
  • Motorola CBA-R11-C09ZAR Accessory
    Motorola CBA-R11-C09ZAR Accessory
    9 Feet, Universal Style RS232 Nixdorf Beetle, Coiled Cable
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase
  • Motorola PWRS-14000-253R Accessory
    Motorola PWRS-14000-253R Accessory
    Power supply, 5VDC/850ma (For Use in US, Ca, Mx, Br, Jp, Tw). Includes line cord. Power supply for the Motorola LI4278 barcode scanner.
    Item on backorder — chat for lead time
    Please Call for Pricing or to Purchase
See All Scanner Accessories for Zebra LS2208-SR20007R-UR Barcode Scanner >

Top Spare Parts Purchased With Zebra LS2208-SR20007R-UR

Frequently Asked Questions

The LS2208 is Zebra's best-selling handheld laser scanner with over eight million units deployed worldwide, proven in demanding retail and warehouse settings. It combines enterprise-class scanning performance with an ergonomic, lightweight design that delivers all-day comfort, plus an extra-long read range that makes scanning easier across various distances. We offer the LS2208-SR20007R model with a universal USB cable and stand, making it ready to deploy in virtually any environment.

The LS2208 supports all everyday 1D barcode formats, including high-density barcodes, making it versatile for retail, warehouse, and logistics applications. Its laser scanning technology ensures reliable reading across standard and dense barcode variations. Contact us today to confirm specific barcode symbologies for your application.

Yes, the LS2208-SR20007R is designed for plug-and-play simplicity with multiple interface options and a universal USB cable (CBA-U01-S07ZAR) included in this kit. It supports keyboards in 97 languages, making it compatible with systems worldwide. We can help you verify integration with your specific IT infrastructure—contact us today for compatibility details.

This kit includes the LS2208-SR20007R scanner in black, the CBA-U01-S07ZAR universal USB cable, and the 20-61019-02R stand for hands-free operation. Everything you need is included for immediate deployment. Visit barcodesinc.com or contact us today if you need additional accessories or configuration options.

The LS2208 is engineered with an ergonomic and durable lightweight design specifically built for enterprise-class performance in demanding environments like warehouses and retail checkout lines. Its proven track record of over eight million units in active use demonstrates its durability and reliability. We offer this scanner because it withstands the rigors of continuous daily scanning operations.

The LS2208 features an extra-long read range that enables easy scanning from various distances, reducing operator strain and improving scanning efficiency in warehouse and retail applications. This extended range capability is one of the key advantages that has made it Zebra's best-selling handheld laser scanner. For specific read distance specifications for your use case, contact us today.

The Zebra LS2208-SR20007R-UR Barcode Scanner is also known as SYM-LS2208SR20007RUR or LS2208SR20007RUR.
