Zebra LS2208 – Barcode Scanner – Corded – 1D – Scanner with Cable and Stand

Part Number: LS2208-SR20007R-NA
Model: LS2208
to get Free Ground Shipping on your order.
3-year Premium Plus ($85.35)
3-year Premium ($30.65)
No Support
Add to My Shopping List Add to Compare
$155.03
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

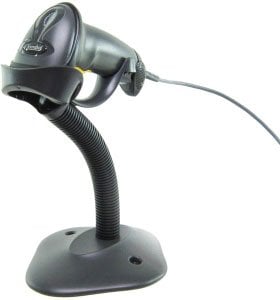

  Corded Barcode Scanner, Symbol LS2208, 1D Laser, General Purpose, Includes Stand/USB, Handheld, Standard Range, IP30, Black, North America. USB Kit includes: LS2208-SR20007NA Scanner, CBA-U01-S07ZAR USB Cable and 20-61019-02R Stand.
Explore all Zebra LS2208 Barcode Scanners
Add to Quote
Zebra LS2208-SR20007R-NA Barcode Scanner
Zebra LS2208-SR20007R-NA Barcode Scanner
Zebra LS2208-SR20007R-NA Barcode Scanner
Zebra LS2208-SR20007R-NA Barcode Scanner
Zebra LS2208-SR20007R-NA Barcode Scanner Zebra LS2208-SR20007R-NA Barcode Scanner Zebra LS2208-SR20007R-NA Barcode Scanner

Full specifications (PDF)

Zebra LS2208 Barcode Scanner Model Overview

The Zebra LS1203-HD handheld scanner offers exceptional value for daily scanning needs, specifically designed for electronics manufacturers to efficiently read small, high-density 1-D barcodes on PCB assemblies. Its user-friendly ergonomics and robust construction ensure comfort during extensive use while minimizing maintenance costs and downtime. With quick and accurate data capture capabilities right out of the box, employees can start using it with virtually no training. This scanner, recognized for its reliability, enhances productivity on the factory floor and supports integration with existing POS systems.
Key features:
  • Durable Construction: Single board construction designed to withstand 5 ft. drops.
  • Multiple Interfaces: Features RS232, USB, and keyboard wedge for flexibility.
  • Ergonomic Design: Lightweight and balanced for reduced user fatigue.
  • Intuitive Plug-and-Play: Quick setup and minimal training required.
  • High-Quality Scanning: Reads 1-D barcodes accurately in both triggered and Auto-Scan modes.

Specifications:
  • Dimensions: 2.4 in. H x 7.1 in. L x 2.4 in. W (6.2 cm H x 18 cm L x 6 cm W)
  • Weight: Approximately 4.3 oz. (122 g)
  • Operating Temp: 32° to 122°F (0° to 50°C)
  • Storage Temp: -40° to 158°F (-40° to 70°C)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Scan Rate: 100 scans per second
  • Decode Capability: Supports various 1-D barcode formats such as UPC/EAN and Code 39
  • Power Source: Host power or external power supply
  • Warranty: 3 years against defects in workmanship and materials
Zebra LS2208-SR20007R-NA Barcode Scanner Overview
The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range -from near-contact to 17 inches - makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems
Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UPC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • GS1 DataBar (Formerly RSS) Variants
  • Chinese 2 of 5
Light Source:
Laser
Scan Rate:
100 scan/s
Depth of Field:
  • 6.00cm - 15.25cm@5mil - Code 39
  • 3.80cm - [email protected] - Code 39
  • 2.54cm - 14.25cm@10mil - Code 39
  • 0cm - 43.00cm@13mil - 100% UPC
  • 0cm - 58.50cm@20mil - Code 39
  • 0cm - 76.00cm@40mil - Code 39
Scan Pattern:
Bi-directional
Cable Type Included:
USB
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
Twilight Black
Height:
6"
Width:
2.5"
Depth:
3.3"
Weight (Approximate):
5.15 oz
Miscellaneous
Package Contents:
  • 1 x LS2208 General Purpose Bar Code Scanner
  • 1 x CBA-U01-S07ZAR USB Cable
  • 1 x 20-61019-02R Stand
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Mexico
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0748434004385
UPC: 748434004385
EAN: 0748434004385
UNSPSC: 43211701
