- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- IATA
- RSS Variants
- Chinese 2 of 5

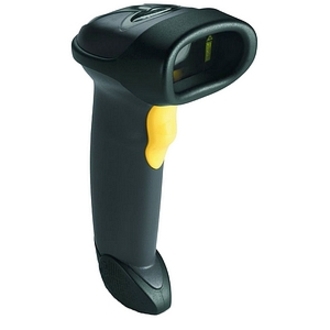

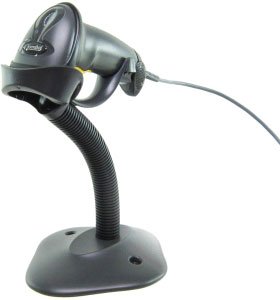

Zebra LS2208 – Barcode Scanner – Corded – 1D – Scanner with Cable and Stand
Zebra LS2208 Barcode Scanner Model Overview
Key features:
- Durable Construction: Single board construction designed to withstand 5 ft. drops.
- Multiple Interfaces: Features RS232, USB, and keyboard wedge for flexibility.
- Ergonomic Design: Lightweight and balanced for reduced user fatigue.
- Intuitive Plug-and-Play: Quick setup and minimal training required.
- High-Quality Scanning: Reads 1-D barcodes accurately in both triggered and Auto-Scan modes.
Specifications:
- Dimensions: 2.4 in. H x 7.1 in. L x 2.4 in. W (6.2 cm H x 18 cm L x 6 cm W)
- Weight: Approximately 4.3 oz. (122 g)
- Operating Temp: 32° to 122°F (0° to 50°C)
- Storage Temp: -40° to 158°F (-40° to 70°C)
- Humidity: 5% to 95% relative humidity, non-condensing
- Scan Rate: 100 scans per second
- Decode Capability: Supports various 1-D barcode formats such as UPC/EAN and Code 39
- Power Source: Host power or external power supply
- Warranty: 3 years against defects in workmanship and materials
The LS2208 handheld scanner from Symbol Technologies offers high performance scanning at a moderate price point. From the retail point-of-sale and back-room to the patient bedside or school book checkout, the LS2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership (TCO).
- Symbol LS2208 Bar Code Reader
- Keyboard Wedge Cable
- Gooseneck Stand
Supported Interfaces:
- Environmental: RoHS 2002/95/EEC
Electrical Safety:
- UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Taiwan EMC
- Japan VCCI/MITI/Dentori
Laser Safety::
- CDRH Class II
- IEC Class 2
