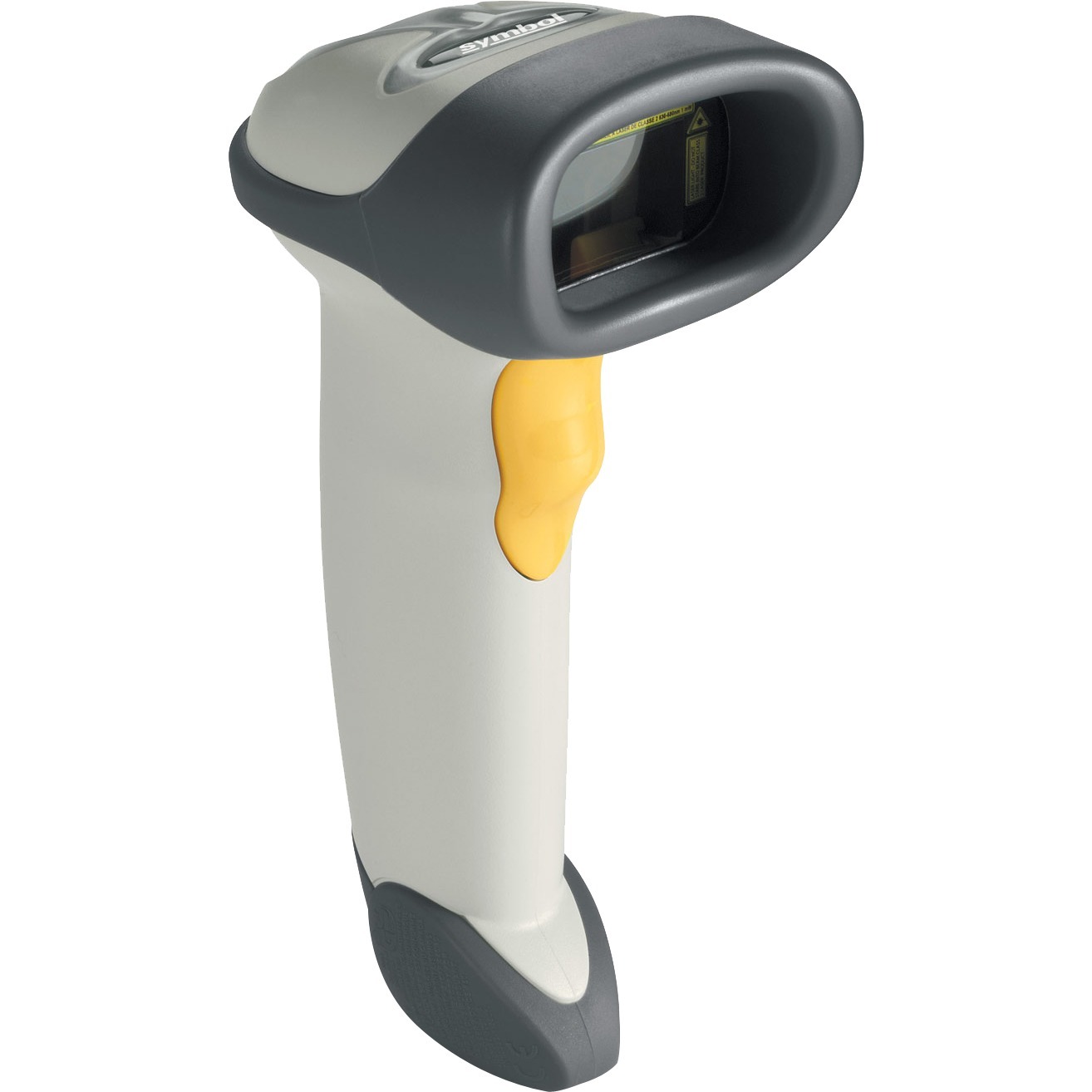

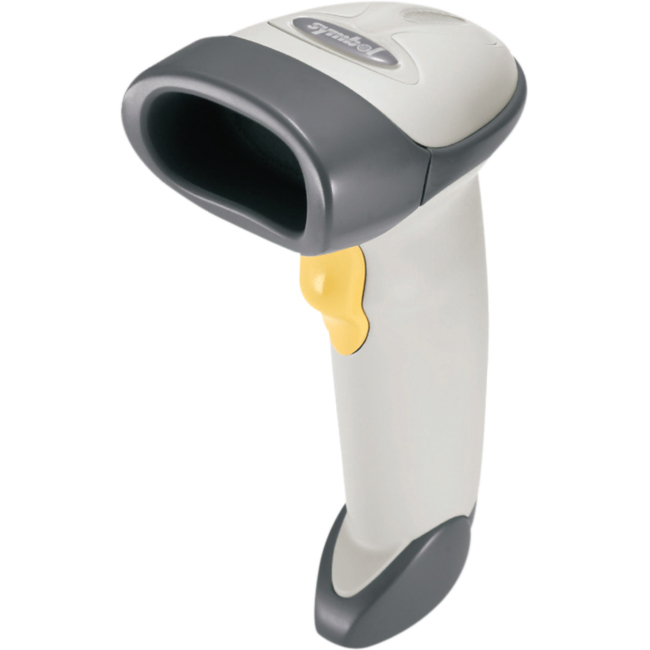

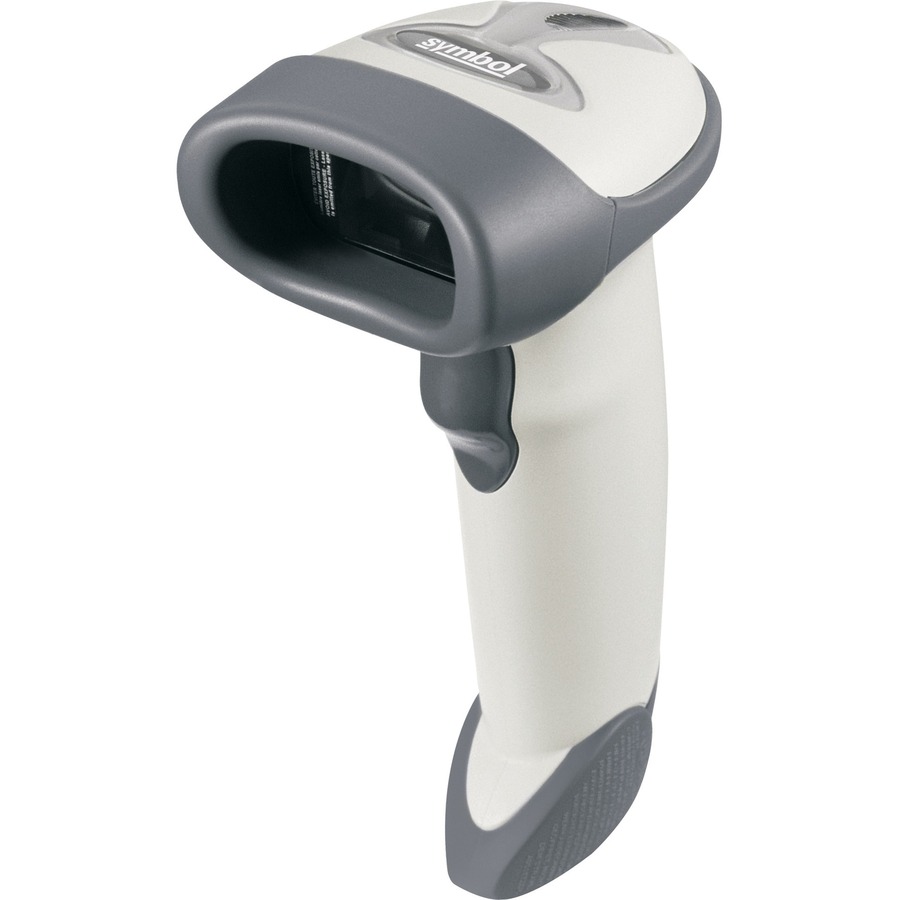

Zebra LS2208 – Barcode Scanner – Scanner with Cable and Stand

Part Number: LS2208-SR20001R-UR
Model: LS2208
to get Free Ground Shipping on your order.
$155.03
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D
Barcode Symbology Supported
UPC/EANUPC/EAN SupplementalsUCC/EAN 128Code 39Code 39 Full ASCIICode 39 TriOpticCode 128Code 128 Full ASCIICodabarInterleaved 2 of 5Discrete 2 of 5Code 93MSICode 11IATARSS VariantsChinese 2 of 5
Light Source
Laser

Product Description:

  Barcode Scanner, Zebra LS2208, White with Stand USB Kit: LS2208-SR20001R Scanner, CBA-U01-S07ZAR USB Cable, 20-61019-01R Stand

Zebra LS2208 Barcode Scanner Model Overview

The Zebra LS1203-HD handheld scanner offers exceptional value for daily scanning needs, specifically designed for electronics manufacturers to efficiently read small, high-density 1-D barcodes on PCB assemblies. Its user-friendly ergonomics and robust construction ensure comfort during extensive use while minimizing maintenance costs and downtime. With quick and accurate data capture capabilities right out of the box, employees can start using it with virtually no training. This scanner, recognized for its reliability, enhances productivity on the factory floor and supports integration with existing POS systems.
Key features:
  • Durable Construction: Single board construction designed to withstand 5 ft. drops.
  • Multiple Interfaces: Features RS232, USB, and keyboard wedge for flexibility.
  • Ergonomic Design: Lightweight and balanced for reduced user fatigue.
  • Intuitive Plug-and-Play: Quick setup and minimal training required.
  • High-Quality Scanning: Reads 1-D barcodes accurately in both triggered and Auto-Scan modes.

Specifications:
  • Dimensions: 2.4 in. H x 7.1 in. L x 2.4 in. W (6.2 cm H x 18 cm L x 6 cm W)
  • Weight: Approximately 4.3 oz. (122 g)
  • Operating Temp: 32° to 122°F (0° to 50°C)
  • Storage Temp: -40° to 158°F (-40° to 70°C)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Scan Rate: 100 scans per second
  • Decode Capability: Supports various 1-D barcode formats such as UPC/EAN and Code 39
  • Power Source: Host power or external power supply
  • Warranty: 3 years against defects in workmanship and materials
Zebra LS2208-SR20001R-UR Barcode Scanner Overview

OUR BEST SELLING HANDHELD LASER SCANNER

With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all - enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 - the well-proven scanner powering the checkout lines all around the world.

Durable construction
With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.

Capture high-density bar codes for greater application flexibility
With just one scanner, you can capture the high density bar codes common on small items.

Deploy in every corner of the world
With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.

Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.

Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.

All day comfort your workers can count on
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.

Flexible handheld or hands-free operation
The optional IntellistandTM enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.

Multiple interfaces
No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.

Truly plug-and-play
The universal cable connects to any computing environment, practically eliminating setup and training time.

Advanced Data Formatting (ADF)
Format data properly before it is sent to your host computer, eliminating the costly modification of host software.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS Variants
  • Chinese 2 of 5
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
100 scan/s
Scan Pattern:
Bi-directional
Scanning Distance:
29.92"
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
60°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
30°
Maximum Ambient Light:
86111 lux
Drop Specification:
Unit functions normally after repeated 5 ft./1.5 m drops to concrete
Minimum Print Contrast:
20%
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
40 mil
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color Family:
White
Product Color:
White
Height:
6"
Width:
2.5"
Depth:
3.3"
Weight (Approximate):
5.15 oz
Miscellaneous
Package Contents:
  • Symbol LS2208 Bar Code Reader
  • USB Cable
  • Gooseneck Stand
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse

USB Cable separate

Compatibility:
  • IBM 468x/469x terminals.
Ingress Protection (IP) Rating:
IP30
Application/Usage:
  • Retail
  • Education
Platform Supported:
PC
Certifications & Standards:
  • Environmental: RoHS 2002/95/EEC

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • Taiwan EMC
  • Japan VCCI/MITI/Dentori

Laser Safety::

  • CDRH Class II
  • IEC Class 2
Country of Origin:
Mexico
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0033587458421, 5711045226632
UPC: 033587458421
EAN: 0033587458421, 5711045226632
UNSPSC: 43211701
