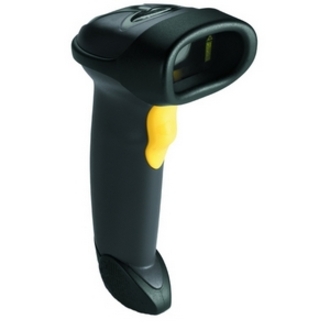

Zebra LS2208 – Barcode Scanner – Corded – 1D – Scanner with Cable and Stand

Part Number: LS2208-7AZM0100SR
Model: LS2208
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
IBM 468x/9x Port 9B
Scanner Capability
1D

Product Description:

  Corded Barcode Scanner, Symbol LS2208, 1D Laser, General Purpose, Includes Stand, Handheld, Standard Range, IP30, Black, Worldwide. Kit Includes: Scanner (Part# LS2208-SR30007R ), IBM 468x/9x Port 9B Cable (Part# CBA-M61-S07ZAR), Stand (Part# 20-61019-02R).
Explore all Zebra LS2208 Barcode Scanners
Add to Quote
Zebra LS2208-7AZM0100SR Barcode Scanner
Zebra LS2208-7AZM0100SR Barcode Scanner
Zebra LS2208-7AZM0100SR Barcode Scanner
Zebra LS2208-7AZM0100SR Barcode Scanner
Zebra LS2208-7AZM0100SR Barcode Scanner
Zebra LS2208-7AZM0100SR Barcode Scanner Zebra LS2208-7AZM0100SR Barcode Scanner Zebra LS2208-7AZM0100SR Barcode Scanner Zebra LS2208-7AZM0100SR Barcode Scanner

Full specifications (PDF)

Zebra LS2208 Barcode Scanner Model Overview

The Zebra LS1203-HD handheld scanner offers exceptional value for daily scanning needs, specifically designed for electronics manufacturers to efficiently read small, high-density 1-D barcodes on PCB assemblies. Its user-friendly ergonomics and robust construction ensure comfort during extensive use while minimizing maintenance costs and downtime. With quick and accurate data capture capabilities right out of the box, employees can start using it with virtually no training. This scanner, recognized for its reliability, enhances productivity on the factory floor and supports integration with existing POS systems.
Key features:
  • Durable Construction: Single board construction designed to withstand 5 ft. drops.
  • Multiple Interfaces: Features RS232, USB, and keyboard wedge for flexibility.
  • Ergonomic Design: Lightweight and balanced for reduced user fatigue.
  • Intuitive Plug-and-Play: Quick setup and minimal training required.
  • High-Quality Scanning: Reads 1-D barcodes accurately in both triggered and Auto-Scan modes.

Specifications:
  • Dimensions: 2.4 in. H x 7.1 in. L x 2.4 in. W (6.2 cm H x 18 cm L x 6 cm W)
  • Weight: Approximately 4.3 oz. (122 g)
  • Operating Temp: 32° to 122°F (0° to 50°C)
  • Storage Temp: -40° to 158°F (-40° to 70°C)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Scan Rate: 100 scans per second
  • Decode Capability: Supports various 1-D barcode formats such as UPC/EAN and Code 39
  • Power Source: Host power or external power supply
  • Warranty: 3 years against defects in workmanship and materials
Zebra LS2208-7AZM0100SR Barcode Scanner Overview

The LS2208 handheld scanner from Symbol Technologies offers high performance scanning at a moderate price point. From the retail point-of-sale and back-room to the patient bedside or school book checkout, the LS2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership (TCO).

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS Variants
  • Chinese 2 of 5
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
100 scan/s
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
IBM 46XX
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
6"
Width:
2.5"
Depth:
3.3"
Weight (Approximate):
5.15 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse

USB Cable separate

Platform Supported:
PC
Item Numbers
GTIN: 0013508120651, 0133588112169
UPC: 013508120651, 133588112169
EAN: 0013508120651, 0133588112169
UNSPSC: 43211701
