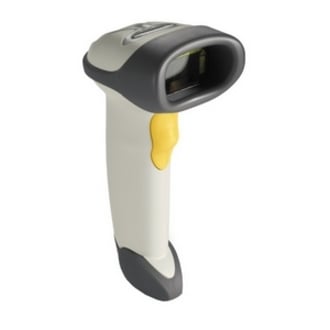

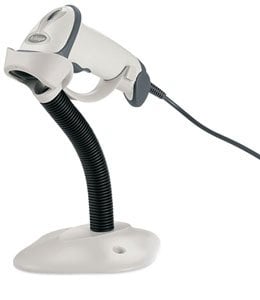

Zebra LS2208 – Barcode Scanner – Corded – 1D – Scanner with Cable and Stand

Part Number: LS2208-1AZR0100DR
Model: LS2208
to get Free Ground Shipping on your order.
3-year Premium Plus ($85.35)
3-year Premium ($30.65)
No Support
Add to My Shopping List Add to Compare
$153.47
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
1D

Product Description:

  Corded Barcode Scanner, Symbol LS2208, 1D Laser, General Purpose, Includes Stand, Handheld, Standard Range, IP30, White, Worldwide. Kit Includes LS2208-SR20001R Scanner, CBA-R01-S07PAR Serial Cable, PWRS-14000-253R Power Supply, 20-61019-01R Stand.
Explore all Zebra LS2208 Barcode Scanners
Add to Quote
Zebra LS2208-1AZR0100DR Barcode Scanner
Zebra LS2208-1AZR0100DR Barcode Scanner
Zebra LS2208-1AZR0100DR Barcode Scanner
Zebra LS2208-1AZR0100DR Barcode Scanner
Zebra LS2208-1AZR0100DR Barcode Scanner
Zebra LS2208-1AZR0100DR Barcode Scanner Zebra LS2208-1AZR0100DR Barcode Scanner Zebra LS2208-1AZR0100DR Barcode Scanner Zebra LS2208-1AZR0100DR Barcode Scanner

Full specifications (PDF)

Zebra LS2208 Barcode Scanner Model Overview

The Zebra LS1203-HD handheld scanner offers exceptional value for daily scanning needs, specifically designed for electronics manufacturers to efficiently read small, high-density 1-D barcodes on PCB assemblies. Its user-friendly ergonomics and robust construction ensure comfort during extensive use while minimizing maintenance costs and downtime. With quick and accurate data capture capabilities right out of the box, employees can start using it with virtually no training. This scanner, recognized for its reliability, enhances productivity on the factory floor and supports integration with existing POS systems.
Key features:
  • Durable Construction: Single board construction designed to withstand 5 ft. drops.
  • Multiple Interfaces: Features RS232, USB, and keyboard wedge for flexibility.
  • Ergonomic Design: Lightweight and balanced for reduced user fatigue.
  • Intuitive Plug-and-Play: Quick setup and minimal training required.
  • High-Quality Scanning: Reads 1-D barcodes accurately in both triggered and Auto-Scan modes.

Specifications:
  • Dimensions: 2.4 in. H x 7.1 in. L x 2.4 in. W (6.2 cm H x 18 cm L x 6 cm W)
  • Weight: Approximately 4.3 oz. (122 g)
  • Operating Temp: 32° to 122°F (0° to 50°C)
  • Storage Temp: -40° to 158°F (-40° to 70°C)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Scan Rate: 100 scans per second
  • Decode Capability: Supports various 1-D barcode formats such as UPC/EAN and Code 39
  • Power Source: Host power or external power supply
  • Warranty: 3 years against defects in workmanship and materials
Zebra LS2208-1AZR0100DR Barcode Scanner Overview

The LS2208 handheld scanner from Symbol Technologies offers high performance scanning at a moderate price point. From the retail point-of-sale and back-room to the patient bedside or school book checkout, the LS2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership (TCO).

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS Variants
  • Chinese 2 of 5
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
100 scan/s
Scan Pattern:
Bi-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
White
Height:
6"
Width:
2.5"
Depth:
3.3"
Weight (Approximate):
5.15 oz
Miscellaneous
Package Contents:
  • Symbol LS2208 Bar Code Reader
  • RS-232 Assembly Cable
  • 110 VAC Power Supply
  • Gooseneck Stand
  • Documentation CD
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse

USB Cable separate

Platform Supported:
PC
Certifications & Standards:
  • Environmental: RoHS 2002/95/EEC

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • Taiwan EMC
  • Japan VCCI/MITI/Dentori

Laser Safety::

  • CDRH Class II
  • IEC Class 2
Environmentally Friendly:
Yes
Country of Origin:
Mexico
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0013495470937, 0748521588408, 0778889967126
UPC: 013495470937, 748521588408, 778889967126
EAN: 0013495470937, 0748521588408, 0778889967126
UNSPSC: 43211701
