Maximum Frequency:
900 MHz

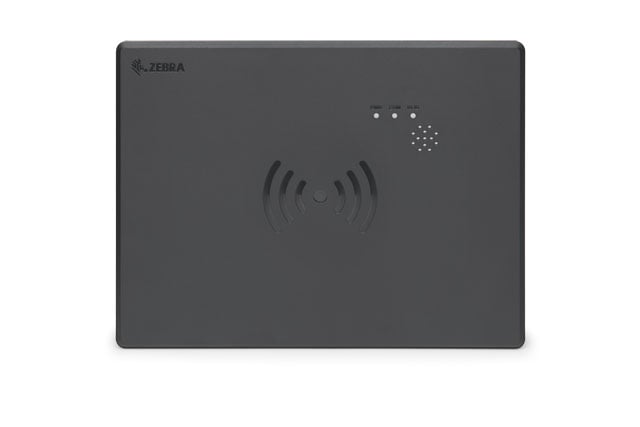

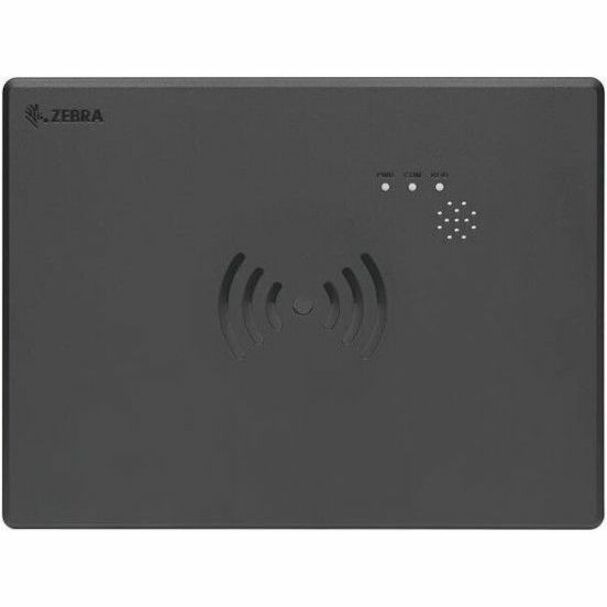

Zebra FXP20042-404031-WR RFID Reader
Part Number:
FXP20042-404031-WR
Model:
FXP20
Zebra FXP20 RFID Reader Model Overview
The Zebra FXP20 POS RFID Reader is a state-of-the-art solution designed to streamline checkout processes and enhance visibility at the point of sale in retail environments. Its innovative all-in-one design combines both the antenna and reader, ensuring easy deployment and configuration. Perfect for staffed and self-checkouts, the FXP20 offers immediate feedback through adjustable visual and auditory signals, aiding in inventory management and loss prevention.
Key Features:
Specifications:
Key Features:
- Compact and All-in-One Design: Integrates antenna and reader for versatility across retail applications.
- High Performance: Engineered for fast, accurate scanning with the ability to filter out stray tags.
- Easy Integration: Quick setup with USB connectivity and user-friendly configuration tools.
- Robust Feedback Mechanism: Visual and audible signals provide immediate success indicators.
Specifications:
- Physical Characteristics:
- RFID Pad Dimensions: 5.3 in. x 4.6 in. x 1.4 in. (136 mm x 117 mm x 36 mm)
- Adapter Plate Dimensions: 7.3 in. x 9.7 in. x 1.3 in. (185 mm x 245 mm x 34 mm)
- Weight: 266 grams
- Power: 12VDC, 2A with DC Connector Lockable
- Indicators:
- 3 LED Indicator Multicolor Lights (Green, Blue, Orange)
- 3 Sound Levels (Low, Medium, High) manageable by SDK
- Connectivity: 1x USB Host Type-B LOCKABLE
- RF Characteristics:
- Operating Frequency (UHF): 865-928 MHz
- Transmit Power: 10 to 27 dBm (SDK Restriction)
- Receiver Sensitivity: -78 dBm
- Antenna Orientation: Circular Polarized
- Antenna Gain: -1 dBic (867 MHz), 1 dBic (915 MHz)
- Operating Conditions:
- Operating Temperature: 32° F to 104° F (0°C to 40°C)
- Storage Temperature: -40° to +158° F (-40° to +70° C)
- Humidity: 5-95% non-condensing
Technical Information
Item Numbers
UNSPSC:
43211710
Recommended Accessories
Category
- Mounting Hardware and Stands (1)
Recommended Accessories for Model: Zebra FXP20042-404031-WR RFID Reader
Top Mounting Hardware and Stands Purchased With Zebra FXP20042-404031-WR
-
Zebra BRKT-042040-01 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, Mounting Bracket for Use with FXP20 Fixed POS RFID ReaderIn Stock$61.77
Frequently Asked Questions
What are the main applications for the Zebra FXP20 RFID Reader?
The Zebra FXP20 is purpose-built for retail environments and excels in staffed checkout, self-checkout, inventory control, and loss detection. Its integrated antenna and compact design make it ideal for point-of-sale integration, allowing you to streamline checkouts while maintaining real-time visibility into inventory and merchandise loss. We offer the FXP20 as a complete solution for retailers looking to modernize their operations.
How does the FXP20 connect to my existing POS system?
The FXP20 connects via a single USB Host Type-B lockable connector, making integration straightforward with most existing point-of-sale systems. Zebra provides RFID tools, APIs, and SDKs with easy-to-understand menus and built-in tutorials to guide you through any necessary configuration steps. Contact us today for assistance with integrating the FXP20 into your retail environment.
What is the operating frequency and range of the FXP20 RFID Reader?
The FXP20 operates on the 865-928 MHz UHF band with a transmit power range of 10 to 27 dBm and receiver sensitivity of -78 dBm, providing worldwide support and reliable tag detection. Its circular polarized antenna filters out stray tags and interference from neighboring lanes or displays, ensuring accurate reads in busy retail environments. The compact design (5.3 in. x 4.6 in. x 1.4 in.) allows flexible deployment at checkout counters and inventory stations.
What power supply does the FXP20 require?
The FXP20 requires 12VDC at 2A with a lockable DC connector, ensuring secure and stable power delivery in retail environments. The lockable connector design prevents accidental disconnection during high-traffic periods. Visit barcodesinc.com to confirm power infrastructure compatibility with your installation site.
Is the FXP20 suitable for high-humidity or varying temperature environments?
Yes, the FXP20 is built to withstand demanding retail environments with an operating temperature range of 0°C to 40°C (32°F to 104°F) and humidity tolerance of 5–95% non-condensing. Storage conditions support temperatures from -40°C to +70°C (-40°F to +158°F), making it suitable for both climate-controlled stores and facilities with temperature fluctuations. The device is also RoHS and WEEE compliant, meeting environmental standards for responsible disposal.
What feedback mechanisms does the FXP20 provide to confirm successful scans?
The FXP20 features three multicolor LED indicator lights (green, blue, orange) and three adjustable sound levels (low, medium, high) managed through the SDK to provide immediate visual and auditory confirmation of successful tag reads. This dual-feedback system reduces checkout errors and improves the customer experience in both staffed and self-checkout environments. The customizable audio levels allow you to optimize performance for your specific retail setting.
