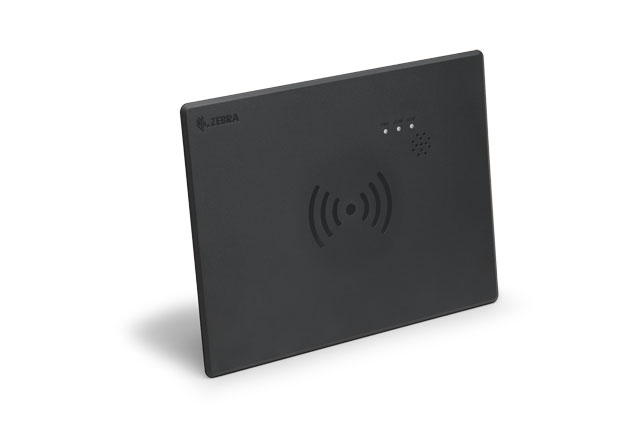

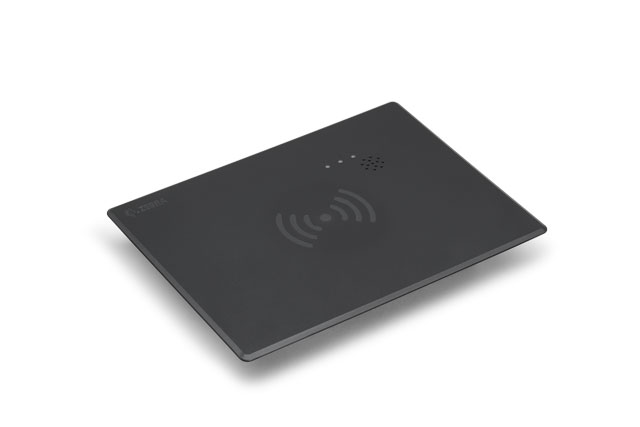

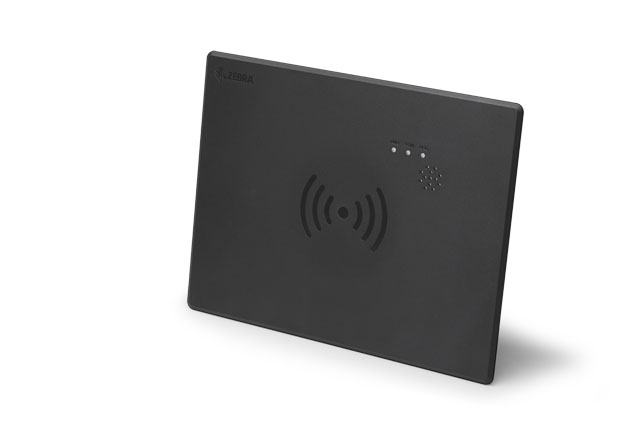

Zebra FXP20 RFID Reader

Compact Design with Superior Performance

Zebra FXP20  -  The Zebra FXP20 POS RFID Reader is the game-changer your retail operation needs. Designed for speed and accuracy, it ensures seamless checkouts, precise inventory tracking, and real-time loss detection—all in a sleek, compact design. With simple USB connectivity and built-in visual and audio feedback, integration is effortless, whether for staffed or self-checkout. Say goodbye to checkout bottlenecks and inventory blind spots—upgrade to the FXP20 and keep your business moving forward.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$1,006.92
In Stock
Zebra FXP20 RFID Reader
Zebra FXP20 RFID Reader
Zebra FXP20 RFID Reader
Zebra FXP20 RFID Reader
Zebra FXP20 RFID Reader
Zebra FXP20 RFID Reader
Zebra FXP20 RFID Reader Zebra FXP20 RFID Reader Zebra FXP20 RFID Reader Zebra FXP20 RFID Reader Zebra FXP20 RFID Reader Zebra FXP20 RFID Reader
Accessories For Zebra FXP20 RFID Reader

Zebra FXP20 RFID Reader Options

  • Zebra FXP20042-404031-WR RFID Reader

    Zebra FXP20042-404031-WR RFID Reader
    RFID Reader, Zebra FXP20, Point of Sale Reader, RE40-Based, Integrated Short Range, Circular Polarized Antenna, 900 MHz, Worldwide
    Item on backorder — chat for lead time
    $1,006.92
    Add to Quote
  • Zebra FXP20042-404031-US RFID Reader

    Zebra FXP20042-404031-US RFID Reader
    RFID Reader, Zebra FXP20, Point of Sale Reader, RE40-Based, Integrated Short Range, Circular Polarized Antenna, for US, Canada, and Puerto Rico Only
    Item on backorder — chat for lead time
    $1,040.61
    Add to Quote

Frequently Asked Questions

The FXP20 features an all-in-one compact design that integrates the antenna and reader, making it versatile for deployment in any checkout setting. Its robust feedback mechanism—including adjustable visual LED signals (Green, Blue, Orange) and three configurable sound levels—provides immediate confirmation to customers and staff, enhancing the checkout experience whether monitored or unattended.

The Zebra FXP20 connects via a single USB Host Type-B lockable port, enabling quick setup and easy integration with your current infrastructure. Its user-friendly configuration tools and SDK-manageable settings allow your IT team to deploy and customize the reader without extensive downtime or complex installation procedures.

The FXP20 operates on UHF frequencies between 865–928 MHz with a receiver sensitivity of -78 dBm and transmit power ranging from 10 to 27 dBm. It features a circular polarized antenna with gain of -1 dBic at 867 MHz and 1 dBic at 915 MHz, engineered to deliver fast, accurate scanning while filtering out stray tags.

Yes, the FXP20 is designed to operate reliably in retail environments with an operating temperature range of 32°F to 104°F (0°C to 40°C) and humidity tolerance of 5–95% non-condensing. It can be stored in temperatures from -40°F to +158°F (-40°C to +70°C), making it suitable for varied warehouse and retail conditions.

The RFID pad measures 5.3 in. × 4.6 in. × 1.4 in. (136 mm × 117 mm × 36 mm) and weighs 266 grams, while the adapter plate is 7.3 in. × 9.7 in. × 1.3 in. (185 mm × 245 mm × 34 mm). The reader requires 12VDC at 2A via a lockable DC connector, ensuring secure power delivery in busy retail environments.

The FXP20 enhances visibility at the point of sale with high-performance RFID scanning capabilities that enable real-time inventory tracking and immediate tag detection. Its adjustable visual and auditory feedback signals provide instant confirmation of successful reads, helping staff and systems quickly identify discrepancies and prevent loss at checkout.

Full specifications (PDF)

Zebra FXP20 RFID Reader Model Overview

The Zebra FXP20 POS RFID Reader is a state-of-the-art solution designed to streamline checkout processes and enhance visibility at the point of sale in retail environments. Its innovative all-in-one design combines both the antenna and reader, ensuring easy deployment and configuration. Perfect for staffed and self-checkouts, the FXP20 offers immediate feedback through adjustable visual and auditory signals, aiding in inventory management and loss prevention.
Key Features:
  • Compact and All-in-One Design: Integrates antenna and reader for versatility across retail applications.
  • High Performance: Engineered for fast, accurate scanning with the ability to filter out stray tags.
  • Easy Integration: Quick setup with USB connectivity and user-friendly configuration tools.
  • Robust Feedback Mechanism: Visual and audible signals provide immediate success indicators.

Specifications:
  • Physical Characteristics:
    • RFID Pad Dimensions: 5.3 in. x 4.6 in. x 1.4 in. (136 mm x 117 mm x 36 mm)
    • Adapter Plate Dimensions: 7.3 in. x 9.7 in. x 1.3 in. (185 mm x 245 mm x 34 mm)
    • Weight: 266 grams
  • Power: 12VDC, 2A with DC Connector Lockable
  • Indicators:
    • 3 LED Indicator Multicolor Lights (Green, Blue, Orange)
    • 3 Sound Levels (Low, Medium, High) manageable by SDK
  • Connectivity: 1x USB Host Type-B LOCKABLE
  • RF Characteristics:
    • Operating Frequency (UHF): 865-928 MHz
    • Transmit Power: 10 to 27 dBm (SDK Restriction)
    • Receiver Sensitivity: -78 dBm
    • Antenna Orientation: Circular Polarized
    • Antenna Gain: -1 dBic (867 MHz), 1 dBic (915 MHz)
  • Operating Conditions:
    • Operating Temperature: 32° F to 104° F (0°C to 40°C)
    • Storage Temperature: -40° to +158° F (-40° to +70° C)
    • Humidity: 5-95% non-condensing
