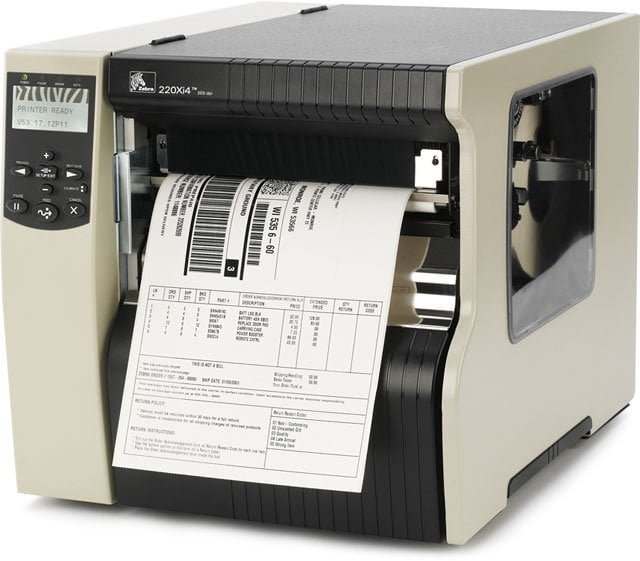

Zebra 220-801-00200 Barcode Label Printer

Zebra 220Xi4 - Industrial Printer, Zebra 220Xi4, Thermal transfer, 203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Media Side Door & Media Hanger. Includes power supply. Cables sold separately. See accessories.
  • Print methods: Thermal transfer or direct thermal
  • Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
  • Clear media side door allows easy monitoring of supplies usage without opening the printer systems
  • 32 bit 133 Mhz RISC processor
  • 64 MB on-board linear Flash memory
  • 16 MB SDRAM Flash memory
  • Internal real-time clock
  • Advanced label/media counters
  • Dual media sensors - transmissive and reflective, selectable through software or front panel
  • Auto calibration when printer is turned on or when printhead is closed using approximately two labels
Read More
$7,273.92
Recommended TrueSupport Coverage ($5.50/mo.)
x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over $325 per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device
$66.00
Only $5.50/month
Subtotal ( items)

Full specifications (PDF)

Zebra's built-to-last 220Xi4 printers give you reliable performance over the long run to minimize maintenance needs and total cost of ownership. With one printer model and Zebra's wide range of label materials and sizes, you can address a variety of printing applications, reducing the need to purchase different printers for every specific labeling application. The 220Xi4 is renowned for its incredible durability, consistently outstanding print quality, fast print speed, long life and unparallel reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8" wide for chemical drum or other wide label applications. The wireless connectivity option frees you from paying for recabling with every physical reconfiguration of your operations.
Zebra 220-801-00200 Overview

Achieve new levels of high performance Zebra's built-to-last Xi series printers are legendary for their rugged durability, consistently outstanding print quality, fast print speed, long life, and unparalleled reliability in demanding applications. These qualities translate into low total cost of ownership-making them a smart investment for organizations with high-volume, mission-critical or specialty labeling applications.

Xi4 printers build on this legacy to boost your operational productivity with up to 40 percent faster print speeds on select models, faster 10/100 Ethernet connection speeds, and enhanced early warning systems for reduced downtime. Other advanced and flexible features include a large, easy-to-read front panel for simple setup with optional customizable menu and support for a wider assortment of languages. Integration is easier with a variety of network connectivity options, while ZebraLink Solutions provide remote printer management capabilities.

Loading...

Full specifications (PDF)

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
8.50"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128 UCC
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • Code 49
  • Codablock
  • Planet Code
  • PDF-417
  • MSI
  • Plessey
  • POSTNET
  • QR Code
  • Aztec Code
  • LOGMARS
  • RSS
  • GS1 DataBar
  • EAN-13
  • EAN-8
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Standard 2 of 5
  • Data Matrix
  • Micro PDF
  • TLC 39
Peel Facility:
Yes
Rewinder:
Yes
Application/Usage:
Desktop
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Form
  • Black Mark
  • Roll Fed
  • Die-cut Label
  • Fanfold
Media Size:
Custom Size
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
3.20"
Maximum Label Width:
8.80"
Maximum Label Length:
12.50 ft
Label Core Size:
1"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
15.8"
Depth:
20.4"
Miscellaneous
Package Contents:
  • 220Xi4 Label Printer
  • Internal Zebranet 10/100 Print Server
  • User Guide
  • Software CD
  • North American Edition, 120 VAC Cord
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108

Loading...
Loading...
Loading...
Loading...

The Zebra 220-801-00200 is also known as ZEB-22080100200 or 22080100200 .
