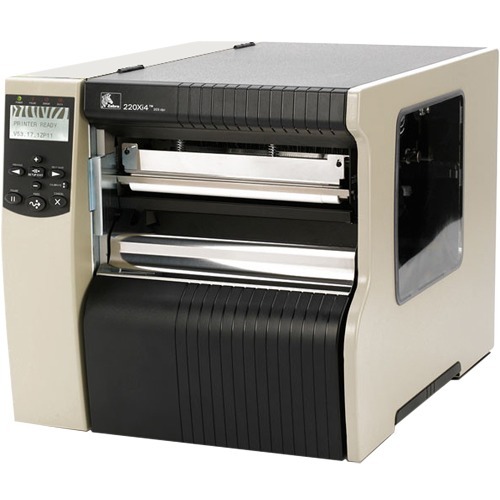

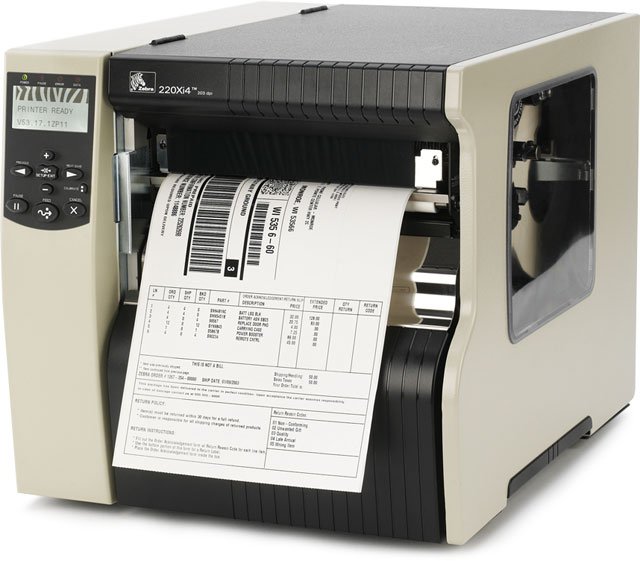

Zebra 220-801-00100 Barcode Printer

The Zebra 220Xi4 is designed to produce large labels up to 8.5" (216 mm) wide at 10" (254 mm) per second at 203 dpi and 6" per second at 300 dpi (152 mm) resolution. The 220Xi4 is ideal for industrial applications, including chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.

Technical Information

Maximum Mono Print Speed: 10 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 8.50"
Recommended Use: Label Print
Features:
- LCD Display
- Cutter
Barcode Symbology Supported:
- Code 11
- Code 39
- Code 93
- Code 128
- Code 128-B
- Code 128-A
- Code 128-C
- Code 128 UCC
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- UPC 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- Plessey
- POSTNET
- Standard 2 of 5
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Planet Code
- Codabar
- Codablock
- PDF-417
- Code 49
- Data Matrix
- Maxi Code
- QR Code
- TLC 39
- Micro PDF
- Aztec Code
- RSS
- GS1 DataBar

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Product Series: Xi
Brand Name: Zebra
Manufacturer: Zebra Technologies Corporation
Product Model: 220Xi4
Product Name: 220Xi4 Thermal Label Printer

Physical Characteristics

Height: 15.5"
Width: 15.8"
Depth: 20.4"

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Other

Platform Supported: PC
Package Contents:
- 220Xi4 Thermal Label Printer
- North American Edition Power Cord
- Xi4 User's Guid
- ZebraNet Connectivity CD
- 220Xi4 Thermal Label Printer
- North American Edition Power Cord
- Xi4 User's Guid
- ZebraNet Connectivity CD
Additional Information:
- Auto calibration
- Unicode Compliant
- Intelligent printhead
- 300 unique darkness settings
- Improved head test for element out
- Construction: 12-gauge steel frame
- Single 32 bit 133 Mhz RISC processor
- Multi-level Element Energy Equalizer
- Clear Media Side Door and Media Hanger
- Automatic media/ribbon sensing capability
- Mirror feature allows user-defined printer configurations to be retrieved from the network

Media Types & Handling

Maximum Label Width: 8.80"
Maximum Label Length: 12.50 ft
Media Type:
- Black Mark
- Continuous Form
- Roll Fed
- Die-cut Label
- Fanfold
Media Handling: Catch Tray
Media Thickness: 12 mil
Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
Label Core Size: 1"
Ribbon Core Size: 1"
Maximum Roll Diameter: 3.20"

Fonts & Emulation

Language Emulation:
- XML
- ZPL II

Memory

Standard Memory: 16 MB
Memory Technology: SDRAM
Flash Memory: 8 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Warranty

Limited Warranty: 1 Year

Power Description

Input Voltage: 110 V AC

Full specifications (PDF)

See all Zebra 220Xi4 options »

Brand	Zebra
Model	220Xi4
Interface Options	Serial, Parallel, Ethernet, USB
Print Method	Thermal Transfer
Max Roll Outer Diameter	8
Print Resolution	203 dpi
Max Label Width	8.80
Brand	Zebra
Maximum Print Width	8.50
Printer Type	Industrial
Print Speed	10
Label Core	3 inches
Printer Mobility	Not Mobile
