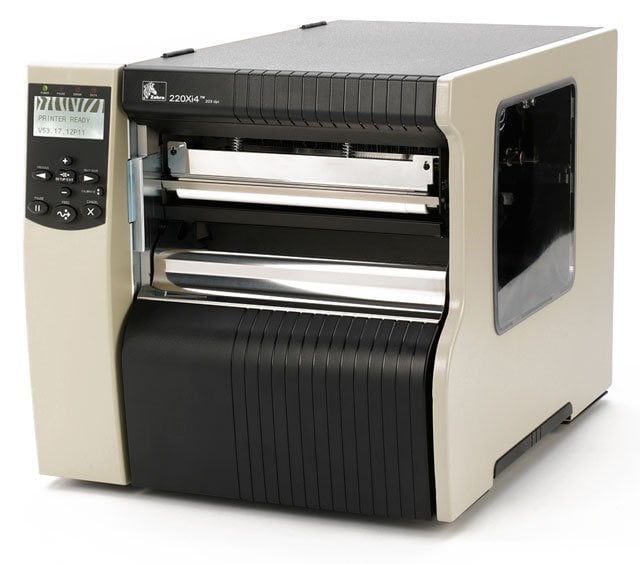

Zebra 220-801-00000 Barcode Label Printer

220Xi4 - Industrial Printer, Zebra 220Xi4, Thermal Transfer, 203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger. Includes power supply. Cables sold separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, USB, Serial, Internal Print Server
Print Resolution
203 dpi
Printer Options
Tear Bar
Max Print Width
8 inch
Label Core Size
3 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 8.80" maximum label width for dependable, desired results
  • 12.50 ft maximum label length for your convenience and feasible usability
  • Supports black mark media type for better reliance and maximum usability
  • LCD Display feature for better reliance and usability
  • Comes with 16 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra 220Xi4 Barcode Label Printers

$6,752.45
In Stock
Chat Now for Qty Discount
3-year Premium Plus ($1,257.32)
3-year Premium ($1,103.32)
No Support
Add to Quote
Add to My Shopping List Add to Compare
Zebra 220-801-00000 Barcode Label Printer
Zebra 220-801-00000 Barcode Label Printer
Zebra 220-801-00000 Barcode Label Printer
Zebra 220-801-00000 Barcode Label Printer
Zebra 220-801-00000 Barcode Label Printer
Zebra 220-801-00000 Barcode Label Printer Zebra 220-801-00000 Barcode Label Printer Zebra 220-801-00000 Barcode Label Printer Zebra 220-801-00000 Barcode Label Printer


Frequently Bought Together

Full specifications (PDF)
Zebra 220Xi4 Barcode Label Printer Model Overview

Zebra's built-to-last 220Xi4 printers give you reliable performance over the long run to minimize maintenance needs and total cost of ownership. With one printer model and Zebra's wide range of label materials and sizes, you can address a variety of printing applications, reducing the need to purchase different printers for every specific labeling application. The 220Xi4 is renowned for its incredible durability, consistently outstanding print quality, fast print speed, long life and unparalled reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8" wide for chemical drum or other wide label applications. The wireless connectivity option frees you from paying for recabling with every physical reconfiguration of your operations.

Zebra 220-801-00000 Barcode Label Printer Overview

Designed to produce large labels at 203 dpi resolution, the 220Xi4 Thermal Label Printer is ideal for industrial applications such as chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
8.50"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • Code 128-B
  • Code 128-A
  • Code 128-C
  • Code 128 UCC
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Codabar
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • Aztec Code
  • RSS
  • GS1 DataBar
Features:
LCD Display
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Black Mark
  • Continuous Form
  • Roll Fed
  • Die-cut Label
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
3.20"
Maximum Label Width:
8.80"
Maximum Label Length:
12.50 ft
Label Core Size:
1"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
15.8"
Depth:
20.4"
Miscellaneous
Package Contents:
  • 220Xi4 Thermal Label Printer
  • North American Edition Power Cord
  • Xi4 User's Guid
  • ZebraNet Connectivity CD
Cables Included:
AC
Additional Information:
  • Auto calibration
  • Unicode Compliant
  • Intelligent printhead
  • 300 unique darkness settings
  • Improved head test for element out
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor
  • Multi-level Element Energy Equalizer
  • Clear Media Side Door and Media Hanger
  • Automatic media/ribbon sensing capability
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
Platform Supported:
PC
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0682017477534, 0778889965528, 0783555040799, 4913383188776
UPC: 682017477534, 778889965528, 783555040799, 807027540775
EAN: 0682017477534, 0778889965528, 0783555040799, 4913383188776
UNSPSC: 43212108
