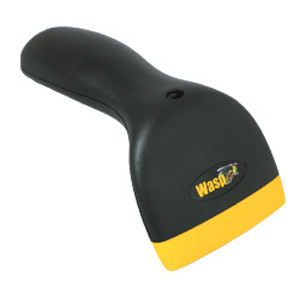

The Wasp CCD Scanner is a highly efficient and user-friendly tool designed for seamless data entry. With no need for additional software or drivers, simply plug it between your keyboard and PC, and you're ready to start scanning. This durable scanner utilizes advanced CCD technology to read both professional and poorly printed barcodes effortlessly, ensuring reliability in various environments. Capable of scanning multiple barcode symbologies at impressive speeds, it helps streamline your operations and boost productivity.
Key Features:
Easy to use: Quick installation with out-of-the-box functionality.
Fast and flexible data entry: Efficiently scans various barcode types.
Durable design: Built with high impact plastic for long-lasting use.
Programmable: Customize pre/post amble functions for advanced scanning.
Specifications:
Performance:
Depth of Field: Contact to 1.5"
Best Resolution: 5mil
Scanning Width: 3.25"
Scan Rate: 50 scans/second
Electrical:
Light Source: 660nm CCD Array
Operating Voltage: 5V
Current Consumption: 5VDC
Mechanical:
Dimensions: 7.5" x 3.25" x 1.875"
Weight: 6.4 oz
Cable: 8' straight
Mechanical Shock: High impact plastic
Environmental:
Operating Temperature: 32°F to 122°F
Storage Temperature: -22°F to 158°F
Relative Humidity: 20% to 85%
Safety Certification: FCC Class A
Interfaces:
Keyboard wedge
USB optional
Keyboard Y-Cable
Wasp Bar Code Scanner
Symbologies:
Code 39
Code 128
UCC-128
UPC-A
UPC-E
EAN/JAN-8
EAN/JAN-13
Interleaved 2 of 5
Codabar
MSI Plessey

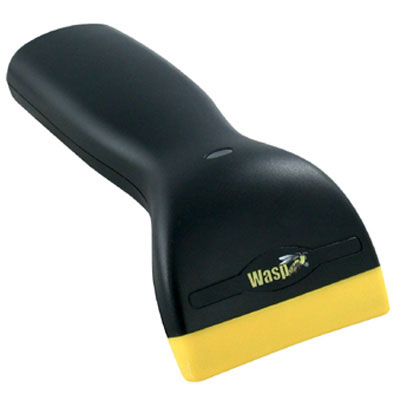

Wasp 633808091002 Barcode Scanner Overview
Wasp WCS3900 Barcode Scanner The Wasp WCS3900 barcode scanner offers durable construction and ergonomic design for comfortable use. Perfect for office, library, and light retail environments, the WCS3900 easily eliminates time consuming manual data entry. Adding information to a database, spreadsheet or Point-of-Sale (POS) system is efficient and error free - just scan the barcode , and the data is sent instantly to your active application as though it was typed on a keyboard. The WCS3900 is designed for fast, easy installation and connects easily to your PC using the USB port of keyboard wedge (PS/2). The WCS3900 barcode scanner is configured to read most common 1D barcodes, right out of the box - no drivers necessary. The WCS3900 allows you to scan barcodes up to 1" away, with a maximum barcode width of 3.25". The WCS3900 includes a 2-year manufacturer's warranty covering material defects. If you would like to upgrade this coverage, WaspProtect extended service plans cover accidental breakage and can provide coverage beyond the original warranty.
Full specifications (PDF)
