Full specifications (PDF)
Pin Pad:
Yes

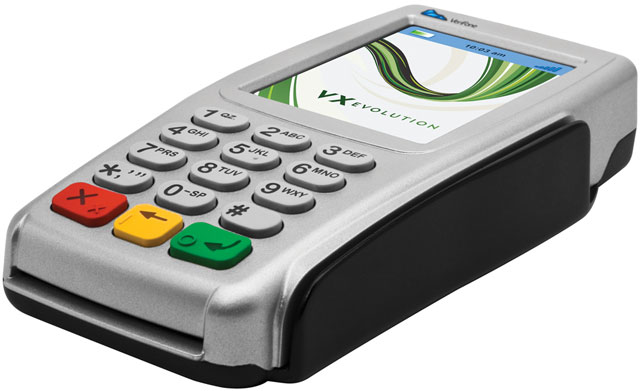

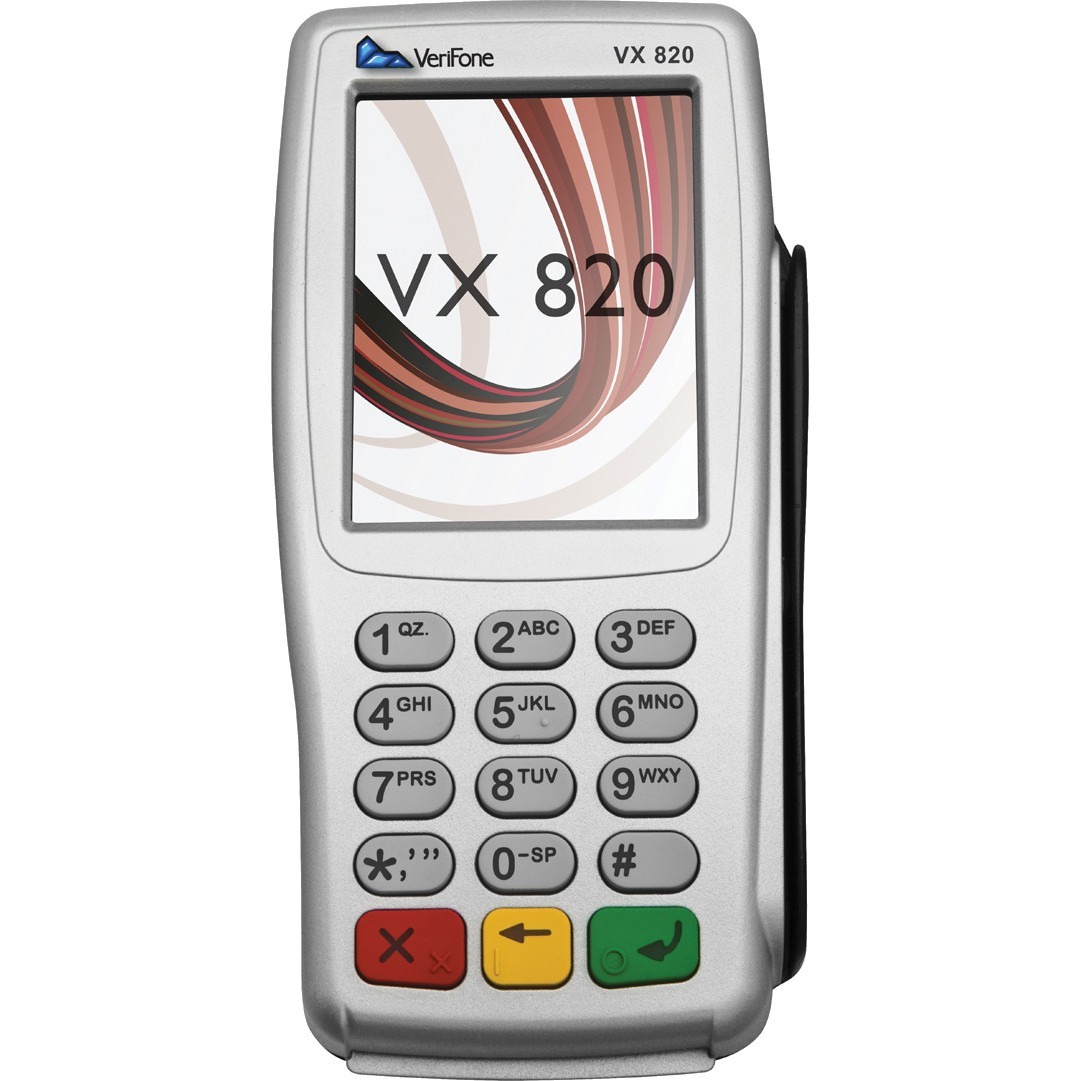

VeriFone M282-703-C3-R-3 Payment Terminal
Part Number:
M282-703-C3-R-3
Model:
Vx 820
VeriFone Vx 820 Payment Terminal Model Overview
The VeriFone VX 820 PIN Pad is engineered for speed, security, and ease of use, enabling swift transactions at the fingertips of consumers. With its sleek design and advanced capabilities, this versatile device enhances payment experiences in any environment. The VX 820 seamlessly integrates with most terminals, allowing businesses to display targeted promotions and branding on its vibrant 3.5" touch screen. With state-of-the-art EMV and NFC technology, you can be assured of secure transactions every time.
Key features:
Specifications:
Key features:
- Simplified Connectivity: Single-port options including USB, serial, and Ethernet.
- Consumer-Facing Solution: Pairs with any terminal for complete payment flexibility.
- Marketing Opportunities: Delivery of targeted promotions directly on the screen.
- Integrated Security: Advanced end-to-end encryption ensuring transaction safety.
Specifications:
- Processor: 400 MHz | ARM11 32-bit RISC processor
- Memory: 160MB (128MB Flash, 32MB SDRAM)
- Display: 3.5" QVGA | resistive touch screen
- Card Readers: Triple track MSR | landed smart card - EMVCO approved
- Contactless: ISO14443 A&B | MiFare | ISO18092 capable
- Peripheral Ports: Single connector supporting RS-232, USB device, USB Host, Ethernet
- Other Standards: 3 SAM slots, Optional Micro-SD
- Security: PCI PTS 3.X approved
- Power: 5-12VDC, 3.8W Maximum consumption
- Environmental: 0° to 50° C (operating), -20° to 60° C (storing), 5% to 90% relative humidity
- Physical Dimensions: 173mm L x 87mm W x 35mm H; 308g (0.68lb) weight
VeriFone M282-703-C3-R-3 Payment Terminal Overview
Easy and Secure PIN Entry for Consumer Transactions
The VX 820, with its high resolution 3.5" color touch screen and illuminated backlight keys, ensures readability and usability in any environment. It enables you to deliver targeted promotions and branding messages, resulting in a pleasant customer experience and increased loyalty, ultimately leading to greater revenue.
While consumers can use the VX 820 PIN pad to enter their PINs for convenient and private payments, merchants can display their logos and other graphics to improve customer recognition and loyalty. The future-proof VX 820 supports credit, debit and EMV transactions, and includes integrated NFC/contactless technology for alternative payments. The slim, stylish payment device is easy to use, and backed by the secure VX Evolution platform.
Technical Information
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
ARM11
Processor Speed:
400 MHz
Memory
Standard Memory:
32 MB
Flash Memory:
128 MB
Display & Graphics
Screen Size:
3.5"
Display Color:
Color
Screen Mode:
QVGA
Touchscreen:
Yes
Screen Resolution:
240 x 320
Network & Communication
Ethernet Technology:
Ethernet
Near Field Communication:
Yes
Built-in Devices
Built-in Devices:
- Magnetic Stripe Reader
- Smart Card Reader
- Contactless Reader
Power Description
Input Voltage:
- 5 V DC
- 12 V DC
Physical Characteristics
Height:
1.4"
Width:
3.4"
Length:
6.8"
Weight (Approximate):
10.86 oz
Miscellaneous
Certifications & Standards:
- PCI PTS 3.X
- EMV level 1 and 2
- PCI PED 2.0
Warranty
Limited Warranty:
13 Month
Item Numbers
GTIN:
0641676231666, 0735548703624, 0783555045534, 4913393178866, 4963273165813
UPC:
641676231666, 735548703624, 783555045534
EAN:
0641676231666, 0735548703624, 0783555045534, 4913393178866, 4963273165813
UNSPSC:
43211720
Questions? Get help from
a POS Expert!
a POS Expert!
The VeriFone M282-703-C3-R-3 Payment Terminal is also known as
VFN-M282-703-C3-R-3
or M282703C3R3.
