Full specifications (PDF)
Pin Pad:
Yes
VeriFone M252-773-03-USA-2 Payment Terminal
Part Number:
M252-773-03-USA-2
Model:
Vx 520

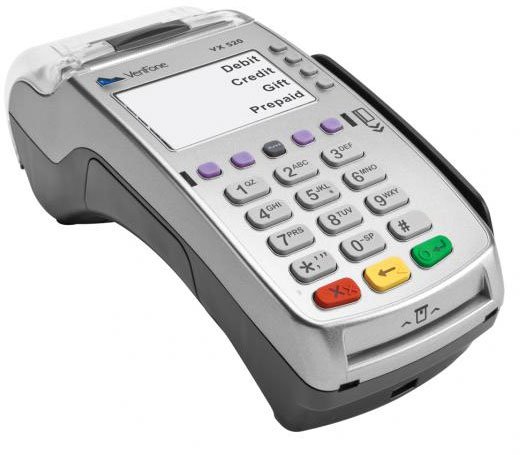

VeriFone Vx 520 Payment Terminal Model Overview
Experience unparalleled performance and security with the Verifone VX 520 countertop payment device. Designed to maximize transaction efficiency and revenue opportunities, this state-of-the-art device offers lightning-fast speeds and robust security features. With its compact and ergonomic design, the VX 520 not only optimizes usability but also integrates advanced technologies such as EMV and NFC support. This powerful tool is engineered to meet the demands of any business, making transactions smoother and more profitable than ever.
Key Features:
- Lightning-fast transaction speeds with the VX platform and Verix operating system.
- Advanced security measures including EMV support, NFC enablement, and PCI PTS 3.X certification.
- User-friendly design featuring a compact size and multiple connectivity options.
- End-to-end encryption and VeriShield Total Protect for maximum security.
- Internal PIN pad for streamlined debit transactions.
Specifications:
- Processor: 400 MHz | ARM11 32-bit RISC processor
- Memory: 160MB (128MB Flash, 32MB SDRAM)
- Display: 128x64 pixel graphical | white backlit LCD
- Connectivity:
- Dial | Ethernet
- One Ethernet, one telco, one RS-232 port, one USB 2.0 Host port, one USB Client port
- Supported Card Readers: Triple track MSR, ISO18092 (NFC/contactless)
- Power: 8V DC, 2.25A or optional 9V DC, 4A
- Environmental: Operating temperature: 0° to 50° C | Storage temperature: -20° to 60° C
- Physical: 203mm L x 78mm W x 87mm H; 500g weight
VeriFone M252-773-03-USA-2 Payment Terminal Overview
Robust Performance that Leads and Exceeds
The VX 520 is a reliable, rugged countertop device that's built to last. It handles encryption, decryption and processing at lightning speeds thanks to its powerful processor and expandable memory. Integrated NFC capabilities support alternative payments and also supports value-added applications such as loyalty or gift card acceptance.
A full range of connectivity options, from dial to dial plus Ethernet, with an optional battery allows the VX 520 to go wherever you go. A uniquely designed communication port area underneath the device keeps countertops neat and free of clutter.
Technical Information
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
ARM11
Processor Speed:
400 MHz
Memory
Standard Memory:
32 MB
Flash Memory:
128 MB
Display & Graphics
Display Screen Type:
LCD
Screen Resolution:
128 x 64
Network & Communication
Near Field Communication:
Yes
Built-in Devices
Built-in Devices:
Smart Card Reader
Physical Characteristics
Height:
3.4"
Width:
3.1"
Length:
8"
Weight (Approximate):
1.10 lb
Miscellaneous
Certifications & Standards:
PCI PTS 3.X
Warranty
Limited Warranty:
13 Month
Item Numbers
UNSPSC:
43211720
