Full specifications (PDF)
Signature Capture:
Yes
VeriFone M177-509-01-R Payment Terminal
Part Number:
M177-509-01-R
Model:
MX925

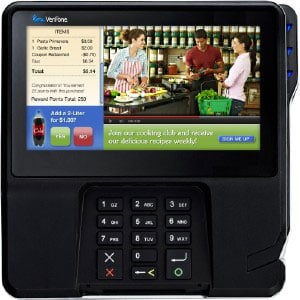

VeriFone MX925 Payment Terminal Model Overview
The Verifone MX 925 is a multimedia powerhouse that combines elegance with functionality. Featuring a stunning 7" WVGA color display, it is the largest and highest-resolution display in the industry, ideal for enhancing customer interaction. Powered by a robust processor and generous memory, this device facilitates seamless media streaming and promotional displays, unlocking new revenue opportunities. With its NFC/contactless capabilities and user-friendly signature capture, the MX 925 is designed to elevate customer experience while supporting a variety of value-added services.
Key features:
- 7" color capacitive touch screen: Provides an expansive display for optimal visibility.
- NFC/contactless enabled: Supports electronic wallets for convenient payment processing.
- Signature capture: Includes a stylus for effortless user signatures.
- Powerful OS: Runs on a Linux-based system, ensuring robust application development options.
- Versatile services: Perfect for loyalty schemes, gift card issuance, and more.
Specifications:
- Processor: 400 MHz ARM11 32-bit RISC
- Memory: 512MB (256MB Flash, 256MB SDRAM)
- Display: 7" WVGA (800 x 480) capacitive touch screen
- Operating System: Embedded Linux with Verifone security enhancements
- Connectivity:
- Ethernet 10/100BaseT
- USB host/device
- Wi-Fi and Bluetooth optional
- Audio: Full stereo standard
- Card Readers:
- Triple track bi-directional MSR
- EMVCO L1 and L2 certification
- Security: PCI PTS 4.0 approved
- Physical Dimensions: 56mm H x 218mm W x 230mm D; 0.9kg
VeriFone M177-509-01-R Payment Terminal Overview
Multimedia Display to Boost Sales
The MX 925 helps influence consumers' buying decisions by enabling merchants to show consumers targeted video and promotional presentations at the point of sale. With clear, colorful multimedia promotions shown on a stunning 7" color display - the largest and highest-resolution display in the industry - merchants can dazzle customers with graphics of the latest products and offers.
The high-speed powerful processor and generous memory allocation supports full studio showcase promotions and video advertisements to help boost sales and levels of service. The MX 925 engages consumers with streamed media and visual promotions to encourage consumer interaction and support loyalty and promotional programs - ultimately improving consumer satisfaction and increasing revenue.
Technical Information
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
ARM11
Processor Speed:
400 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
256 MB
Display & Graphics
Screen Size:
7"
Display Color:
Color
Screen Mode:
WVGA
Touchscreen:
Yes
Network & Communication
Ethernet Technology:
Ethernet
Bluetooth:
Yes
Near Field Communication:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial:
Yes
Built-in Devices
Built-in Devices:
- Magnetic Stripe Reader
- Smart Card Reader
- Contactless Reader
Software
Operating System:
Linux
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Height:
2.2"
Width:
8.6"
Depth:
9.1"
Weight (Approximate):
1.98 lb
Miscellaneous
Certifications & Standards:
- PCI PTS 4.0
- MiFare
- EMVCo L1 and L2
Item Numbers
GTIN:
0019107160807, 0735548703402, 0783555170090, 4963273165790
UPC:
019107160807, 735548703402, 783555170090
EAN:
0019107160807, 0735548703402, 0783555170090, 4963273165790
UNSPSC:
43211720
