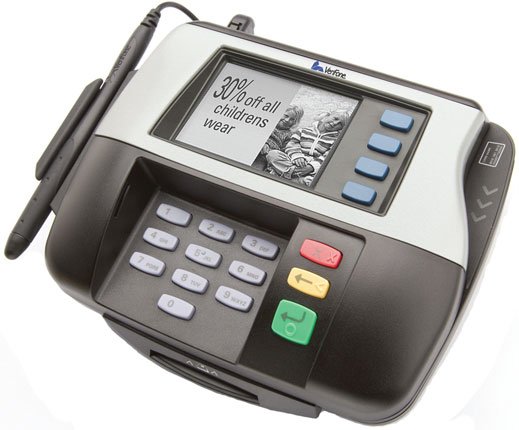

VeriFone M090-307-04-R Payment Terminal

Part Number: M090-307-04-R
Model: MX830
$427.87
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Encryption
Master/SessionDUKPTTriple DES
Signature Capture
Yes
Processor Speed
200 MHz
Standard Memory
32 MB

Product Description:

  VeriFone MX830 Payment Terminal - LCD Display 200 MHz - 32 MB RAM - Master/Session, DUKPT, Triple DES - Fast Ethernet - Network - PCI PED, Signature Capture

VeriFone MX830 Payment Terminal Model Overview

The VeriFone MX830 Performance Plus payment device is the ultimate solution for multi-lane retail environments. Designed for durability and efficiency, it provides rapid transaction handling and advanced security features. With a user-friendly interface and optional touchscreen capability, the MX830 enhances customer engagement while delivering promotional messages directly to consumers. Its rugged design withstands heavy usage, ensuring reliable performance, while optional upgrades for contactless payments and graphical displays allow retailers to adapt to future demands.


Key Features
  • Intuitive interface with recessed keypad for secure PIN entry.
  • High-performance processor for efficient handling of transactions.
  • Backlit, 16-shade grayscale display to attract consumer attention.
  • Modular design to upgrade with contactless payment technology.
  • Durable construction with scratch-resistant glass and laser-etched keys.
  • Multi-track magnetic card reader for swift and reliable payments.

Specifications
  • Processor: 32-bit 200 MHz
  • Operating System: Embedded Linux with VeriFone security enhancements
  • Memory: 32 MB SDRAM + 32 MB Flash
  • Display: 16-shade grayscale, backlit, 14 VGA resolution
  • Touch Screen: Optional, with chemically-hardened glass
  • Connectivity: USB, Ethernet, Serial Interfaces
  • Security: PCI PED approved, EMV Level 1 & 2 compliant, Triple DES encryption
  • Dimensions: Compact design for efficient usage
VeriFone M090-307-04-R Payment Terminal Overview

Keeps Lanes Moving and Consumers Engaged

VeriFone's MX830 is the robust payment device multi-lane retailers have waited for- a versatile, durable, economical performer tuned to multi-lane and integrated point-of-service environments. The consumer-facing device provides transaction speed, reliability, flexibility, and security-together with attention-getting brand reinforcement and promotional messages, delivered directly to the consumer. The MX830 makes quick work of even the most complex payment and value-added transactions.

It has a familiar, intuitive interface and a recessed keypad for privacy during PIN entry. The MX830 also offers an optional touch screen that accepts stylus or finger input, as well as signature capture capability to streamline transactions.

Technical Information
Encryption:
  • Master/Session
  • DUKPT
  • Triple DES
Signature Capture:
Yes
Processor & Chipset
Processor Speed:
200 MHz
Memory
Standard Memory:
32 MB
Flash Memory:
32 MB
Display & Graphics
Screen Mode:
QVGA
Display Screen Type:
LCD
Touchscreen:
Yes
Network & Communication
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Built-in Devices
Built-in Devices:
Magnetic Stripe Reader
Keyboard/Keypad
Number of Keys:
17
Miscellaneous
Certifications & Standards:
  • Interac
  • EMV Level 1 & 2
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
13 Month
Item Numbers
UNSPSC: 43211720

Recommended Accessories

Category

  • Payment Terminal Accessories (2)

Recommended Accessories for Model: VeriFone M090-307-04-R Payment Terminal

Top Payment Terminal Accessories Purchased With VeriFone M090-307-04-R

Frequently Asked Questions

The Cisco CP-6921 features dual 10/100BASE-T Ethernet ports—one for LAN connection and one for connecting downstream devices like a PC. The phone supports both SCCP and SIP signaling protocols, making it compatible with Cisco Unified Communications Manager versions 7.1.2 and later. We offer this model as part of our comprehensive Cisco telecommunications product lineup available from barcodesinc.com.

The VeriFone M090-307-04-R supports Master/Session, DUKPT, and Triple DES encryption standards. It is PCI PED approved and meets EMV Level 1 & Level 2 Type Approvals, ensuring secure payment processing for your transactions.

The Microsoft Surface Laptop Go 2 is equipped with an Intel Core i5 processor, delivering reliable performance for everyday computing tasks and business applications. This processor enables efficient multitasking and smooth operation of standard productivity software.

The Dell 342-2977 is a 900 GB hybrid hard drive with a 2.5" internal form factor, operating at 10,000 RPM with SAS (6Gb/s) interface. It features hot-swappable capability and comes in Storm Gray, making it ideal for high-performance server and storage environments. We offer this drive for organizations requiring reliable, fast storage solutions.

Yes, the Cisco CP-6921 is designed for business-grade voice communication and includes ADA-compliant features with a hearing-aid-compatible handset. Its dual-position foot stand allows for flexible desk placement or wall mounting, and the color 3.2-inch QVGA graphical display with 5-way navigational buttons ensures usability in various work settings. Contact us today to discuss deployment options for your warehouse or logistics facility.

This terminal accepts magnetic stripe cards via its triple-track, bi-directional card reader, and supports smart card transactions with up to 3 SAM (Security Access Module) slots. A smart card reader is available as a factory option, and contactless payments are supported through an optional, field-upgradeable ISO 14443 AB certified module.

The Microsoft Surface Laptop Go 2 offers up to 13.50 hours of battery run time on a single charge, making it ideal for full workdays without requiring frequent recharging. This extended battery life ensures productivity whether you're in the office, warehouse, or on the road.

Yes, the Dell 342-2977 is a hot-swappable drive, allowing you to replace it without powering down your system. This feature minimizes downtime and is essential for mission-critical applications in data centers and enterprise environments. Contact us today to ensure this drive meets your infrastructure requirements.

The Dell 342-2977 uses a SAS (Serial Attached SCSI) 6Gb/s interface, which provides high-speed data transfer and is standard in enterprise servers and storage arrays. SAS drives like this one offer superior performance and reliability compared to standard SATA drives. Visit barcodesinc.com to explore compatible server configurations.

The VeriFone M090-307-04-R is exceptionally durable with laser-etched keys that preserve letters and numbers, and a touch screen using specially hardened glass that resists scratching. The non-mechanical stylus has no moving parts or electronics to fail, making it ideal for heavy-use warehouse and logistics environments.

The phone features a color 3.2-inch QVGA (320 x 240 pixels) backlit LCD graphical display paired with 5-way navigational buttons for menu navigation and four soft-key buttons that dynamically present calling options. The interface supports multiple languages and includes customizable ring tones—seven user-adjustable options are available on this model. Visit barcodesinc.com to explore this phone's full interface capabilities.

The Surface Laptop Go 2 features a 12.4-inch PixelSense touchscreen display with a resolution of 1536 x 1024 pixels. The touchscreen capability provides intuitive interaction for warehouse management systems, inventory applications, and point-of-sale operations.

The Microsoft Surface Laptop Go 2 comes with 4 GB of total RAM and 128 GB of SSD storage, providing adequate capacity for business applications and data management in logistics and warehouse environments. Contact us today to confirm current configuration availability.

The terminal offers Fast Ethernet (10/100BaseT) connectivity along with serial interfaces including RS-232 and RS-485. It also features USB device and host capability, and supports VeriFone multi-port cables with cable sensing for flexible deployment in various network environments.

The Cisco CP-6921 supports 802.3af Power over Ethernet (PoE) for the WAN port and includes deep-sleep mode that saves up to 50% power when the phone is not in active use. This energy-efficient design helps reduce operational costs in large deployments across warehouses and logistics centers. We offer this model with full technical support available through our team.

The Dell 342-2977 operates at 10,000 RPM, delivering fast data access speeds suitable for high-demand applications and database operations. This speed classification makes it an excellent choice for enterprise servers requiring consistent performance. We offer this drive as part of our comprehensive enterprise storage solutions.

The CP-6921 is a two-line model within the Cisco IP Phone 6900 Series, positioned between the single-line 6911 and the four-line 6941 and 6945 models. It shares core features like the full-duplex speakerphone, Ethernet switch capability, and graphical display, but offers a more compact footprint suited for standard desk deployments. Contact us today to compare all available models and find the right fit for your organization's needs.

Yes, the Surface Laptop Go 2 includes Wi-Fi connectivity with Wireless LAN standard support, enabling seamless network access for cloud-based warehouse management systems, inventory tracking, and enterprise applications. This wireless capability is essential for mobile operations in distribution centers and logistics facilities.

The Dell 342-2977 provides 900 GB of storage capacity in a compact 2.5" form factor, making it ideal for space-constrained server environments. This capacity is well-suited for enterprise applications requiring substantial storage without consuming excessive physical space. Contact us today for deployment guidance.

Yes, the VeriFone M090-307-04-R features field-replaceable modules that allow you to add contactless payment capabilities and other emerging technologies without replacing the entire device. This design preserves your investment over time as payment standards evolve.

The Microsoft Surface Laptop Go 2 runs Windows 10 Pro, providing enterprise-grade security, compatibility with business software, and support for point-of-sale and inventory management systems commonly used in warehouse and logistics operations. Visit barcodesinc.com to explore our full selection of Microsoft laptops for your business needs.

The phone supports Cisco Discovery Protocol and IEEE 802.1p/Q for network management, with the ability to designate separate VLANs for the PC and phone to improve security and reliability of voice and data traffic. The 10/100 Ethernet switch port includes 802.3af PoE support, enabling secure power delivery and network connectivity. We provide comprehensive product documentation and support to help you integrate this phone into your existing network infrastructure.

Yes, the Dell 342-2977 is specifically designed for enterprise server and storage applications, featuring SAS interface, 10,000 RPM performance, and hot-swappable capability. Its hybrid design and enterprise-grade specifications make it reliable for mission-critical workloads and data center deployments. We offer this drive as part of our enterprise storage portfolio to support your infrastructure needs.

The VeriFone M090-307-04-R is equipped with a 200 MHz 32-bit processor and 32 MB RAM. It runs Embedded Linux with VeriFone security enhancements on the MX platform, providing reliable performance for payment processing and signature capture applications.

The VeriFone M090-307-04-R Payment Terminal is also known as VFN-M090-307-04R or M09030704R.
