Full specifications (PDF)
Encryption:
- Master/Session
- DUKPT
- Triple DES
VeriFone M090-307-03-R Payment Terminal
Part Number:
M090-307-03-R
Model:
MX830

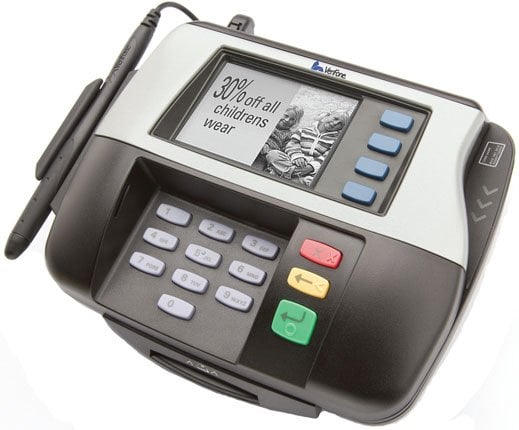

VeriFone MX830 Payment Terminal Model Overview
The VeriFone MX830 Performance Plus payment device is the ultimate solution for multi-lane retail environments. Designed for durability and efficiency, it provides rapid transaction handling and advanced security features. With a user-friendly interface and optional touchscreen capability, the MX830 enhances customer engagement while delivering promotional messages directly to consumers. Its rugged design withstands heavy usage, ensuring reliable performance, while optional upgrades for contactless payments and graphical displays allow retailers to adapt to future demands.
Key Features
- Intuitive interface with recessed keypad for secure PIN entry.
- High-performance processor for efficient handling of transactions.
- Backlit, 16-shade grayscale display to attract consumer attention.
- Modular design to upgrade with contactless payment technology.
- Durable construction with scratch-resistant glass and laser-etched keys.
- Multi-track magnetic card reader for swift and reliable payments.
Specifications
- Processor: 32-bit 200 MHz
- Operating System: Embedded Linux with VeriFone security enhancements
- Memory: 32 MB SDRAM + 32 MB Flash
- Display: 16-shade grayscale, backlit, 14 VGA resolution
- Touch Screen: Optional, with chemically-hardened glass
- Connectivity: USB, Ethernet, Serial Interfaces
- Security: PCI PED approved, EMV Level 1 & 2 compliant, Triple DES encryption
- Dimensions: Compact design for efficient usage

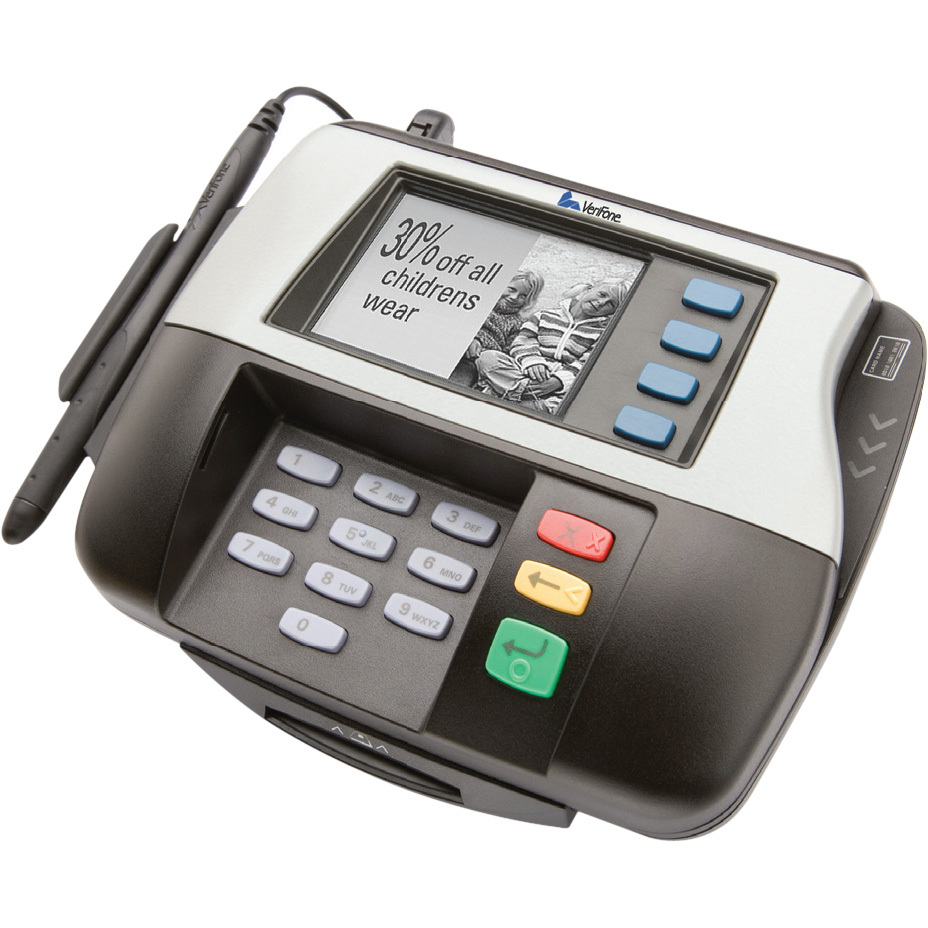

VeriFone M090-307-03-R Payment Terminal Overview
The MX 830 has a familiar intuitive interface and tactile keypad for private PIN entry. More than a PCI PED approved payment system, it helps retailers reach out to consumers with timely, targeted branding and promotional messages on its extremely high-resolution grayscale display. It is the most versatile, economical and durable performer that stands up to heavy use.
Technical Information
Processor & Chipset
Processor Manufacturer:
ARM
Processor Type:
ARM9
Memory
Standard Memory:
32 MB
Flash Memory:
32 MB
Display & Graphics
Display Color:
Monochrome
Screen Mode:
QVGA
Touchscreen:
Yes
Network & Communication
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Serial:
Yes
Built-in Devices
Built-in Devices:
Magnetic Stripe Reader
Keyboard/Keypad
Number of Keys:
17
Software
Operating System:
Linux
Miscellaneous
Additional Information:
- Supports animated graphics to capture consumers' attention for advertising quick grab items and delivering other messages
- Economical, powerful payment device for multi-lane and point-of-service environments
Certifications & Standards:
- PCI PED approved
- EMV Level 1 & Level 2 Type Approvals
- Interac
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
13 Month
Item Numbers
UNSPSC:
43211720
