VeriFone M087-500-01-WWA Payment Terminal
Full specifications (PDF)

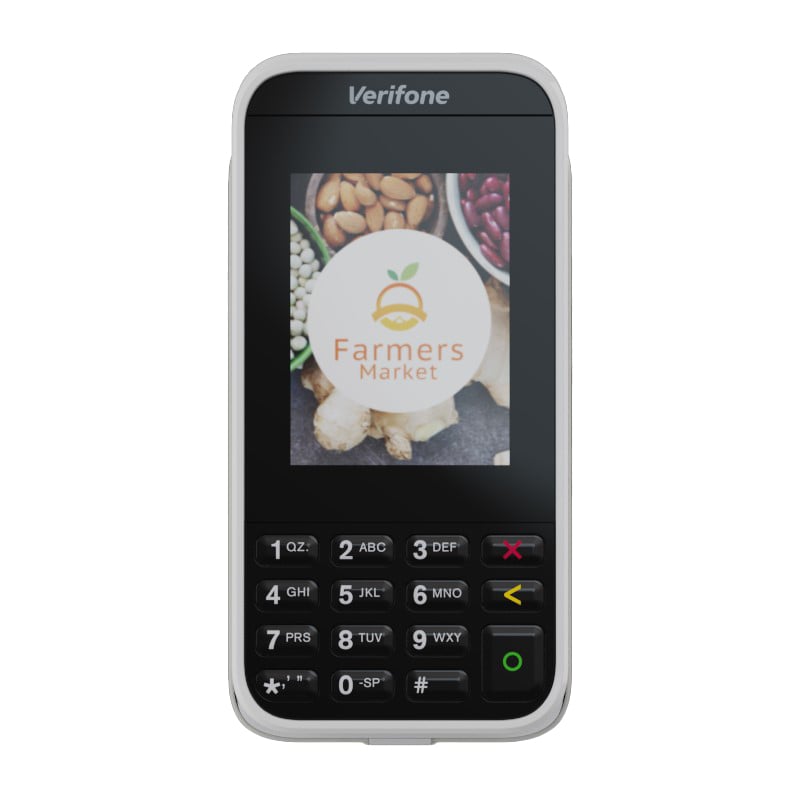

VeriFone e285 Payment Terminal Model Overview
Key Features
- Full-color touch screen display for promotions and customer loyalty
- Accepts multiple payment methods: NFC/CTLS, MSR, EMV, and mobile wallets
- Large field-replaceable battery for extended operation
- Connectivity via USB-C or Bluetooth® pairing
- Part of the Verifone Engage portfolio, harnessing the latest V/OS technology
Specifications
- Display: 2.8" Color LCD, Capacitive Multi-touch, LED Backlight, 240 x 320 QVGA
- Card Readers: Magstripe, Smart Card EMVCO Approved
- Processor: ARM Cortex A9, 300 MHz
- Security: PCI PTS 5.x Approved
- Power: 3.8V, 1800 mAh Li-ion battery; 5V, 1A, USB Type-C charging
- Dimensions: 138mm L x 68mm W x 18mm H
- Weight: 190 g
- Connectivity: Bluetooth® v4.2, WiFi 2.4GHz + 5GHz, Optional 2G + 3G
- Memory: 512MB RAM + 512MB Flash
- Operating System: Verifone Secure OS, Engage VOS2
Frequently Asked Questions
What payment card types does the VeriFone M087-500-01-WWA support?
The M087-500-01-WWA supports multiple smart card solutions including ISO 7816 cards at 1.8V, 3V, 5V, and both synchronous and asynchronous cards with EMV Level 1 and Level 2 Type Approval. It also includes a triple-track magnetic card reader for traditional card payments, providing comprehensive payment method compatibility for retail and hospitality environments.
What security features protect transactions on this VeriFone terminal?
This terminal includes end-to-end SSL and TLS encryption, VeriShield Retain file authentication software for tamper resistance, and protection against unauthorized access. It is PCI approved for debit and PIN-based transactions with EMV Level 1 and Level 2 Type Approval, ensuring cardholder data remains secure throughout the payment process.
Does the VeriFone M087-500-01-WWA have WiFi and Bluetooth connectivity?
Yes, the M087-500-01-WWA model designation includes WiFi and Bluetooth (WWA) connectivity options, enabling flexible deployment in mobile and wireless payment scenarios. This makes it suitable for businesses requiring portable payment processing without being tethered to a fixed network connection.
What is the processor and memory configuration of this payment terminal?
The M087-500-01-WWA is equipped with a 200 MHz ARM9 32-bit RISC microprocessor and 6 MB of memory (4 MB Flash, 2 MB SRAM) as standard, with an optional upgrade to 12 MB (8 MB Flash, 4 MB SRAM). This processing power supports fast transaction times and multiple applications running simultaneously.
What display capabilities does the VeriFone M087-500-01-WWA offer?
The terminal features a 128 x 64 pixel graphical LCD with backlighting that supports 8 lines x 21 characters, providing clear transaction information and customer prompts. The backlit display ensures readability in various lighting conditions typical of retail and hospitality environments.
Does this terminal include a built-in printer?
Yes, the M087-500-01-WWA includes an integrated high-speed thermal printer that speeds overall transaction times from swipe to print, enabling faster customer checkout and receipt generation. This integrated printing capability eliminates the need for separate peripheral devices in point-of-sale installations.
