Unitech PA692 – Mobile Computer – Windows Embedded Handheld 6.5 – 512 MB

Part Number: PA692-9261UMDG
Model: PA692
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
RAM Memory
512 MB
IP Rating
IP65
Interface Options
Bluetooth, Wi-Fi
Operating System
Windows Embedded Handheld 6.5

Product Description:

  Mobile Computer, Unitech PA692, Windows Embedded Handheld 6.5, Bluetooth, Wi-Fi, Standard Range, 1D Laser, 512 MB RAM, 512 MB Flash, IP65, Phone-size, Numeric, USB, Camera, Battery, Power Adapter
Explore all Unitech PA692 Mobile Computers
Add to Quote

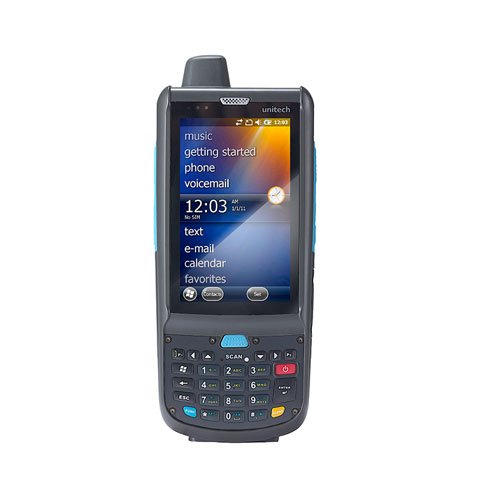

Unitech PA692-9261UMDG Mobile Computer
Unitech PA692-9261UMDG Mobile Computer
Unitech PA692-9261UMDG Mobile Computer Unitech PA692-9261UMDG Mobile Computer
Full specifications (PDF)

Unitech PA692 Mobile Computer Model Overview

The PA692 is a rugged mobile computer that combines the latest 3.75G wireless communication and advanced performance to provide the best data communications in today’s aggressive business environment. PA692 also offers field-based workers with a host of data collection tools and a comprehensive wireless communication platform, all in a compact, durable and ergonomic form factor.PA692 offers an integrated 1D / 2D scanning capability, as well as a HF and UHF RFID reader / writer, GPS, and a high resolution 5.0 megapixel digital camera, combining multiple functions in one compact size which reduces the cost to purchase different devices. Besides, featuring latest NFC communication, PA692 offers convenient short-range communication between electronic devices. It enhances the service levels in ticket tracking, identity asset management applications
Unitech PA692-9261UMDG Mobile Computer Overview

Stay competitive
The PA692 is a rugged mobile computer that combines the latest 3.75G wireless communication and advanced performance to provide the best data communications in today's aggressive business environment. PA692 also o"ers #eld-based workers with a host of data collection tools and a comprehensive wireless communication platform, all in a compact, durable and ergonomic form factor.

Faster and more productive
Powered by industrial grade 1GHz TI AM3715 processor and runs on a $exible Windows Embedded Handheld 6.5 platform, PA692 delivers the faster performance in highly mobile environments. In addition to 512MB NAND Flash and 512 DDR SDRAM to boast ample internal memory, PA692 also supports microSD expansion with an additional 32GB of storage capacity for data-intensive applications.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Barcode Symbology Supported:
1D:
  • UPC-A/E
  • EAN-8/13
  • Codabar
  • Code 39
  • Code 39 full ASCI
  • Code 93
  • Code 32
  • Interleaved & Std. 2 of 5
  • EAN 128
  • Code 11
  • Delta
  • MSI/Plessey
  • Code 128
  • Toshiba
Drop Specification:
59.06"
Processor & Chipset
Processor Manufacturer:
Texas Instruments
Processor Type:
ARM
Processor Speed:
1 GHz
Memory
Standard Memory:
512 MB
Flash Memory:
512 MB
Memory Card Slot:
Yes
Memory Card Supported:
  • microSD
  • microSDHC
Maximum Memory Card Size Supported:
32 GB
Display & Graphics
Screen Size:
3.8"
Screen Mode:
WVGA
Screen Resolution:
800 x 480
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
26
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Bluetooth:
Yes
Antenna Form Factor:
External
Interfaces/Ports
USB:
Yes
Serial:
Yes
Camera
Rear Camera:
Yes
Rear Camera Resolution:
5 Megapixel
Software
Operating System:
Microsoft Windows Embedded Handheld 6.5
Battery Information
Battery Capacity:
2200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
7"
Width:
2.9"
Depth:
1.6"
Weight (Approximate):
13.76 oz
Miscellaneous
Package Contents:
  • Rugged Handheld Computer
  • Battery
Certifications & Standards:
  • CCX4 Compliant
  • IP65
  • CE
  • FCC
  • BSMI
  • VCCI
  • CCC
  • ISO 9001:2000
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0099520890659, 0851295001865
UPC: 099520890659, 851295001865
EAN: 0099520890659, 0851295001865
UNSPSC: 43211715
