Unitech MS690 – Barcode Scanner – 1D

Part Number: MS690WA-0A
Model: MS690
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
1D

Product Description:

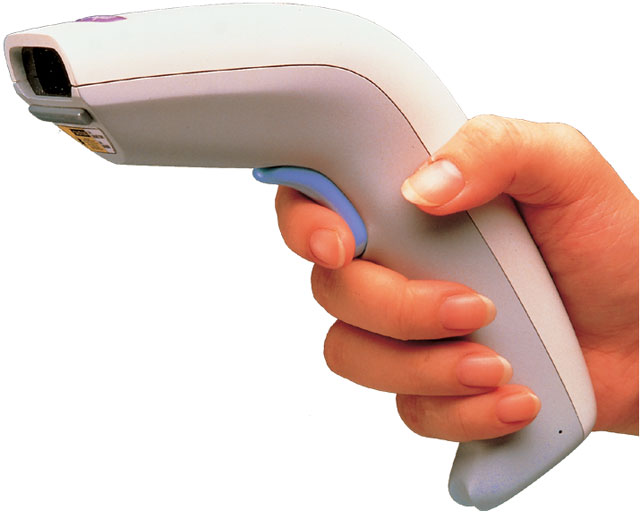

  Unitech MS690 Handheld Bar Code Reader - Wired
Explore all Unitech MS690 Barcode Scanners
Add to Quote
Unitech MS690WA-0A Barcode Scanner
Unitech MS690WA-0A Barcode Scanner
Full specifications (PDF)

Unitech MS690 Barcode Scanner Model Overview

The MS690's high speed scanning, low power consumption and effective depth of field, make it suitable for a wide range of applications.
Unitech MS690WA-0A Barcode Scanner Overview
  • High performance scan engine
  • Superior long reading distance
  • Reads and discriminates commonly used bar code symbologies
  • Adjustable hands-free stand for retail applications
  • Replaceable interface cable
  • Easy to use and configure
  • Advanced Data Editing features
  • Supports configuration cloning through custom bar code labels
Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Code 39
  • Full ASCII Code39
  • Inter leave 2 of 5
  • Standard 2 of 5
  • Code 32
  • MSI/Plessey
  • Italian Pharmacy
  • Codabar
  • Code 11
  • EAN 8/13
  • UPC A/E
  • Code 93
  • Delta Distance code
  • Code1 128
  • China Postal Code
Light Source:
Laser
Scan Rate:
36 scan/s
Maximum Scan Resolution:
5 mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
5.8"
Width:
2.3"
Depth:
5.8"
Weight (Approximate):
5.50 oz
Miscellaneous
Additional Information:
  • Cable: 2m Coiled
  • Undecoded TTL output only

USB Cable separate

Platform Supported:
  • PC
  • Mac
Certifications & Standards:
  • FCC Class A
  • CE
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
