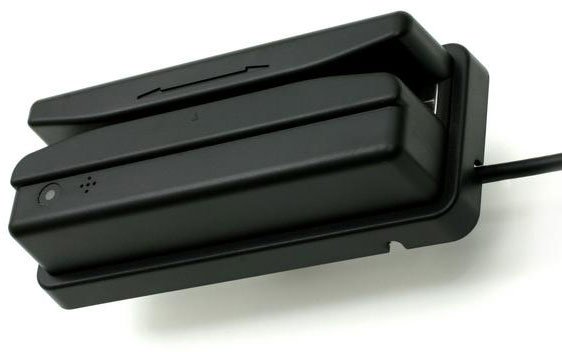

The MS146 Barcode Slot Reader by Unitech is a versatile solution designed for time control, security access, and attendance control applications. Engineered for durability, this device features a sealed optical system housed in an IP54-rated body, ensuring reliable performance even in harsh industrial settings. With a flexible reading angle and high-resolution capabilities, the MS146 is perfect for both desktop and side-mounted applications, making it ideal for locations with varying space requirements.
Key Features
Sealed optical system with IP54 rugged housing for durability
Wide barcode slot for flexible reading angles and higher resolution
Multi-directional installation options for convenience
User-configurable via PC programming
Compatible with all popular devices
Suitable for varying card dimensions and printing qualities
Available interfaces: TTL, keyboard wedge, RS232, and USB
Power Consumption: 35 mA for TTL 5V DC, 70mA for Decoded version
Beep Sound Volume: >70dB
Operating Temperature: 0° to 50°C
Storage Temperature: -20° to 60°C
Humidity: 0% to 95% RH non-condensing
Mechanical Shock: 5 ft. (1.5 m) drop on concrete
Symbologies Supported: Code 39, EAN-13, UPC-A, and more
MS146I-2G Barcode Card Reader Overview
The MS146 family of bar code slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. The MS146 is capable of reading any bar coded identification badge. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment.
What are the key video specifications of the Honeywell HC30WE5R2 camera?
The HC30WE5R2 features a 5MP resolution with a 1/2.7" imager and a 2.8-12mm motorized focal zoom lens. It delivers 120dB wide dynamic range for clear imaging in challenging lighting conditions and includes 2 IR LEDs for reliable night vision performance. The camera supports both H.265 and H.264 video compression standards for efficient bandwidth and storage management.
Is the Honeywell HC30WE5R2 NDAA compliant?
Yes, the HC30WE5R2 is NDAA compliant, making it suitable for federal government and defense-related applications. This certification ensures the camera meets stringent security and sourcing requirements established by the National Defense Authorization Act.
What power options does the HC30WE5R2 support?
The HC30WE5R2 supports dual power inputs: Power over Ethernet (PoE) and 12VDC. This flexible power configuration allows for simplified installation in network environments while maintaining backup power options for critical surveillance applications.
What video analytics and integration standards does this camera support?
The HC30WE5R2 includes built-in video analytics capabilities and supports ONVIF S and G profiles, ensuring broad compatibility with network video management systems and third-party integration platforms. This makes it an excellent choice for enterprise surveillance deployments requiring standardized interoperability.
What makes the HC30WE5R2 suitable for outdoor or challenging environments?
The camera's 120dB wide dynamic range handles extreme lighting variations, while the IR ball design with 2 IR LEDs provides excellent low-light performance. These features, combined with its motorized zoom lens and robust construction, make it ideal for outdoor surveillance, parking areas, and facilities requiring 24/7 monitoring capability.
Where can I purchase the Honeywell HC30WE5R2 and get technical support?
We offer the Honeywell HC30WE5R2 as part of our comprehensive network video recorder and camera solutions. Contact us today at barcodesinc.com or reach out to our team for pricing, availability, technical specifications, and integration support for your surveillance deployment.
The MS146I-2G Barcode Card Reader is also known as
UNI-MS146I2
or MS146I2G.
Full specifications (PDF)
