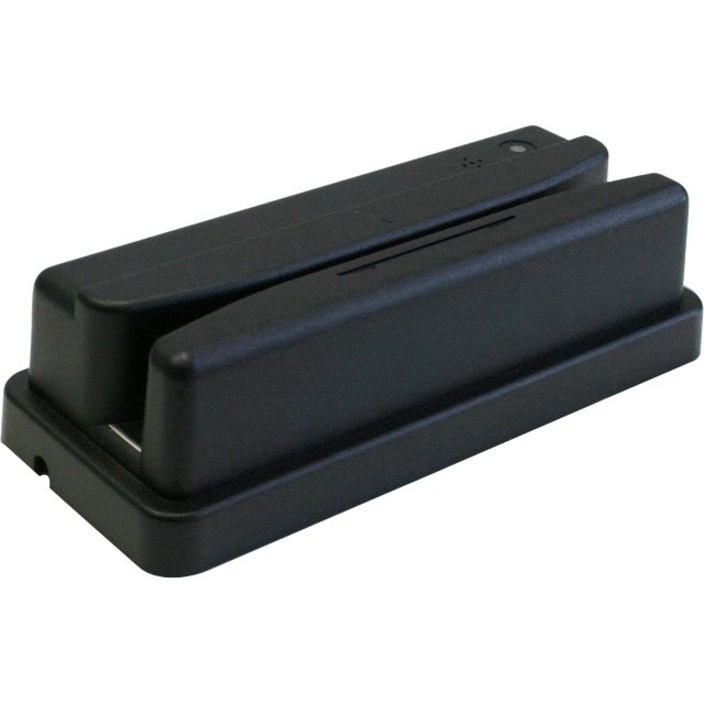

The MS146 Barcode Slot Reader by Unitech is a versatile solution designed for time control, security access, and attendance control applications. Engineered for durability, this device features a sealed optical system housed in an IP54-rated body, ensuring reliable performance even in harsh industrial settings. With a flexible reading angle and high-resolution capabilities, the MS146 is perfect for both desktop and side-mounted applications, making it ideal for locations with varying space requirements.
Key Features
Sealed optical system with IP54 rugged housing for durability
Wide barcode slot for flexible reading angles and higher resolution
Multi-directional installation options for convenience
User-configurable via PC programming
Compatible with all popular devices
Suitable for varying card dimensions and printing qualities
Available interfaces: TTL, keyboard wedge, RS232, and USB
The MS146 barcode card reader is designed for time and attendance, security, and access control applications that use badges, cards, or forms.
Target Markets / Applications
The MS146 reader is versatile enough to fit applications across the board. It can read ID cards for check-in, check-out, and access control. The infrared MS146 reads barcodes that have been secured by black panels to prevent photocopying.
Libraries
Library Cards
Check-in/Check-out
Fitness Centers
Access Control
Time / Attendance
Features
Maximum Versatility
The MS146 barcode card reader is easy to integrate into your business. With a large reading slot, the MS146 is a suitable solution for cards of many different sizes and widths. Multiple interface options and an infrared model ensures that there's an MS146 perfectly suited for your business. Mount the MS146 to a wall or desktop for easy access. The reader is multidirectional, making installation that much easier.
Durable
With the MS146 you can rest assured knowing you've made a lasting investment. The high-quality sealing on the optical system protects the device from dust, dirt, and even water spills. The MS146 is at home in industrial settings, enduring repeated use and exposure to hazards without wearing out or degrading in any way.
Powerful Performance
The MS146 reads 2-27 inches per second at a high resolution and with a flexible reading angle. Advanced data editing is available on this device, enabling you to tailor your solution to your exact needs.
What barcode symbologies does the Unitech MS146 support?
The MS146 supports a comprehensive range of 1D barcode symbologies including Codabar, Code 11, Code 32, Code 39 (Standard and Full ASCII), Code 93, Code 128, Delta Code, EAN-8, EAN-13, Label Code IV and V, MSI Code, Plessey Code, Standard 2 of 5, UPC-A, and UPC-E. This makes it ideal for reading identification badges and other barcoded materials across various industries.
What resolution can the MS146 achieve?
The Unitech MS146 offers a resolution of up to 6 mils (0.15 mm), making it capable of reading fine barcode details on identification badges and other barcoded materials with high accuracy.
How does the infrared version of the MS146 differ from the visible light version?
The infrared units of the MS146 ensure accurate reading of both visible and laminated badges, providing superior performance when reading through lamination or protective overlays. This makes the infrared version particularly useful in environments where badge protection is required.
What connectivity options are available for the MS146?
We offer the MS146 with USB interface connectivity, which provides convenient integration with modern computer systems. The USB connection also enables keyboard wedge functionality for seamless data entry into applications.
Is the MS146 suitable for harsh or wet environments?
Yes, the MS146 features a water resistant base, rugged housing, and IP54 rated sealing that make it well-suited for demanding environments. The sealed optical system provides protection against dust and moisture while maintaining reliable performance.
What is the expected lifespan of the MS146's reading components?
The MS146 is built for durability with a magnetic head life of a minimum of 1,000,000 passes, and rail and cover life of 1,000,000 passes minimum. This ensures reliable long-term operation in high-volume badge reading applications. Contact us today to learn more about availability and support options.
The Unitech MS146-IRCB00-SG Credit Card Reader is also known as
UNI-MS146-IRCB00-SG
or MS146IRCB00SG.
Full specifications (PDF)
