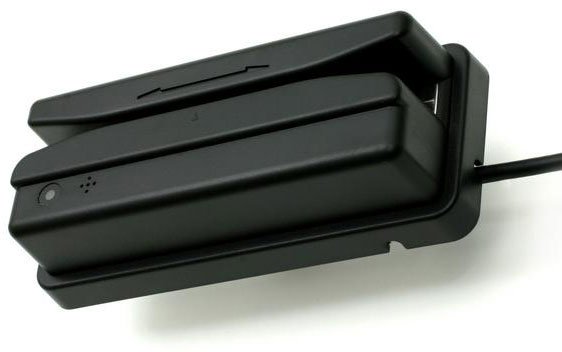

Unitech MS146-2G Barcode Card Reader

Unitech MS146-RRCB00-SG Credit Card Reader A newer version of this item is available.
It is replaced by the Unitech MS146-RRCB00-SG Credit Card Reader.
Unitech MS146 - Unitech MS146 Slot Bar Code Reader - Wired - Photo Diode
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • LED aimer is a perfect choice for patient-facing applications
Read More

Need a different version? See all Unitech MS146 Barcode Card Readers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Unitech MS146-2G Barcode Card Reader
Unitech MS146-2G Barcode Card Reader Unitech MS146-2G Barcode Card Reader Unitech MS146-2G Barcode Card Reader Unitech MS146-2G Barcode Card Reader
Unitech MS146-2G Barcode Card Reader
Unitech MS146-2G Barcode Card Reader
Unitech MS146-2G Barcode Card Reader

Full specifications (PDF)
Unitech MS146 Barcode Card Reader Model Overview
The Unitech MS146 barcode slot reader is a flexible, cost effective solution when reliability is essential. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any barcoded identification badge. The MS146's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. The convenient USB interface, water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment.
Unitech MS146-2G Barcode Card Reader Overview

The MS146 Slot Bar Code Reader is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS146 Slot Bar Code Reader is capable of reading any bar coded identification badge.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 (full ASCII)
  • Code 39 (Standard)
  • Code 93
  • Code 128
  • Delta Code
  • EAN-8 with add-on code
  • EAN-13 with add-on code
  • EAN 128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI / Plessey
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with add-on code
  • UPC-E with add-on code
Light Source:
LED
Maximum Scan Resolution:
6 mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Height:
1.3"
Width:
2.1"
Depth:
5"
Weight (Approximate):
6.70 oz
Miscellaneous
Additional Information:

6 ft RS232 Serial Data Cable

USB Cable separate

Platform Supported:
PC
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Unitech MS146-2G Barcode Card Reader is also known as UNI-MS1462 or MS1462G.
