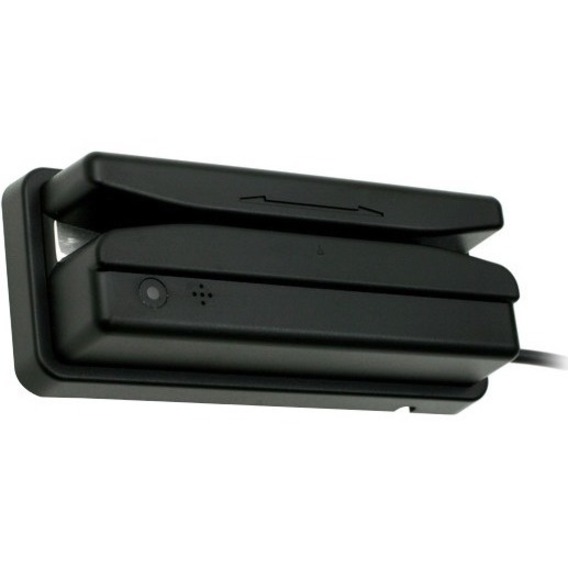

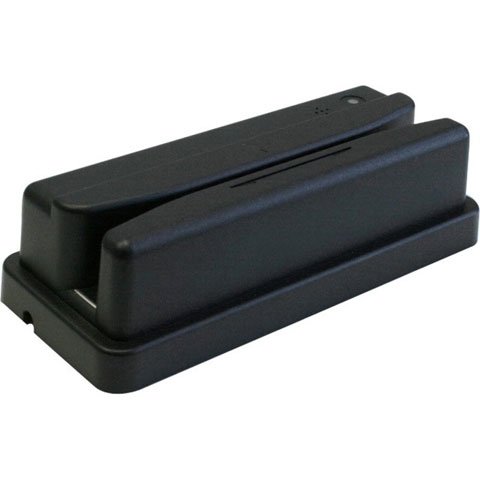

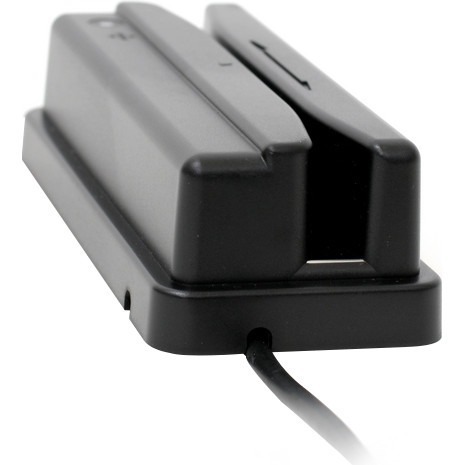

The MS146 Barcode Slot Reader by Unitech is a versatile solution designed for time control, security access, and attendance control applications. Engineered for durability, this device features a sealed optical system housed in an IP54-rated body, ensuring reliable performance even in harsh industrial settings. With a flexible reading angle and high-resolution capabilities, the MS146 is perfect for both desktop and side-mounted applications, making it ideal for locations with varying space requirements.
Key Features
Sealed optical system with IP54 rugged housing for durability
Wide barcode slot for flexible reading angles and higher resolution
Multi-directional installation options for convenience
User-configurable via PC programming
Compatible with all popular devices
Suitable for varying card dimensions and printing qualities
Available interfaces: TTL, keyboard wedge, RS232, and USB
The MS146 barcode card reader is designed for time and attendance, security, and access control applications that use badges, cards, or forms.
Target Markets / Applications
The MS146 reader is versatile enough to fit applications across the board. It can read ID cards for check-in, check-out, and access control. The infrared MS146 reads barcodes that have been secured by black panels to prevent photocopying.
What barcode symbologies does the Unitech MS146 support?
The Unitech MS146 supports a comprehensive range of 1D barcode symbologies including Codabar, Code 11, Code 32, Code 39 (Standard and Full ASCII), Code 93, Code 128, Delta Code, EAN-8, EAN-13, Label Code IV and V, MSI Code, Plessey Code, Standard 2 of 5, UPC-A, and UPC-E. This versatility makes it suitable for reading barcoded identification badges across multiple industries and applications.
What connectivity options are available for the MS146 credit card reader?
The Unitech MS146 offers multiple interface options including PS/2, RS232, TTL, and USB connectivity. The model available from us comes with an RS-232 cable, making it easy to integrate into existing systems. This flexibility allows you to choose the connection method that best fits your infrastructure.
What is the resolution and reading capability of the MS146?
The MS146 features a resolution of up to 6 mils (0.15 mm), enabling it to accurately read any barcoded identification badge. The sealed optical system is available in both visible light and infrared options, with infrared units ensuring accurate reading of visible and laminated badges in various lighting conditions.
How durable is the MS146 for long-term use?
The MS146 is built with a rugged ABS plastic housing and IP54 rated sealing, making it water resistant and suitable for demanding environments. The magnetic head and rail/cover components are rated for a minimum of 1,000,000 passes each, ensuring reliable long-term performance. The device comes with a 1-year warranty.
What are the power requirements for the Unitech MS146?
The MS146 operates on 5 Volts DC ±10% power supply. For the RS232 version, a 5 VDC/350mA power adapter is required (sold separately). USB and keyboard versions consume approximately 40mA, while the keyboard interface uses about 30mA, making it efficient for integration into various systems.
What are the operating and storage temperature ranges for the MS146?
The Unitech MS146 operates reliably in temperatures from 32° to 131° F (0° to 55° C) and can be stored in temperatures ranging from -22° to 158° F (-30° to 70° C). It also maintains performance in humidity levels from 0% to 95% RH non-condensing, making it suitable for diverse warehouse and logistics environments. Contact us today to ensure this reader meets your specific environmental requirements.
The Unitech MS146-RRCB00-SG Credit Card Reader is also known as
UNI-MS146RRCB00SG
or MS146RRCB00SG.
Full specifications (PDF)
