The MS120 series barcode wands are targeted toward low reading volume and cost effective solutions. The advanced optics and electronic design convert barcode labels into a high quality digital signal.
Unitech MS120-NTCB00-SG Barcode Scanner Overview

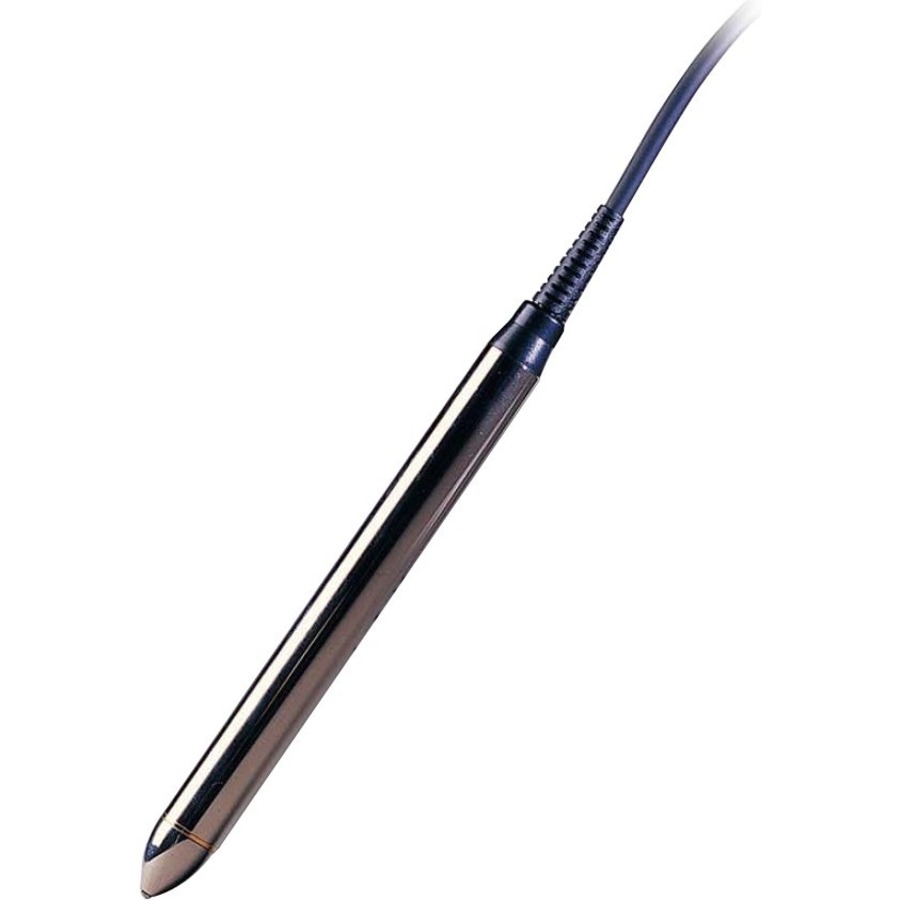

The MS120 series bar code wand is targeted toward low reading volume and cost effective solutions. The advanced optics and electronic design convert bar code labels into a high quality digital signal. Able to read color, faded and low contrast bar codes quickly and accurately, the MS120 is a proven solution. The polished sapphire tip reduces wear on labels and is also easily replaced if damaged. Its shape gives the MS120 the comfort and handling of a normal ink pen. Just sweep the tip of the wand across the bar code in either direction and listen for the "good read" beep that lets you know the data has been successfully captured.
What barcode symbologies does the Unitech MS120 scanner support?
The MS120 supports a wide range of standard 1D barcode formats including UPC/EAN/JAN, Code 39, Codabar, ITF 2/5, Code 128, Code 11, Code 93, and MSI. This makes it compatible with most common barcode labeling standards used in warehouse and retail environments.
What are the scan speed and reading angle specifications for the MS120?
The MS120 delivers a high scan speed of 5 to 200 cm/sec with a wide read angle of 0 to 45 degrees, allowing operators flexibility in how they position the scanner relative to barcode labels. This combination of speed and angle coverage makes it suitable for general-purpose scanning applications.
What interface options are available for the Unitech MS120?
We offer the MS120 in multiple interface configurations: keyboard wedge with DIN or PS/2 connectors, RS232 with DB9 connector, and undecoded with DB9 Squeeze & Release connector. Choose the interface that best matches your existing system infrastructure.
Is the MS120 durable for warehouse environments?
Yes, the MS120 features a durable, replaceable sapphire tip that withstands repeated use in demanding environments. The wand design combined with its replaceable tip makes it a cost-effective solution for low to moderate reading volume operations.
What are the power requirements for the MS120 barcode scanner?
The MS120 operates on 5 VDC ± 0.5V with low power consumption during operation (60mA), making it efficient for continuous scanning tasks. Some RS232 models may require an optional 5V AC adapter depending on your connection method.
What operating temperature range does the MS120 support?
The MS120 operates reliably in environments from 0°C to 50°C (32°F to 122°F) with 10% to 85% relative humidity (non-condensing). This temperature range covers standard warehouse and indoor retail conditions.
The Unitech MS120-NTCB00-SG Barcode Scanner is also known as
UNI-MS120NTCB00SG
or MS120NTCB00SG.
Full specifications (PDF)
