Unitech MS100 – Barcode Scanner – 1D

Part Number: MS100-4G
Model: MS100
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

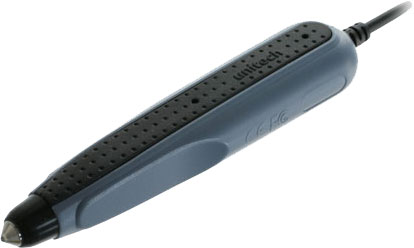

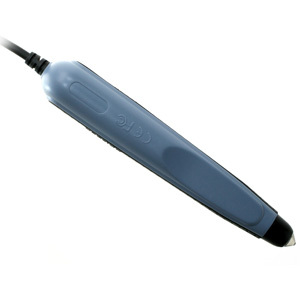

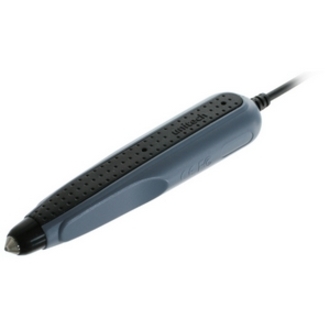

  Unitech MS100 Bar Code Wand Reader - Wired - Photo Diode
Explore all Unitech MS100 Barcode Scanners
Add to Quote
Unitech MS100-4G Barcode Scanner
Unitech MS100-4G Barcode Scanner
Unitech MS100-4G Barcode Scanner
Unitech MS100-4G Barcode Scanner
Unitech MS100-4G Barcode Scanner
Unitech MS100-4G Barcode Scanner Unitech MS100-4G Barcode Scanner Unitech MS100-4G Barcode Scanner Unitech MS100-4G Barcode Scanner

Full specifications (PDF)

Unitech MS100 Barcode Scanner Model Overview

The Unitech MS100U Wand Scanner is an ideal solution for low reading volume environments where cost-effectiveness is key. Designed with advanced optics and electronic components, this scanner converts bar code labels—including faded and low-contrast ones—into high-quality digital signals. Its ergonomic shape allows for effortless handling, making it easy to sweep across bar codes in either direction. With its lightweight design, low power consumption, and quick reading capabilities, the MS100U is the perfect tool for efficient data collection.
Key features:
  • Rugged, lightweight design
  • Easy to use and configure
  • USB interface
  • Low power consumption
  • High scan speed
  • 1-year warranty

Specifications:
  • Optical:
    • Light Source: 650nm Red LED
    • Resolution: 5 mils (0.127mm)
    • Depth of Field: 0.04" (1.0mm)
    • Scan Rate: 24 inches/sec (10 - 60 cm/sec)
    • Reading Angle: 45 to 90°
    • Print Contrast Ratio: 0.6 minimum
  • Mechanical:
    • Dimensions: 5.5 Inches (140mm) length, 1.2 x .9 Inches (30 x 23mm)
    • Weight: 76g
    • Case Material: ABS plastic
  • Electrical:
    • Supply Voltage: 5V DC ±10%
    • Surge Power: < 500mA
    • Working Current: 60mA ±10mA
  • Decoder Symbologies:
    • UPC-E, UPC-A, EAN-8, EAN-13, JAN
    • Code 39, Code 128, Interleaved 2 of 5, Industrial 2 of 5
    • ABC Codabar, Telepen, and more
  • Environmental:
    • Operating Temperature: 32 to 122°F (0 to 50°C)
    • Storage Temperature: -4 to 140°F (-20 to 60°C)
    • Humidity: 0% to 95% RH non-condensing
Unitech MS100-4G Barcode Scanner Overview

The MS100 Bar Code Wand Reader Scanner is targeted toward low reading volume / cost effective solutions. The advanced optics and electronic design converts bar code labels into a high quality digital signal. Able to read color, faded, and low contrast barcodes quickly and accurately, the MS100 is a proven solution. Its shape gives the MS100 the comfort and handling of a conventional ink pen. Just sweep the tip of the wand across the bar code in either direction and listen for the "good read" beep that lets you know the data has been successfully captured. It doesn't get easier than that.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 Full ASCII
  • Code 39
  • Code 93
  • Code 128
  • Delta Code
  • EAN-13 with Add-on Code
  • EAN-128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI/PLESSEY
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with Add-on Code
  • UPC-E with Add-on Code
  • EAN-8 with Add-on Code
  • ISBT 128
Light Source:
LED
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1mm
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Wand
Color:
  • Blue
  • Black
Weight (Approximate):
2.70 oz
Miscellaneous
Package Contents:
  • MS100 Bar Code Wand Scanner
  • 6ft USB Cable
Additional Information:

6 ft USB Cable

USB Cable separate

Certifications & Standards:

RoHS Compliant

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0853585462899, 5060193401485
UPC: 853585462899
EAN: 0853585462899, 5060193401485
UNSPSC: 43211701
