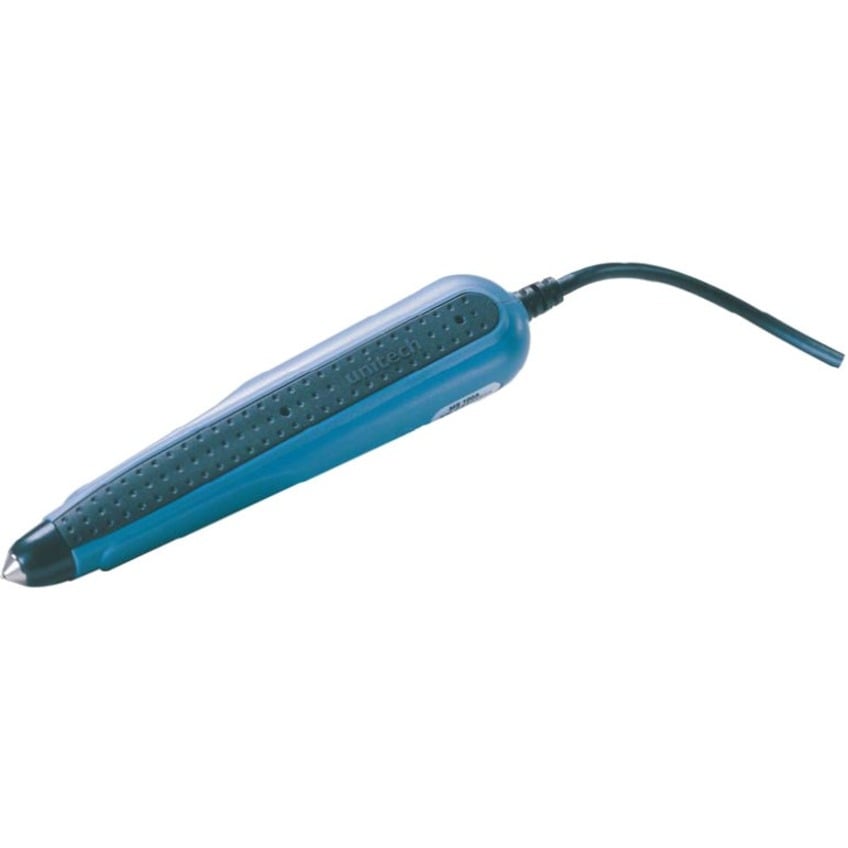

The Unitech MS100U Wand Scanner is an ideal solution for low reading volume environments where cost-effectiveness is key. Designed with advanced optics and electronic components, this scanner converts bar code labels—including faded and low-contrast ones—into high-quality digital signals. Its ergonomic shape allows for effortless handling, making it easy to sweep across bar codes in either direction. With its lightweight design, low power consumption, and quick reading capabilities, the MS100U is the perfect tool for efficient data collection. Key features:
Rugged, lightweight design
Easy to use and configure
USB interface
Low power consumption
High scan speed
1-year warranty
Specifications:
Optical:
Light Source: 650nm Red LED
Resolution: 5 mils (0.127mm)
Depth of Field: 0.04" (1.0mm)
Scan Rate: 24 inches/sec (10 - 60 cm/sec)
Reading Angle: 45 to 90°
Print Contrast Ratio: 0.6 minimum
Mechanical:
Dimensions: 5.5 Inches (140mm) length, 1.2 x .9 Inches (30 x 23mm)
Weight: 76g
Case Material: ABS plastic
Electrical:
Supply Voltage: 5V DC ±10%
Surge Power: < 500mA
Working Current: 60mA ±10mA
Decoder Symbologies:
UPC-E, UPC-A, EAN-8, EAN-13, JAN
Code 39, Code 128, Interleaved 2 of 5, Industrial 2 of 5
ABC Codabar, Telepen, and more
Environmental:
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0% to 95% RH non-condensing
Unitech MS100-NUCB00-SG Barcode Scanner Overview
The MS100 is a wand/pen barcode scanner, an ergonomic and compact device best suited for low-volume applications.
It's likely that a wand barcode scanner such as the MS100 offers the best form factor for your application. As the least expensive type of barcode scanner in the market, there's a lot to be said about the lasting value of a wand barcode scanner.
What type of barcode scanner is the Unitech MS100?
The Unitech MS100 is a corded barcode wand scanner designed for cost-effective, low-volume barcoding applications. It features a 1D LED laser beam and connects via USB, making it ideal for general-purpose scanning tasks where a tethered solution is acceptable.
How do I use the Unitech MS100 barcode wand?
The MS100 is designed with a pen-like shape for comfortable handling. Simply drag the tip of the wand across the barcode in either direction, and the scanner will emit a "good read" beep to confirm successful data capture. The advanced optics and electronic design convert barcode labels into high-quality digital signals.
What connectivity options does the Unitech MS100 offer?
The Unitech MS100 connects via USB and is a tethered (corded) scanner, making it suitable for stationary workstations and fixed scanning stations. This wired connection ensures reliable, continuous power and data transmission without battery concerns.
Is the Unitech MS100 suitable for my warehouse operation?
The Unitech MS100 is an excellent choice for low-volume barcoding applications and general-purpose scanning environments. Its cost-effective design and reliable 1D laser scanning make it ideal for warehouse managers looking for a dependable, budget-friendly scanning solution. Contact us today to determine if it fits your specific operational needs.
What barcode formats can the Unitech MS100 read?
The Unitech MS100 is a 1D barcode scanner, meaning it reads one-dimensional barcode formats such as Code 128, UPC, EAN, and other standard linear barcodes. Its advanced optics ensure accurate reading of these barcode types across various label qualities.
Where can I purchase the Unitech MS100 barcode scanner?
We offer the Unitech MS100 barcode scanner as part of our comprehensive AIDC product lineup. Visit barcodesinc.com or contact us today to check availability, pricing, and to discuss whether this scanner meets your warehouse or logistics requirements.
The Unitech MS100-NUCB00-SG Barcode Scanner is also known as
UNI-MS100NUCB00SG
or MS100NUCB00SG.
Full specifications (PDF)
