PP795-NM0DKD0UB-DCP Credit Card Reader

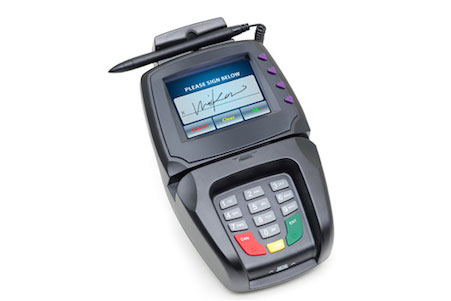

The UIC PP795SE is a cutting-edge PCI Approved Secure Countertop PINPad Reader, designed to enhance payment processing in retail and financial applications. This compact and cost-effective payment terminal features high-performance signature capture, along with integrated magnetic stripe and optional smart card and contactless reading capabilities. With an user-friendly ergonomic design and advanced security technology, the PP795SE ensures a seamless transaction experience for both you and your customers.

Key Features:

• Multiple Payment Options: Accepts magnetic stripe, smart card, and contactless payments.
• Programmable Functionality: Easily download applications for gift card issuance, loyalty programs, and customer authentication.
• Advanced Security Technology: Certified PCI 3.0, EMV L1 & L2 for superior data protection.
• User-Friendly Design: Ergonomic layout with a high-resolution TFT touch screen for enhanced usability.
• Integrated Ethernet: Enables fast and reliable network connectivity.

Specifications:

• Mechanical:
  • Dimensions: L 218 x W 122 x H 61 (mm)
  • Weight: 600g
• Electrical:
  • Processor: 32-bit processor with MMU
  • Memory: 16MB or 32MB Flash (Option), 16MB SDRAM, 128KB SRAM with battery backup
  • Touch Screen: 3.5" LCD panel 320x240 pixels with backlight
  • Keypad: 10 numerical keys, 3 function keys, 4 programmable function keys
• Environmental:
  • Operating Temperature: 0°C to 40°C, Humidity 10 to 90%
  • Storage Temperature: -18°C to 70°C, Humidity 10 to 90%
• Security:
  • PCI 3.0 approved for on-line and off-line transactions
  • EMV Level 1 and Level 2 certified
• Performance:
  • Magnetic Card Operating Speed: 10 IPS to 40 IPS
  • Smart Card Support: 3V and 5V card types
  • Encryption Methods: TDES, RSA, AES, MAC, and SHA-1
  • Magnetic Head Life: 1,000,000 swipes
