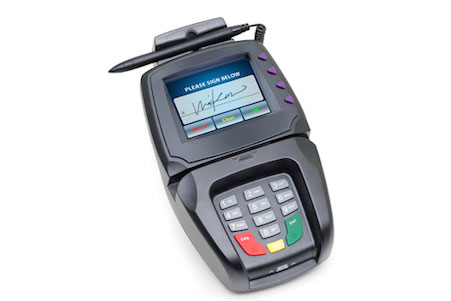

UIC PP795SE Signature Pad
UIC PP795SE -
The PP795SE is a highly secure PCI approved PINpad payment reader that also includes high-performance signature capture in a small, cost-effective package. With integrated magnetic stripe and optional smart card and contactless readers, the PP795SE is designed for flexibility of to read any type of cashless payment transaction. Features including multiple payment options, user-friendly ergonomic design, advanced security technology makes PP795SE the ideal solution for any retail or financial applications.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$358.21
Questions? Get help from
a POS Expert!
a POS Expert!
UIC PP795SE Signature Pad Options
-
PP795-NM0DKD0UB-DCP Credit Card Reader
PP795, RS232, SIGNATURE CAPTURE, MSR, SERIAL, WITH CABLE AND POWER SUPPLY$358.21
UIC PP795SE Signature Pad Model Overview
The UIC PP795SE is a cutting-edge PCI Approved Secure Countertop PINPad Reader, designed to enhance payment processing in retail and financial applications. This compact and cost-effective payment terminal features high-performance signature capture, along with integrated magnetic stripe and optional smart card and contactless reading capabilities. With an user-friendly ergonomic design and advanced security technology, the PP795SE ensures a seamless transaction experience for both you and your customers.
Key Features:
Specifications:
Key Features:
- Multiple Payment Options: Accepts magnetic stripe, smart card, and contactless payments.
- Programmable Functionality: Easily download applications for gift card issuance, loyalty programs, and customer authentication.
- Advanced Security Technology: Certified PCI 3.0, EMV L1 & L2 for superior data protection.
- User-Friendly Design: Ergonomic layout with a high-resolution TFT touch screen for enhanced usability.
- Integrated Ethernet: Enables fast and reliable network connectivity.
Specifications:
- Mechanical:
- Dimensions: L 218 x W 122 x H 61 (mm)
- Weight: 600g
- Electrical:
- Processor: 32-bit processor with MMU
- Memory: 16MB or 32MB Flash (Option), 16MB SDRAM, 128KB SRAM with battery backup
- Touch Screen: 3.5" LCD panel 320x240 pixels with backlight
- Keypad: 10 numerical keys, 3 function keys, 4 programmable function keys
- Environmental:
- Operating Temperature: 0°C to 40°C, Humidity 10 to 90%
- Storage Temperature: -18°C to 70°C, Humidity 10 to 90%
- Security:
- PCI 3.0 approved for on-line and off-line transactions
- EMV Level 1 and Level 2 certified
- Performance:
- Magnetic Card Operating Speed: 10 IPS to 40 IPS
- Smart Card Support: 3V and 5V card types
- Encryption Methods: TDES, RSA, AES, MAC, and SHA-1
- Magnetic Head Life: 1,000,000 swipes
