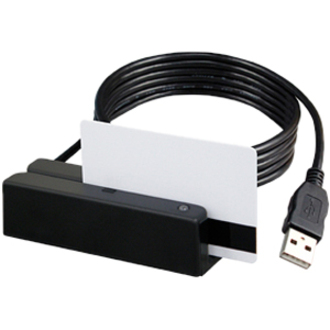

UIC MSR213V-12AKNR Credit Card Reader

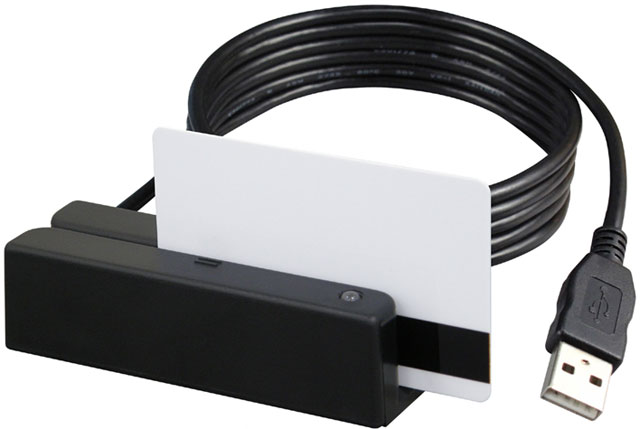

The USB Magnetic Stripe Card Readers from the MSR120 and MSR210U series provide seamless data conversion for magnetic stripe cards, making them ideal for various applications. With easy connectivity via USB, these readers ensure reliable read capabilities for ISO 7811 and AAMVA compliant cards. The MSR120 offers a straightforward manual swipe feature, whereas the MSR210U enhances functionality with programmable output and multi-language support. Both models are designed for durability and efficiency, making them perfect for both high and low coercivity magnetic stripes.

Key Features:

• User-Friendly USB Interface: Easy plug-and-play setup for quick integration.
• Firmware Downloadable: Keep your reader updated with the latest features.
• Bi-Directional Swiping: Supports manual swipes in both directions.
• LED and Beeper Indicators: Provides clear reading status feedback.
• Multi-Language Support: Available on the MSR210U for versatile applications.

Specifications:

• Electrical Specifications:
• Power Requirement: +5VDC±10% from USB Port
• Power Consumption: MSR120 - 100mA Max, MSR210U - 35mA Max
• Interface: USB (MSR120 - emulated RS232, MSR210U - emulated Keyboard)
• Mechanical:
• Body Material: ABS 94V-0
• Dimensions: 100L x 34W x 28H mm
• Weight: Approx. 120g
• Connector: USB Type A plug
• Card Handling:
• Method: Manual swipe, bi-directional
• Card Types: Magnetic cards as per ISO7810, 7811, AAMVA (single, dual, or triple stripe)
• Read Capability: Low/high coercivity (300-4000 Oe)
• Operating Environment:
• Operation Temperature: -10°C to +50°C
• Storage Temperature: -30°C to +70°C
• Humidity: 10% to 90% (both operation and storage)
