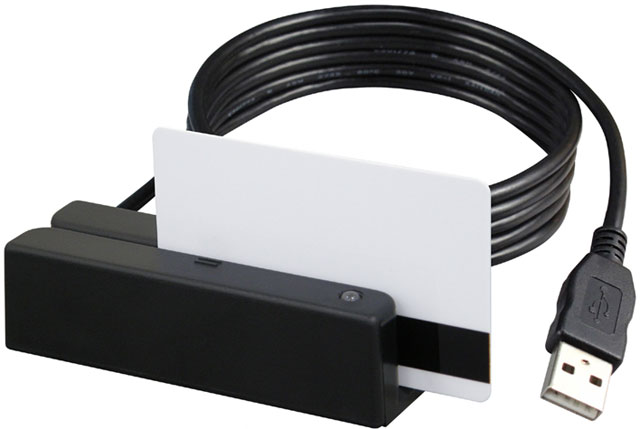

UIC MSR213V Credit Card Reader

UIC MSR213V  -  The MSR213V was specifically designed for retail, time keeping, security and other card reader related systems. The MSR213V communicates with a host computer via USB interface, and reads and converts magnetic stripe data to USB (Virtual COM). It is a manual swipe, bi-directional reader that supports both high and low coercivity magnetic stripes (300 - 4000 Oe) reading. It has built-in capability for firmware download and LED and beeper for reading status. It is reliable for over a million swipes and it fully conforms to FCC Class B, CE Class B, RoHS.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$53.96
Questions? Get help from
a POS Expert!

What is your POS application?

UIC MSR213V Credit Card Reader
UIC MSR213V Credit Card Reader

Category

UIC MSR213V Credit Card Reader Options

Full specifications (PDF)

UIC MSR213V Credit Card Reader Model Overview

The USB Magnetic Stripe Card Readers from the MSR120 and MSR210U series provide seamless data conversion for magnetic stripe cards, making them ideal for various applications. With easy connectivity via USB, these readers ensure reliable read capabilities for ISO 7811 and AAMVA compliant cards. The MSR120 offers a straightforward manual swipe feature, whereas the MSR210U enhances functionality with programmable output and multi-language support. Both models are designed for durability and efficiency, making them perfect for both high and low coercivity magnetic stripes.


Key Features:

  • User-Friendly USB Interface: Easy plug-and-play setup for quick integration.
  • Firmware Downloadable: Keep your reader updated with the latest features.
  • Bi-Directional Swiping: Supports manual swipes in both directions.
  • LED and Beeper Indicators: Provides clear reading status feedback.
  • Multi-Language Support: Available on the MSR210U for versatile applications.

Specifications:

  • Electrical Specifications:
    • Power Requirement: +5VDC±10% from USB Port
    • Power Consumption: MSR120 - 100mA Max, MSR210U - 35mA Max
    • Interface: USB (MSR120 - emulated RS232, MSR210U - emulated Keyboard)
  • Mechanical:
    • Body Material: ABS 94V-0
    • Dimensions: 100L x 34W x 28H mm
    • Weight: Approx. 120g
    • Connector: USB Type A plug
  • Card Handling:
    • Method: Manual swipe, bi-directional
    • Card Types: Magnetic cards as per ISO7810, 7811, AAMVA (single, dual, or triple stripe)
    • Read Capability: Low/high coercivity (300-4000 Oe)
  • Operating Environment:
    • Operation Temperature: -10°C to +50°C
    • Storage Temperature: -30°C to +70°C
    • Humidity: 10% to 90% (both operation and storage)
