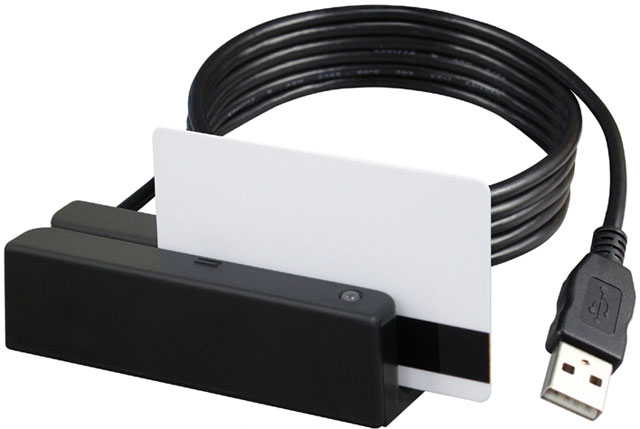

MSR120D-12ABNR Credit Card Reader

Part Number: MSR120D-12ABNR
Model: MSR120
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Magnetic Stripe Track Configuration
Dual Track
Magnetic Stripe Track Number
Track 1Track 2
Minimum Swipe Speed
5 in/s
Maximum Swipe Speed
55 in/s

Product Description:

  MSR reader, Swipe type, USB interface, dual tracks 1&2, Beige, buzzer/LED
Explore all MSR120 Credit Card Readers
Add to Quote
MSR120D-12ABNR Credit Card Reader
MSR120D-12ABNR Credit Card Reader
MSR120D-12ABNR Credit Card Reader MSR120D-12ABNR Credit Card Reader
Full specifications (PDF)

MSR120 Credit Card Reader Model Overview

The MSR120 is ideal for retail systems, time keeping systems, security systems and other card reader related systems. The MSR120 is designed to offer the user a card reader solution that will complement many applications. Triple track of MSR120 is uniquely designed to read both credit cards and Driver Licenses (AAMVA and California standard).
MSR120D-12ABNR Credit Card Reader Overview

The MSR120D USB Magnetic Card Reader is ideal for retail systems, time keeping systems, security systems and other card reader related systems. The MSR120D is designed to offer the user a card reader solution that will complement many applications.

Full specifications (PDF)
Technical Information
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
Minimum Swipe Speed:
5 in/s
Maximum Swipe Speed:
55 in/s
Number of Swipes (Head Life):
500
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Beige
Height:
1.1"
Width:
1.3"
Length:
3.9"
Weight (Approximate):
4.23 oz
Miscellaneous
Certifications & Standards:
  • FCC Class B
  • CE Class B
  • Taiwan BSMI
  • ISO 7811
    • Environmentally Friendly:
    Yes
    Item Numbers
    UNSPSC: 43211702
    The MSR120D-12ABNR Credit Card Reader is also known as MSR120D12ABNR
